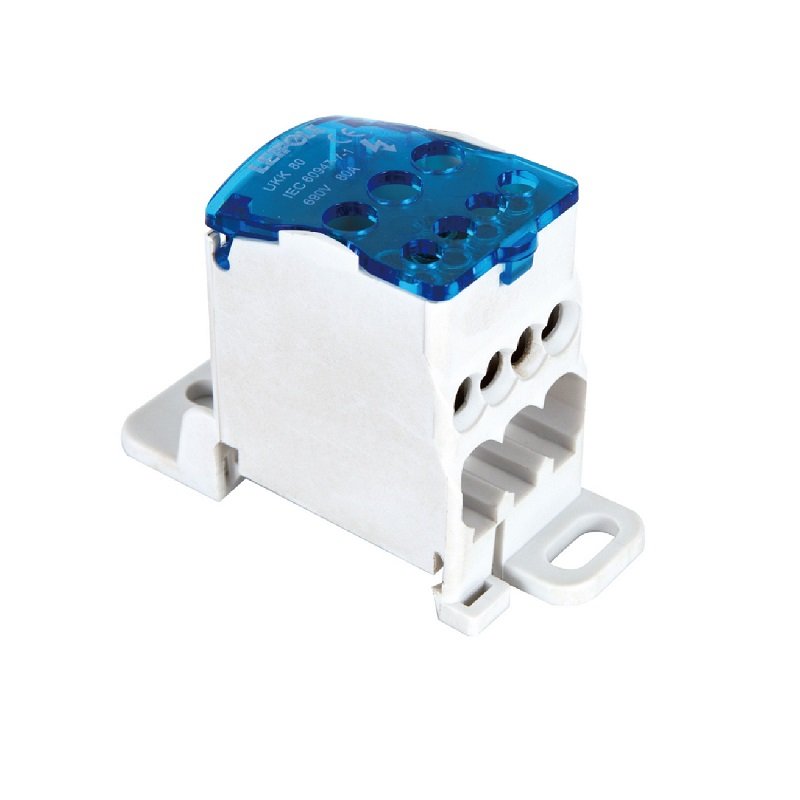

LEIPOLE UKK 80A Power Distribution Block, Industrial Electrical Connection, 80A
LEIPOLE UKK 80A power distribution block with CE certification, IP20 rating, and 80A rated current. It supports multi-range wiring, jumper parallel connection, and standardized installation for industrial electrical distribution.
- Part number: UKK 80A
- Order code: 5012.006
Product Overview
The LEIPOLE UKK 80A is a professional power distribution block designed for safe and reliable electrical connection and branching in industrial control panels and electrical enclosures. It conforms to IEC 60947-7-1 and UL/CSA standards, providing stable performance for low-voltage power distribution systems.
Key Specifications
This power distribution block is CE certified with IP20 ingress protection. It has a rated current of 80A (IEC 60947-7-1) and 85A (UL/CSA). Icw KA rms 1s is 3kA, IPk KA is 22kA, rated insulation voltage Ui is 690V (IEC), and rated operating voltage Vin is 600V (UL). The installation hole measures 54mm for standardized mounting.
Key Features & Advantages
- Supports multiple wiring configurations: metric 6…16mm² (×1), 2.5…6mm² (×4), 2.5…16mm² (×2) with matched torque values
- Compatible with AWG wiring standards for North American application scenarios
- Allows parallel connection using jumper wires while retaining one input
- Supports neutral line doubling or tripling for flexible circuit layout
- Modular structure for stable and organized power distribution
Installation & Wiring
The unit comes with a 54mm installation hole for quick and fixed mounting. It provides clear wiring specifications for both metric and AWG cables, with defined torque requirements to ensure secure connections. Jumper wires can be used to connect multiple blocks in parallel for expanded wiring capacity.
Applications
The UKK 80A power distribution block is widely used for power branching and connection in industrial electrical enclosures, automation control panels, power distribution cabinets, and electrical equipment assemblies.
| Model | UKK 80A |
| Certification | CE |
| IP Rating | IP20 |
| Order Number | 5012.006 |
| Rated Current (IEC/UL) | I=80A IEC 60947-7-1, I=85A UL/CSA |
| Impulse withstand voltage (Ui) | 690V IEC |
| Insulation voltage (Vin UL) | 600V UL |
| Rated short-time withstand current (Icw kA rms 1s) | 3 |
| Rated peak withstand current (IPk kA) | 22 |
| Installation Hole | 54mm |
| Special Feature | Blocks can be connected in parallel using jumper, easily double or triple the neutral |
