Overview

Leipole Enclosure Lighting offers efficient LED solutions which widely used in industrial cabinets, including power distribution, control cabinet, and electrical enclosures. These lights offers great advanced LED technology to deliver energy efficiency, long-lasting performance. They strictly apply to industrial electrical enclosure lamp standards and are ideal for low-voltage power distribution, automation systems, and data centers ensuring safe and efficient operation and maintenance.

Key advantages

High brightness & low energy consumption

– LED has 60% lower energy consumption compared to traditional lighting.

Long lifespan & durability

– LED lights have long lasting lifespan with can last over 50,000 hours.

Flexibility installation

– Compatible with LED strip enclosures, options between magnetic or screw mounting.

IP54 protection

– Suitable for industrial cabinets and high protection in harsh environment

Automatic operation

– Optional for door switches and motion sensors enhance efficiency.

Models & specifications

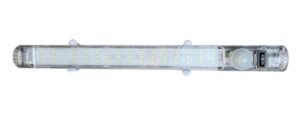

Enclosure light 8W 100lm

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Model Order number input voltage LED Efficacy color temperature protection rating
48 Kiva 08/07/2025 05:34 AM Kiva 08/07/2025 05:34 AM PLF-350L-8W1 9017.023 DC 24V AC 100~245V 100lm/W 6000K-7000K IP20
54 Kiva 08/07/2025 05:35 AM Kiva 08/07/2025 05:35 AM PLF-350L-8W2 9017.024 DC 24V AC 100~245V 100lm/W 6000K-7000K IP20
55 Kiva 08/07/2025 05:36 AM Kiva 08/07/2025 05:36 AM PLF-350L-8W3 9017.025 DC 24V AC 100~245V 100lm/W 6000K-7000K IP20
56 Kiva 08/07/2025 05:36 AM Kiva 08/07/2025 05:36 AM PLF-350L-8W4 9017.026 DC 24V AC 100~245V 100lm/W 6000K-7000K IP20

Applications

  • Industrial control & power distribution cabinets

    – Provides clear lighting and removable for easy maintenance.

  • Server cabinets & data centres

    – High brightness lighting to prevent operational errors.

  • Renewable energy & rail transit equipment

    – Designed for dustproof and shockproof environments.

Basic knowledge

What are Enclosure Lights?

LEIPOLE LED Enclosure lights are used for internal illumination in power distribution cabinets, improving visibility and operational safety.

How to Choose the Right Enclosure Light ?

  1. Light source

    – Opt for LED for energy efficiency and longevity.

  2. Installation –

    Choose between magnetic, screw or motion-sensing options.

  3. Protection level

    – Select IP54 or higher for industrial use.

1. Purpose Beyond Illumination

  • Inspection & Troubleshooting: Proper LED enclosure light placement prevents shadows behind wiring, reducing diagnostic errors by up to 40%.

  • Safety Compliance: OSHA and CE regulations require minimum luminance levels inside panels; low-quality lamps often fail certification checks.

2. Mounting & Layout Secrets

  • Avoid Hotspots: Position fixtures to eliminate glare and hotspots. A combination of LED enclosed fixtures on the top and LED strip light enclosures along sidewalls delivers even light distribution.

  • Snap-in vs. Screw-in: Enclosure lamps with snap-in brackets speed up retrofit projects—no panel drilling—while screw-in fixtures provide stronger vibration resistance in mobile applications.

3. Thermal & Environmental Considerations

  • Heat Management: High-output LEDs generate heat; choose fixtures with integrated aluminum heat sinks. Overlooking this leads to early lumen depreciation and color shift.

  • Ingress Protection: For wash-down or outdoor cabinets, only trust fixtures rated IP65 or higher. A seemingly sealed LED enclosure light can leak through lens-to-housing gaps if gaskets aren’t UV-stable.

4. Color Rendering & User Comfort

  • High CRI Importance: Standard CRI > 90 LEDs ensure true-color rendering—essential when reading wire insulation or status LEDs. Cheaper lights (CRI < 80) cause eye fatigue and misinterpretation of indicator colors.

  • Neutral vs. Cool White: 4000 K neutral white mimics daylight without the “clinical” feel of 6000 K cool white, improving technician focus during long service calls.

5. Power & Control Integration

  • 24 V vs. 120 V Models: Low-voltage enclosure lights reduce shock risk during maintenance but require a separate power rail.

  • Smart Controls: Modern LED enclosed fixtures support DALI or built-in motion sensors for energy savings—lights turn on only when the panel door opens.

6. Maintenance & Lifecycle Tips

  • Modular LED Strips: Use led strip light enclosure channels with replaceable LED modules—when one section fails, swap only that segment instead of the entire fixture.

  • Cleaning & Inspection: Regularly check lens clarity; even slight haze from dust or chemicals reduces output by 20%. Use non-abrasive cleaning to preserve gasket integrity.

Frequently asked questions

Q1: How long does led enclosed fixture last?

A1: Up to 50,000 hours, depending on environmental conditions.

Q2: Are there multiple mounting options?

A2: Yes, including screw and magnetic mounting.

Q3: What is the protection level?

A3: IP44, suitable for most industrial environments.

How do you install a DIN rail mount enclosure light LED?

Snap the DIN rail mount enclosure light LED onto a standard TS 35 or TS 32 rail inside your cabinet. Wire the light to your 24 V or 120 V supply, secure with the built-in clip, and route the cable neatly along the rail.

Why choose an IP65 LED enclosure light for outdoor cabinets?

An IP65 LED enclosure light for outdoor cabinets offers full dust protection and water-jet resistance, ensuring reliable illumination in wash-down areas or unprotected external installations.

What advantages does a 24V LED enclosure light with motion sensor offer?

A 24V LED enclosure light with motion sensor automatically turns on when you open the door, saving energy and improving safety—no manual switching is needed during maintenance.

How does a compact low-profile enclosure light for control panels improve usability?

The compact low-profile enclosure light for control panels fits into tight spaces without blocking components. Its slim design provides even lighting for wiring checks and adjustments in cramped cabinets.

When is a high CRI enclosure LED light for visual inspection essential?

Use a high CRI enclosure LED light for visual inspection when accurate color rendering is critical—such as checking wire insulation colors or reading RGB status LEDs on modules. High CRI (>90) ensures true-to-life illumination.
