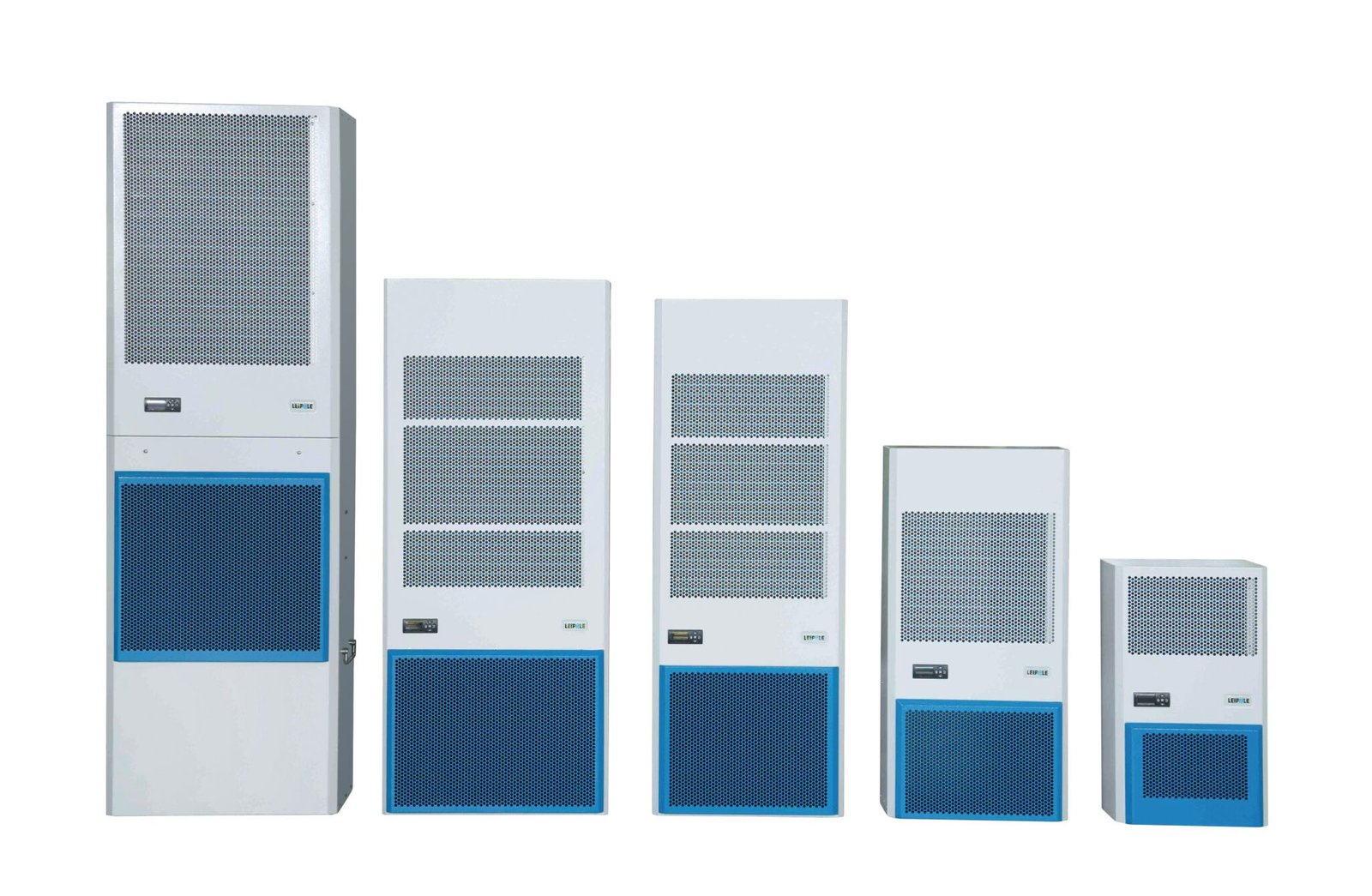

Leipole enclosure air conditioner FULL series LP500N-1 LP1500N-1

Product Overview

Advanced Enclosure Cooling for Industrial Cabinets – Enclosure Air Conditioners

We provide effective and precise temperature control solutions, designed for the ever more popular industrial electrical cabinets and also has a division where control cabinets and communication cabinets are offered. They prevent the electronic components from overheating, and ensure stable operation of the equipment, extending service life.

Key Advantages

✅57L high-efficiency refrigeration & intelligent temperature control

To maintain efficient and stable operation of the equipment, aiming at precision temperature control technology.

✅Energy saving and low noise

An advanced compressor and fan system, effective energy saving and reducing noise.

✅IP54 protection rating

Dustproof and splashproof, ideal for rough industrial conditions.

✅Remote intelligent monitoring

Up to RS485 & Modbus communication protocols are available for remote monitoring and control.

✅R134a environmental refrigerant

Green environmental protection, consistent with global environmental standards.

Product Catagories

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Model Order number Cooling capacity Nominal voltage Nominal capacity Dimension mm
38 LP500N-1 2027.001 500W, 1705BTU/h 220V/50Hz/60Hz (L35/L35) 210W, (L35/L55) 260W 315*175*546
39 LP1000N-1 2027.002 1000W, 3412BTU/h 220V/50Hz/60Hz (L35/L35) 440W, (L35/L55) 600W 381*793*163
40 LP1500N-1 2027.003 1500W, 5118BTU/h 220V/50Hz/60Hz (L35/L35) 650W, (L35/L55) 820W 412*1112*170
41 LP3000N-1 2027.004 3000W, 10236BTU/h 220V/50Hz/60Hz (L35/L35) 1300W, (L35/L55) 1650W 485*1150*220
42 LP4000N-1 2027.005 4000W, 13650BTU/h 220V/50Hz/60Hz (L35/L35) 1725W, (L35/L55) 1840W 485*1510*306
43 LP030-A2Q 2027.006 Evaporation system 220V/50Hz/60Hz 500W 362*130*60

Applications

used in many industries for the efficient and stable operation of equipment:

🔧 Industrial automation & production equipment – control cabinet temperature management to prevent overheating of equipment

⚡ Power system & substation – safeguard power equipment & enhance grid stability

🔋 EV charging station & inverter – may temperature control for DC charging piles and battery storage systems

💾 Data center & server cabinet – keep IT equipment running stable in a low temperature environment

📡 Communication base station & network equipment — Outdoor communication cabinet temperature control solution

Basic Knowledge

🔍 What is an Enclosure Air Conditioner？
Air conditioning units for electrical enclosures work in closed loop by circulating refrigerant (typically R134a) to absorb heat from the inside the electrical enclosure and emit it to the outside, allowing the unit to control temperatures very closely.
📏 Selecting the Best Enclosure AC Units?When buying an air conditioning system, the following factors should be kept in mind:● Cooling capacity (W) — High heat dissipation capacity to prevent equipment overheating

● Type of Installation — Side, Top, Embedded, Various Cabinets

● Communication protocol — Do you require remote monitoring (RS485/Modbus)

● Protection Grade (IP54/IP55) – Import the industrial environment.

Why Choose Leipole?

💎 Certified quality & reliability – UL, CE, and RoHS certified for global standards

🚀 International Supply & Super Fast Shipping – Singapore & worldwide warehouses

🔬 Research & Testing – Our lab runs tests to ensure performance & endurance

🌱 Energy Saving & Eco Friendly – Low Power Consumption with super high airflow

Customization Process

Accurate Demand Analysis

Professional engineers deeply understand your equipment parameters, application environment, and special requirements.

Customized Technical Solutions

R&D teams develop optimal heat dissipation solutions based on your needs, including airflow calculations and installation planning.

 Sample Testing and Validation

Provide samples for real-environment testing, collect data feedback, and ensure solution effectiveness.

Mass Production

After confirming the solution, production follows strict ISO9001 quality management systems to ensure batch stability.

FAQ

🔹 Question 1: how to choose the right cooling capacity?💡 A: Small electric cabinet can be selected within 500W-1000W, for the medium control cabinet, can be selected of 1000W-2000W, and the large cabinet recommended 3000W-4000W. For more technical support, please contact us.🔹 Q2: Can I use an electric cabinet air conditioner outdoors?💡 A: Some models have IP55 rating, can work stably in outdoor environment, but pay attention to avoiding extreme weather.🔹 Q3: Support remote monitoring?

💡 A: Yes, the high-end models have RS485 &Modbus protocol, which can also access Industrial Internet of Things (IIoT), remote temperature control management.

🔹When should cabinet air conditioning units be used?

💡Cabinet air conditioning units are used when passive cooling or fans are not enough. They’re ideal for heat-sensitive electronics in sealed or high-temperature enclosures.

🔹What makes an enclosure air conditioner different from a standard AC?

💡An enclosure air conditioner is built for industrial cabinets. It provides closed-loop cooling, protects against dust and humidity, and ensures stable internal temperatures.

🔹Can an AC enclosure work in both indoor and outdoor environments?

💡Yes, a well-rated AC enclosure with IP or NEMA protection can be installed indoors or outdoors, depending on the model and environmental requirements.

🔹How do I choose the right outdoor air conditioner enclosure?

💡When selecting an outdoor air conditioner enclosure, consider cooling capacity, IP rating, mounting type, and ambient temperature range for reliable performance in harsh conditions.
