Enclosure Heating with Thermostat

Product Overview

Prevent condensation and maintain a stable temperature with the Leipole enclosure heater with thermostatLeipole Enclosure Heaters with Thermostat offer accuracy in the temperature control, keeping a constant temperature inside the electrical enclosure heater, protecting vulnerable electronic components in high moisture or cold environments. Such heaters are used to keep the equipment stable in low temperature or high humidity environment, such as: control cabinets, electrical cabinets, industrial chassis, outdoor communication devices and so on.

Key Advantages

✅ Prevent condensation & prolong equipment life – for anti condensation heater for panel and anti condensation heater for motor

✅ Smart temperature control – Enclosure heater with thermostat for automatic temperature regulation to ensure safe operation of equipment

✅ Multi-voltage availability – Offering 24V enclosure heater, 480V enclosure heater, enclosure heaters 120V and more.

✅ Energy-saving design – PTC components with low power consumption to improve energy efficiency and reduce power consumption

✅ Easy install & compact structure – Fits small enclosure heater with thermostat requirements

Product Catagories

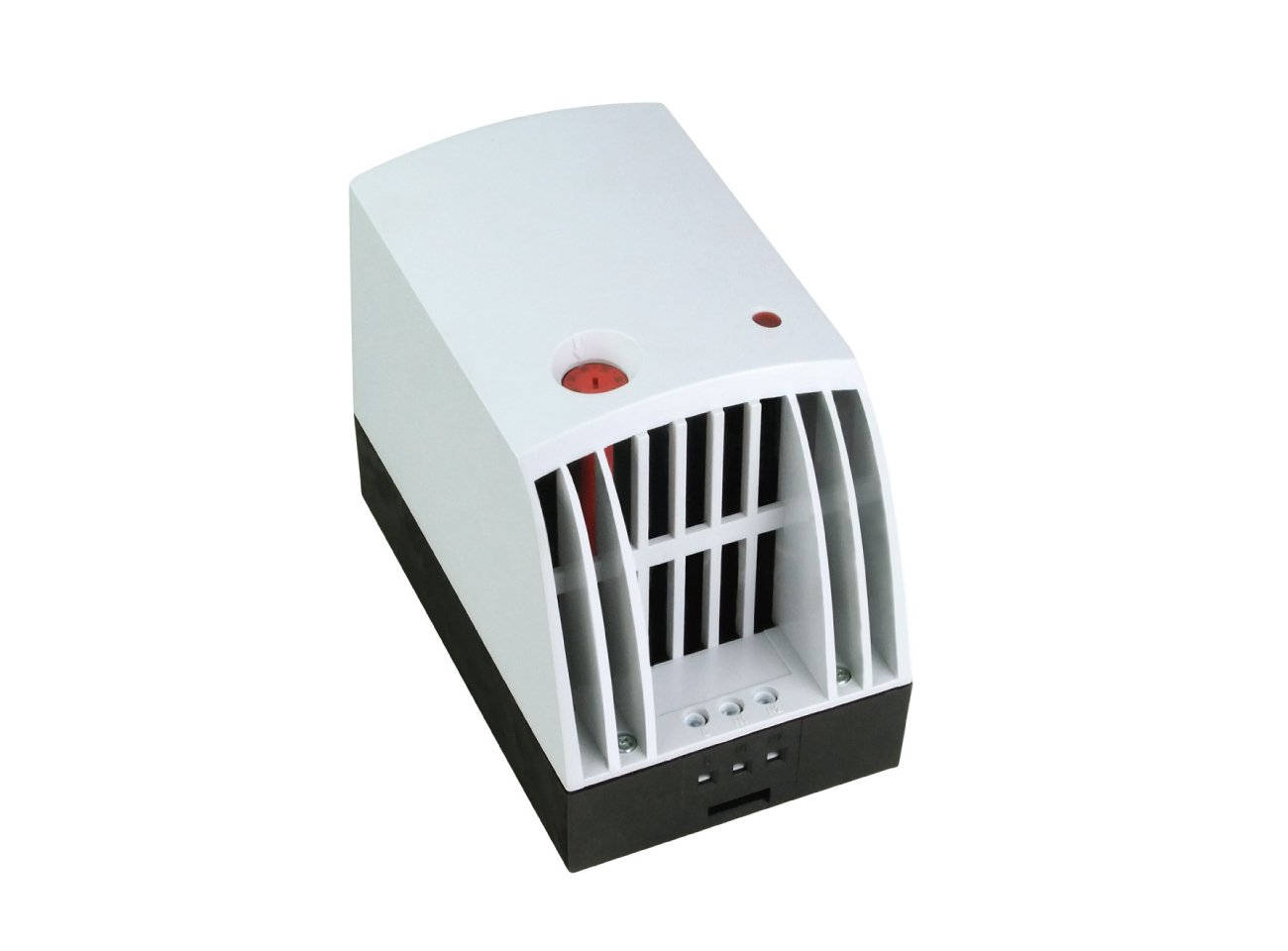

Electrical enclosure heater with thermostat JRQFS650BA

Heating element: PTC resistor – temperature limiting
Temperature Safety Cut-Out: Protects against overheating in case of fan failure; automatic reset
Axial Fan: Ball bearing with a service life of 50,000 hours at 25°C (77°F)
Connection: 2-pole clamp, 2.5 mm², clamping torque 0.8 Nm (max)
Casing: Plastic compliant with UL94 V-0, light grey
Mounting: 35 mm DIN rail, EN 60715
Fitting Position: Vertical airflow (air outlet up) – other fitting positions possible
Operating / Storage Temperature: -45°C to +70°C (-49°F to +158°F)
Protection Class: IP20

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	Model	Order number	Operating voltage	Heat load (W)	Inrush current max	Fuse 230VAC/120VAC	Airflow (m³)	Weight (kg)
41					JRQFS650BA	2020.015	220-240VAC 50/60Hz	400-410W/630-670W	13A	8A	45m3/h	0.35

Anti condensation heater with thermostat JRQFS800BAT

Heating Element: PTC
Axial Fan: Ball bearing airflow 160m³/h, service life 50,000h at 25°C (77°F)
Connection: 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max.
Casing: Plastic according to UL94 V-0, black
Mounting: Clip for 35mm DIN rail, EN 60715 or screw fixing (M6)
Fitting Position: Vertical airflow (air outlet up) – other fitting positions possible
Dimensions: 182×160×120mm
Operating / Storage Temperature: -45°C to +70°C (-49°F to +158°F)
Operating / Storage Humidity: Max. 90%RH (non-condensing)
Protection Class: IP20

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	Model	Order number	Operating voltage	Heat load (W)	Inrush current max	Fuse 230VAC/120VAC	Weight (kg)
41					JRQFS800BAT	2020.017	220-240VAC 50/60Hz	760-840W	13A	8A	1.3
42					JRQFS1000BAT	2020.019	220-240VAC 50/60Hz	950-1050W	13A	8A	1.3

Applications

🏭 Industrial control cabinets & photocells cabinet for low voltage distribution cabinet – electrical enclosure heater to prevent moisture damage

🔌 New energy & battery storage solutions

😄 Enclosure heater with thermostat protects temperature sensitive componentry

❄ Outdoor communication equipment & transportation systems – ensure heated enclosure operates in extremely cold environments

🏢 Data centers & commercial cabinets – for 24V DC enclosure heater power supply systems

Basic Knowledge

👀 What is Enclosure Heater with Thermostat?Enclosure Heating with Thermostat Enclosure heating with thermostat can keep electrical cabinets, control cabinets, datacabinets in low temperature environment at stable temperature, so that equippment can’t condensate and moisture.

❗ How to Select an Enclosure Heater?

● Power & Voltage – Select 24V enclosure heater or 230V enclosure heater based on device specifications

● Heating style – Select PTC or fan heating for better heat dissipation

● Temperature control – Verify that the enclosure heater with thermostat provides automatic temperature control

Why Choose Leipole?

As a professional buyer, do you face these challenges?

❌ Delivery delays – affecting project progress and production line stability

❌ Poor technical adaptability – standard products cannot meet complex working conditions

❌ High hidden costs – frequent maintenance, excessive energy consumption, slow after-sales response

❌ Compliance risks – lack of international certification leads to customs clearance and warranty disputes

Leipole is proud to offer one-stop solution:

💎 Global layout, zero delivery delays

R&D and sales headquarter led by the team in Singapore – cutting-edge cooling technology iteration to ensure product leadership
Manufacturing base in Shanghai, China – ISO 9001 & ISO14001 certified, cost optimization + high quality control standards
Localized warehousing in 24 countries – spot shipments from the EU, America, and Southeast Asia, urgent orders arrive within 3 days

🔧 Deep customization capabilities to solve complex needs

OEM/ODM full-case support – from cooling structure design to branding customization, 100+ successful cases (Industrial Automation/ New Energy Industry/Data Centers)
Working condition simulation test – Free simulation of air volume, high temperature, high humidity and vibration environment to ensure 100% adaptability of the solution

🌍 Worry-free compliance, global access

Authoritative certification – CE, UL, RoHS, REACH full coverage, hassel-free customs clearance in Europe, America and Southeast Asia

🚀 Cost optimization throughout the entire life cycle

Energy consumption reduced by 30% – patented airflow design, saving 30% in electricity bills per year compared to peer product
1-year warranty – redundant design of key components, failure rate <0.2%
7×24 localized service – 50+ national technical teams, 4-hour response, direct supply of spare parts.

Customization Process

Accurate Demand Analysis

Professional engineers deeply understand your equipment parameters, application environment, and special requirements.

Customized Technical Solutions

R&D teams develop optimal heat dissipation solutions based on your needs, including airflow calculations and installation planning.

Sample Testing and Validation

Provide samples for real-environment testing, collect data feedback, and ensure solution effectiveness.

Mass Production

After confirming the solution, production follows strict ISO9001 quality management systems to ensure batch stability.

FAQ

🔹 Q1: What voltages are your Enclosure Heaters rated at?

Q: 24V enclosure heater, 230V enclosure heater, enclosure heaters 115V can be customized as required.

🔹 Q2: Do these heaters work well in humid environments?

💡 A: Yes yes, moisture-proof is a common characteristic of our dehumidifier for motor and moisture-proof heater for panel.

🔹Why use an enclosure heater with a built-in thermostat?

💡It automatically regulates temperature to prevent overheating or condensation, ensuring equipment operates within safe limits.

🔹How does an anti-condensation heater with thermostat help in outdoor cabinets?

💡It maintains internal temperature above dew point, avoiding moisture buildup and protecting sensitive electronics.

🔹Can I install a DIN rail mount enclosure heater in a small control panel?

💡Yes, compact DIN rail models are ideal for tight spaces and quick integration into existing control systems.

🔹What’s the advantage of using a PTC heater with thermostat control?

💡PTC heaters self-regulate their output and, when combined with a thermostat, offer precise and energy-efficient heating.

🔹Are IP65 enclosure heaters with thermostats suitable for industrial environments?

💡Absolutely—they’re protected against dust and water ingress, ideal for harsh or outdoor industrial applications.
