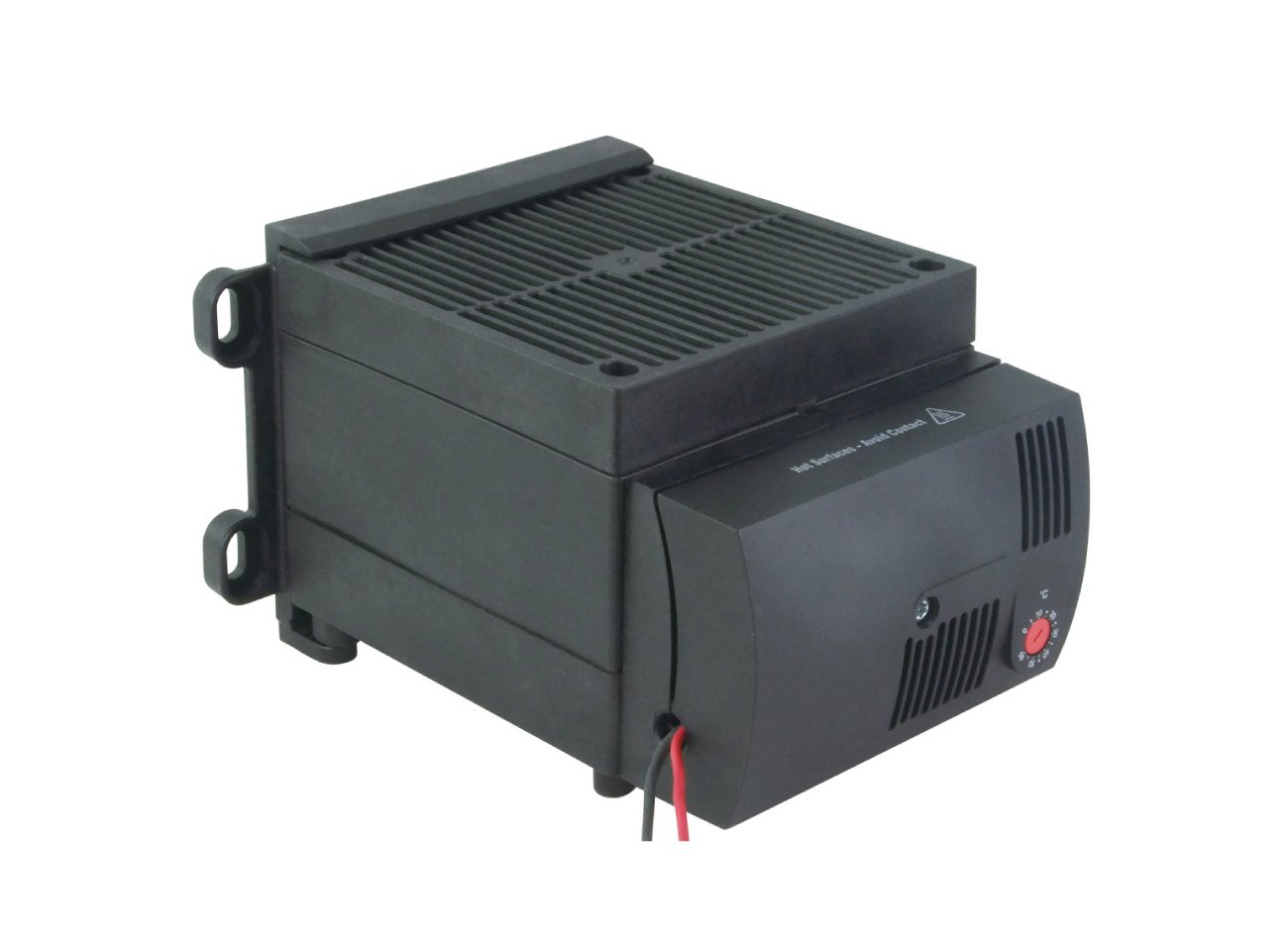

LEIPOLE JRQFS1000BAT PTC cabinet heater with fan, IP20, DIN rail mount, thermostat control, prevents condensation and frost for large industrial enclosures

LEIPOLE JRQFS1000BAT PTC Fan Heater, 1000W, IP20, DIN Rail Mount, Anti-Condensation

LEIPOLE JRQFS1000BAT 1000W high-power PTC fan heater with adjustable thermostat, IP20, DIN rail mount; delivers efficient heating to prevent condensation, frost and low-temperature faults in large industrial enclosures.

  • Part number: JRQFS1000BAT
  • Order code: 2020.019
Add to cart

Product Overview

LEIPOLE JRQFS1000BAT is a high-power PTC fan heater with built-in thermostat, designed for efficient heating in large electrical enclosures. It provides powerful and uniform heat distribution to eliminate condensation, frost, and low-temperature faults, ensuring stable and safe equipment operation in harsh industrial environments.

Key Features & Advantages

  • Built-in self-limiting PTC heating core for safe, stable and energy-saving operation.
  • Integrated axial fan for fast and even heat distribution throughout the cabinet.
  • Equipped with adjustable thermostat for intelligent temperature control.
  • IP20 protection level and UL94 V0 flame-retardant material ensure industrial safety.
  • Standard 35mm DIN rail installation for quick and convenient setup.
  • Robust structure for long-term use in high-demand industrial environments.

Technical Specifications

Adopts self-limiting temperature PTC heating technology with fan circulation, built-in thermostat control, IP20 protection, flame-retardant material, DIN rail mounting, wide operating temperature range, and certified for safe industrial use.

Typical Applications

  • Large electrical control cabinets and automation systems
  • Industrial power distribution cabinets and high-power switchgear
  • Outdoor communication base stations and large equipment compartments
  • Wind and solar energy equipment cabinets and new energy facilities
  • Precision instrumentation and electronic equipment in low-temperature environments
  • Unattended industrial sites, factories, and high-humidity working conditions
Product Attribute Value
JRQFS1000BAT Parameters
Model JRQFS1000BAT
Product Name Heater with thermostat
Certification CE
IP Rating IP20
Heating Element PTC
Axial Fan ball bearing, airflow 160m³/h, service life 50,000h at 25℃
Connection 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 60715 or screw fixing (M6)
Fitting Position vertical airflow (air outlet up) – other fitting positions possible
Dimensions 182×160×120mm
Operating / Storage Temperature -45℃ ~ +70℃
Operating / Storage Humidity max. 90% RH (non-condensing)
Order Code 2020.019
Operating Voltage 230VAC, 50/60Hz
Heat Load 950-1050W
Inrush Current Max. 13A
Fuse 8A (230VAC, 120VAC)
Setting Range 0~+60℃
Weight (Approx.) 1.30kg
