ENGINEERING SUPPORT
Talk to our team about product selection and your application.
Contact technical supportDC transformers (DC power supplies) with stable 24VDC output.
Planar Magnetic Design – High‑frequency planar cores deliver compact size, low leakage inductance, and high power density.
Wide‑Range Resonant Conversion – Maintains >94% efficiency across load ranges with reduced switching losses.
Optimized Thermal Path – DBC substrates and thermal potting ensure even heat dissipation.
Adaptive Regulation – Digital control adjusts duty cycle and frequency for varying loads.
Harsh‑Environment Durability – Nano‑coatings and rugged assembly exceed IP68 protection.
Ultra‑Low Ripple Output – Ripple <10 mV p‑p for sensitive RF, medical, and measurement gear.
Modular Architecture – Supports multi‑output and hybrid DC bus configurations.
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Model | B max | D max | E max | A | Dimension mm |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | Kiva | 04/08/2025 02:50 AM | Kiva | 04/08/2025 02:50 AM | DZD-2A | 78 | 72 | 100 | 56 | 46 |
| 53 | Kiva | 04/08/2025 02:54 AM | Kiva | 04/08/2025 02:54 AM | DZD-5A | 96 | 93 | 133 | 84 | 73.5 |
| 54 | Kiva | 04/08/2025 02:54 AM | Kiva | 04/08/2025 02:54 AM | DZD-10A | 120 | 100 | 168 | 90 | 85 |
| 55 | Kiva | 04/08/2025 02:54 AM | Kiva | 04/08/2025 02:54 AM | JSZ-20A | 180 | 97 | 225 | 136 | 56 |
Renewable Energy Systems – Step up or down DC voltage from solar panels or wind turbines to match battery banks or inverter input requirements.
Telecommunications Equipment – Regulate and isolate DC power for base stations, network switches, and remote communication modules.
Electric Vehicle Charging Stations – Convert high-voltage DC from charging infrastructure to controlled lower-voltage DC for onboard battery management systems.
Industrial Automation & Control Panels – Provide stable DC voltages for PLCs, sensors, and servo drives in manufacturing environments.
LED Lighting Systems – Step down higher DC bus voltages to safe low-voltage DC for LED arrays in commercial and industrial lighting applications.
Battery Charging Systems – Adapt DC output from solar or generator sources to match charging profiles for lead-acid, lithium-ion, or other battery chemistries.
Marine & Offshore Power Systems – Isolate and convert DC power for navigation electronics, lighting, and onboard automation in harsh saltwater environments.
Railway & Transportation Infrastructure – Provide regulated DC for signaling systems, train lighting, and auxiliary loads from traction power DC buses.
Medical & Laboratory Equipment – Deliver ultra-clean, stable DC power to sensitive diagnostic instruments and control systems.
Off-Grid & Backup Power Systems – Manage DC voltage between energy storage units, solar generators, and inverter systems for uninterrupted power supply.
Isolation for Safety – Isolated designs prevent ground loops and protect sensitive electronics.
Thermal Management – Proper derating, heatsinking, and airflow prevent overheating in enclosed panels.
Ripple Control – High‑quality units minimize input ripple to protect batteries and reduce output noise for precision electronics.
Environmental Hardening – IP67/IP68 housings, salt‑mist coatings, and resin encapsulation ensure performance in harsh environments.
Efficiency Curve Reality – Choose models with flat efficiency across the load range, not just peak efficiency at mid‑load.
When powering 12 V devices such as LED lighting, control panels, or radios from a 48 V battery or telecom system, ensuring safe and efficient operation.
It maximizes energy transfer from low‑voltage DC sources to higher DC levels while minimizing heat loss—ideal for solar, EV, and industrial automation.
Galvanic isolation prevents ground loops, reduces electrical noise, and protects sensitive electronics from voltage spikes and surges.
It adjusts PV array output to match battery charging requirements or inverter input voltage, boosting efficiency and storage capacity.
IP67/IP68‑rated designs resist moisture, dust, and corrosion, ensuring stable long‑term performance in marine, roadside, and remote installations.
Selection & support
Match the output current to the DC loads of the control circuit.

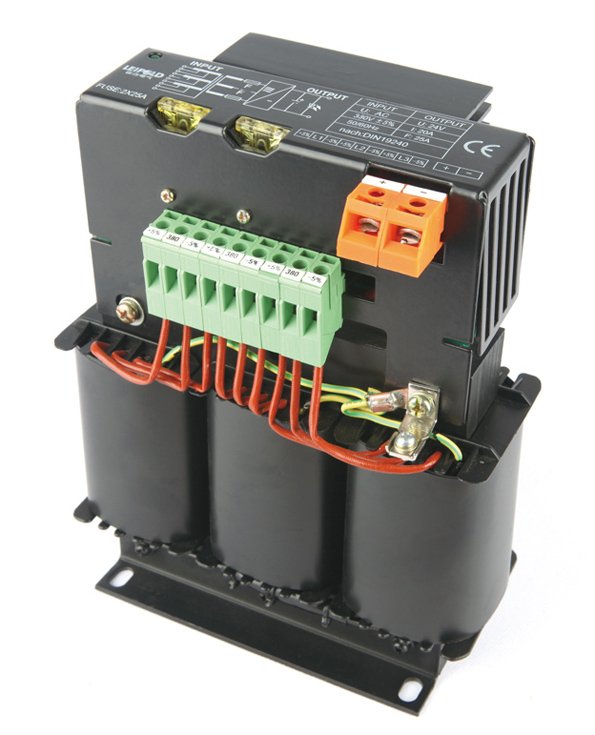

The LEIPOLE DZD and JSZ DC transformers convert an AC supply to a stable 24 V DC for PLCs, sensors, relays and DC fans in electrical enclosures. Four models cover 2 to 20 A: DZD-2A, DZD-5A, DZD-10A and JSZ-20A, and the JSZ-20 takes a three-phase input. The model table gives the mounting dimensions of each.
Check technical documentsAdd the current of every 24 V DC load, such as the PLC, its inputs and outputs, sensors, relay coils and DC fans, and choose the next rating up with a margin for start-up currents, for example 5 A for a 3.5 A load. Send the input supply and total load to the Singapore team to confirm the model.
Confirm the model
