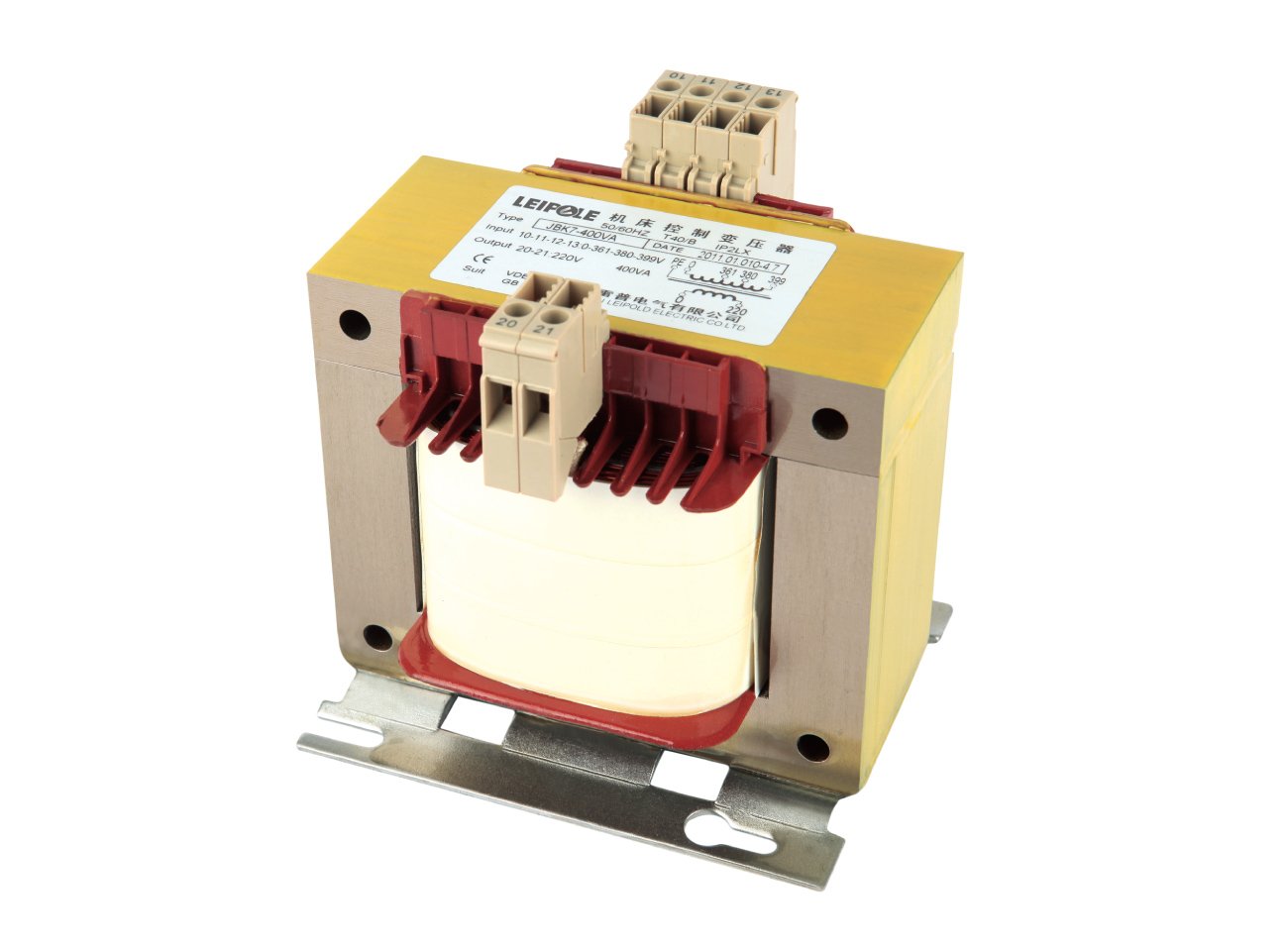

LEIPOLE JBK7-1600 Control Transformer, 1600VA, for Industrial Control,Automation
LEIPOLE JBK7-1600 control transformer offers 1600VA rated capacity with stable voltage regulation and high efficiency. It is designed for electrical enclosure installation and serves manufacturing, automation, power distribution, EV charging, and renewable energy systems.
- Part number: JBK7-1600
- Order code: 4013.011
Product Overview
LEIPOLE JBK7-1600 control transformer delivers stable voltage regulation and high efficiency for a wide range of industrial applications. It is designed for use within electrical enclosures to support safe, consistent operation of control circuits and sensitive electrical components.
Key Features & Advantages
- Rated capacity: 1600VA
- Stable voltage regulation for industrial control systems
- High operational efficiency
- Suitable for installation in standard electrical enclosures
- Built to meet international industrial application standards
- Supports reliable performance in continuous operation
Applications
Industrial Manufacturing & Automation
Used in production machinery, automated assembly lines, and machine tools to provide stable control voltage and improve operational reliability.
Power Distribution & Electrical Systems
Integrated into low-voltage power distribution cabinets, control panels, and electrical enclosures for steady auxiliary power supply.
EV Charging Infrastructure
Supports control circuits and electronic components in electric vehicle charging stations and related power equipment.
Renewable Energy Systems
Applied in solar power systems, wind power equipment, and clean energy distribution setups to maintain stable control voltage.
General Industrial Equipment
Suitable for pumps, fans, actuators, valves, and other industrial devices that require reliable control power.
| Model | JBK7-1600 |
| Order number | 4013.011 |
| Certification | CE, RoHS |
| IP rating | IP20 |
| Rated capacity (VA) | 1600 |
| Efficiency (%) | 94 |
| B max (mm) | 170 / 168 |
| D max (mm) | 225 / 138 |
| E max (mm) | 153 / 155 |
| Hole distance A (mm) | 144±0.2 / 138±0.2 |
| Hole distance C (mm) | 176±0.2 / 116±0.2 |
| Hole distance K (mm) | 7×12 / 7×15 |
| F max (mm) | 3 / 2 |
| Remarks (Mounting Type) | Horizontal / Vertical |
| Rated input voltage (V) | AC380 ±5% / AC220 ±5% |
| Load output voltage | Signal winding / Control winding: 95%-105% UH |
| Installation size tolerance | Signal winding / Control winding: 6 or 12 / 1.1Um |
| Remarks (Winding) | The distribution of every winding capacity can be made according to user’s demand |
