Cabinet Cooling Fan Airflow Calculator
Choose what your enclosure needs, enter a few numbers and get LEIPOLE product recommendations instantly.
3Recommended products
Need help confirming the model?
Send your numbers, supply voltage and protection rating to the LEIPOLE team.
View the airflow in 3D
Products modelled from LEIPOLE FKL5525 CAD data. Airflow is not a CFD simulation or an IP-rating assessment.
How the selector calculates
Effective cabinet surface area follows IEC TR 60890 for the selected installation (arrangements A–G; covered sides count at a reduced factor, the floor not at all). U is 5.5 W/m²K for painted steel, 4.5 stainless steel, 12 aluminum, 3.5 plastic and 1.5 for a cabinet with 20–30 mm insulation. A safety factor of 1.2 is applied once in each method.

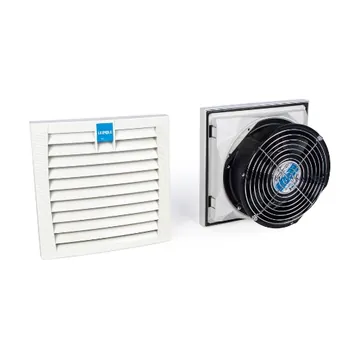

Cooling: Q need = heat loss × 1.2 − U × area × (max. inside − ambient). Required airflow = 3.1 × Q need ÷ (max. inside − ambient), matched against filter-fan airflow with the outlet filter fitted. Filter fans are recommended when the difference is at least 5 °C and one fan (up to 1,056 m³/h) or two in parallel can deliver the airflow; otherwise an enclosure air conditioner with a cooling capacity of at least Q need (rated at L35/L35, up to 7,500 W per unit).

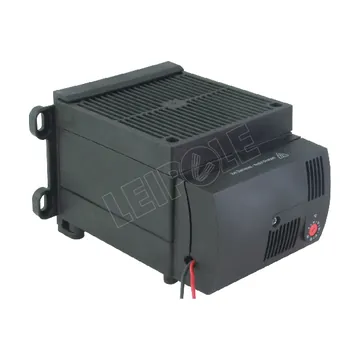

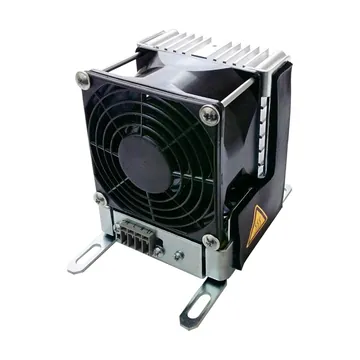

Heating: heater power = (U × area × (min. inside − lowest ambient) − idle heat) × 1.2. Anti-condensation: heater power = (U × area × margin − idle heat) × 1.2, with the inside kept 5 °C above ambient (8 °C when very humid or with large day–night swings). Up to 150 W the selector recommends PTC heaters without a fan, above that fan heaters; beyond the largest single heater (950 W) two or three identical units, or insulation. A JSK0013 hygrostat (set to 65 % RH) or JSK0011R thermostat switches the heater.
Dust, humidity extremes, solar gain and altitude are not included. Confirm supply voltage, cut-out, protection rating and operating limits against the selected model’s datasheet.
