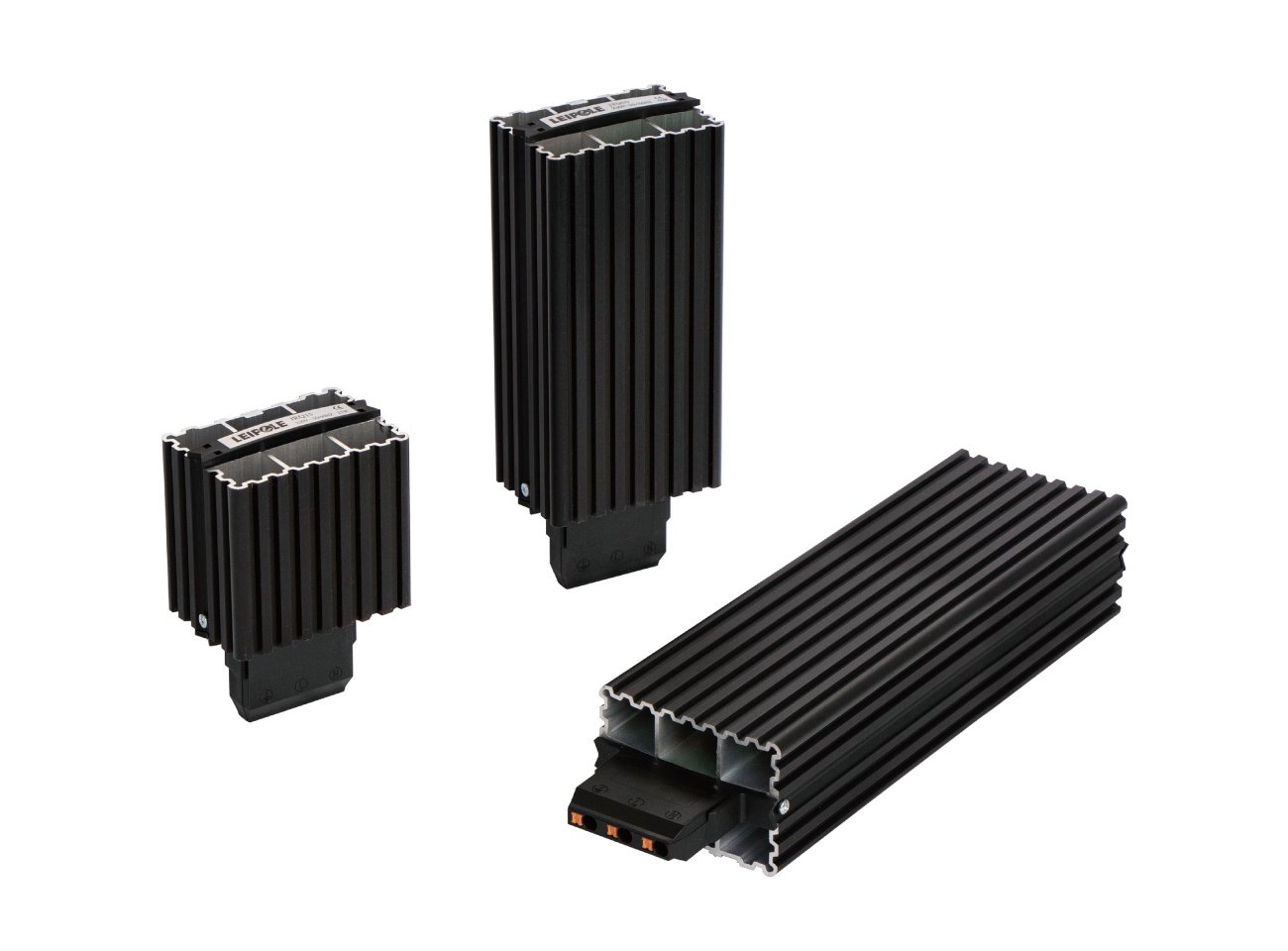

LEIPOLE JRQ15 PTC Enclosure Heater, 15W, IP20, DIN Rail Mount, Anti-Condensation
LEIPOLE JRQ15 15W PTC cabinet heater with self-limiting temperature control, IP20 protection, DIN rail installation, and aluminum housing; efficiently prevents condensation, frost, and low-temperature faults in small electrical and industrial enclosures.
- Part number: JRQ15
- Order code: 2020.001
Product Overview
LEIPOLE JRQ15 PTC enclosure heater delivers stable, maintenance-free heating for compact electrical enclosures. It efficiently prevents condensation, frost, and low-temperature startup issues, keeping equipment running safely in cold and humid environments.
Key Features & Advantages
- Built-in self-limiting PTC heating element for safe, stable, and energy-saving operation.
- IP20 protection level and UL94 V0 flame-retardant structure ensure industrial-grade safety.
- Durable aluminum housing for fast heat conduction and long service life.
- Wide voltage design supports global power supply for flexible use.
- Standard 35mm DIN rail vertical installation for quick and easy setup.
- Compact 15W power ideal for small cabinets and precise heat compensation.
Technical Specifications
Adopts self-limiting temperature PTC heating technology, with IP20 protection, UL94 V0 flame retardant, wide voltage input, aluminum alloy shell, 35mm DIN rail vertical installation, wide operating temperature range, and CE certified for safe use.
Typical Applications
- Small electrical control cabinets and automation modules
- Compact sensor housings and precision instruments
- Communication terminal boxes and outdoor small equipment boxes
- Lighting control panels and low-power distribution units
- Automotive small electrical boxes and vehicle-mounted equipment
- Unattended low-temperature sites and narrow-space cabinets
| Model | JRQ15 |
| Certification | CE |
| IP Rating | IP20 |
| Operating Voltage | 115~230VAC 50/60 Hz |
| Heating Element | PTC, self-adjustment and temperature limits |
| Connector | Push-in terminal 0.5-2.5mm² |
| Flame Retardant Rating | UL94V0 |
| Case Material | Aluminum |
| Installation Requirements | Vertical |
| Operating / Storage Temperature | -45℃ to +70℃ |
| Order Code | 2020.001 |
| Heat Load (20℃, 115V/230V) | 13-15W / 15-20W |
| Rated Current (115V/230V) | 0.3A / 1.2A |
| Surface Temperature (115V/230V) | 40℃ / 60℃ |
| Din Rail Thickness | 1.1mm |
