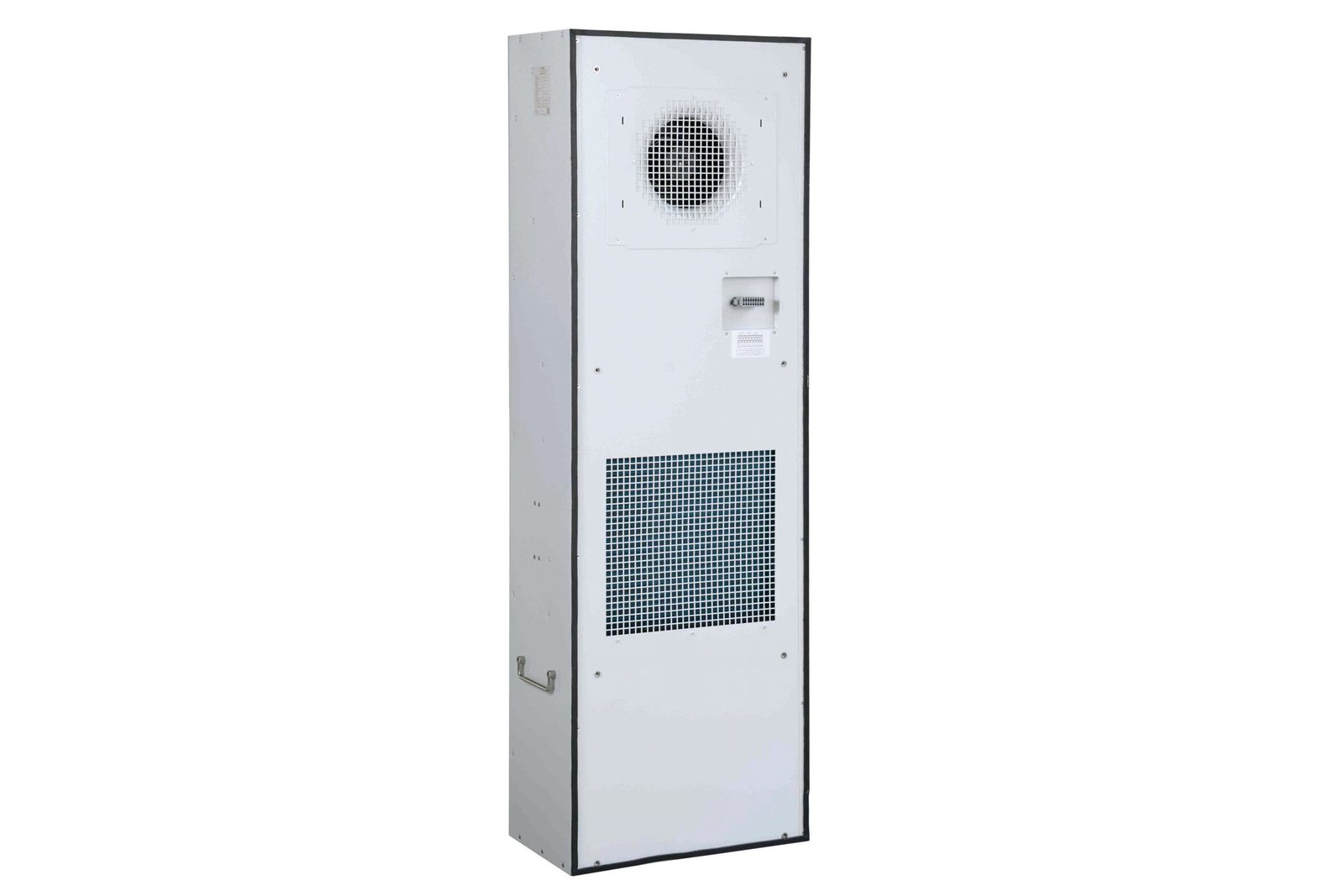

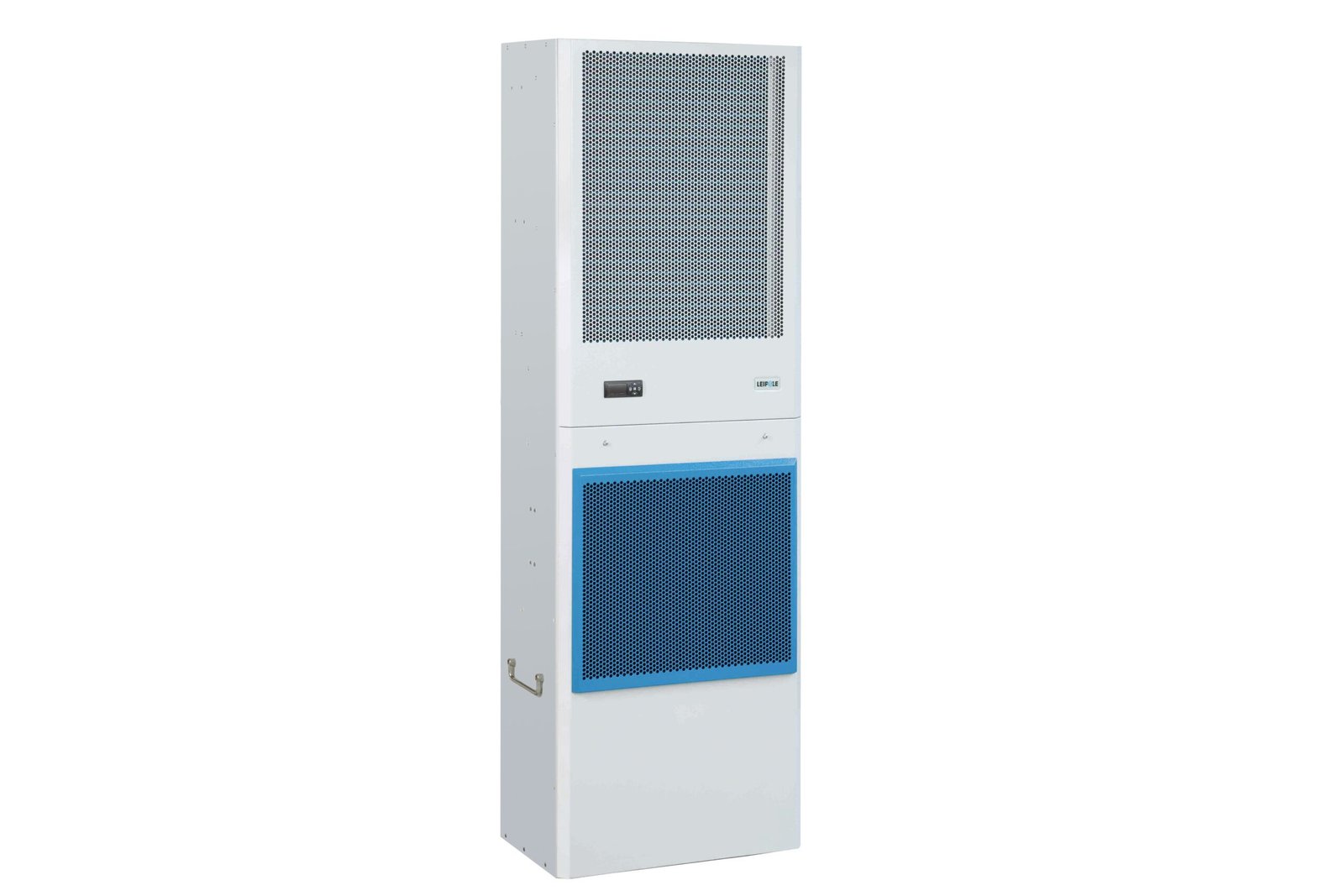

LP4000N-1: 4000W Enclosure for Air Conditioner with Easy Installation
When selecting an enclosure air conditioner, consider factors such as the size of the enclosure, heat load, and environmental conditions. For outdoor applications, an outdoor air conditioner enclosure with weatherproof features is ideal. For smaller spaces, a compact electronic enclosure air conditioner may be more suitable.
- Part number: LP4000N-1
- Order code: 2027.005
Key Functions of Enclosure Cooling Units
- Temperature Regulation: Enclosure AC units maintain a consistent temperature, preventing overheating and ensuring the reliable operation of sensitive equipment.
- Humidity Control: Many enclosure air conditioners also manage humidity levels, reducing the risk of condensation and corrosion.
- Dust and Contaminant Protection: By creating a sealed environment, these units prevent dust and debris from entering the enclosure, which can damage electronic components.
Benefits of Enclosure Air Conditioners
- Enhanced Equipment Lifespan: By maintaining a stable temperature, enclosure AC units extend the life of electronic components.
- Energy Efficiency: Modern enclosure cooling units are designed to consume less energy while providing effective cooling.
- Versatility: Whether it’s an outdoor air conditioner enclosure or a small enclosure air conditioner, these systems can be customized to fit specific needs.
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Product Attribute | Value |
|---|---|---|---|---|---|---|
| 1 | Part Number | LP4000N-1 | ||||
| 2 | Order Code | 2027.005 | ||||
| 3 | Dimensions | 485 x 306 x 1510mm | ||||
| 4 | Cooling Capacity | 4000W, 13650BTU/h | ||||
| 5 | Nominal voltage | 220V/50Hz/60Hz | ||||
| 6 | Nominal capacity | (L35/L35) 1725W, (L35/L55) 1840W | ||||
| 7 | Nominal current | 7.8A | ||||
| 8 | Dimensional | 485*1510*306mm | ||||
| 9 | Installation | Screw mounting | ||||
| 10 | Operating temperature | -10℃~+55℃ | ||||
| 11 | Setpoint temperature | +28 °C~+40 °C | ||||
| 12 | Air flow | 1250m³/h | ||||
| 13 | IP rating | Internal IP54/External IP34 | ||||
| 14 | Refrigerant Type | R134a | ||||
| 15 | Noise level | 68dB | ||||
| 16 | Finish | Power coated RAL7035 | ||||
| 17 | Weight | 80Kg | ||||
| 18 | Filter | Yes |
