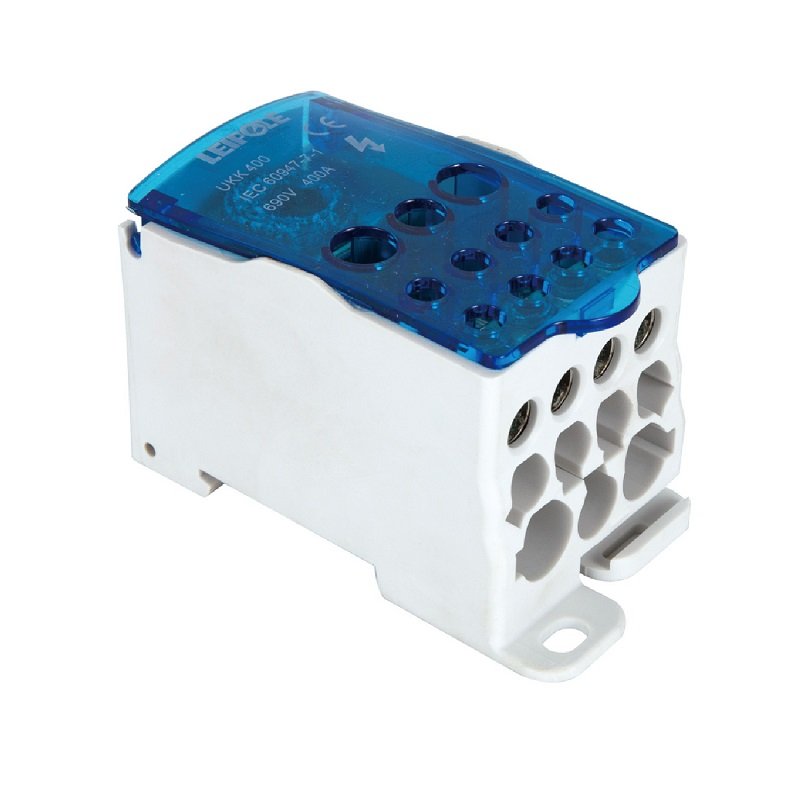

LEIPOLE UKK 400A Power Distribution Block, Industrial Power Distribution, 400A
LEIPOLE UKK 400A power distribution block with CE certification and IP20 protection rating. It provides 400A rated current, supports multi‑pole configuration, wide metric and AWG wiring ranges, parallel connection, and 85×29mm installation hole for heavy‑duty industrial power systems.
- Part number: UKK 400A
- Order code: 5012.010
Product Overview
The LEIPOLE UKK 400A is a high‑capacity power distribution block built for stable power branching and connection in heavy‑duty industrial electrical systems. It complies with IEC 60947‑7‑1 and UL/CSA standards, suitable for high‑power distribution applications.
Key Features & Advantages
- Supports versatile single‑pole, 2‑pole, 3‑pole, and 4‑pole power block assembly
- Works with both metric and AWG wiring specifications for global industrial use
- Supports parallel connection with one input retained for expanded wiring capacity
- Accommodates wide ranges of cable cross‑sections for flexible wiring setup
- Rugged structure for continuous and reliable industrial operation
Installation & Wiring
This unit uses an 85×29mm installation hole for stable and standardized mounting. It supports metric wiring ranges including 95…185mm² (×1), 6…35mm² & 6…25mm² (×2), 2.5…16mm² (×5), and 2.5…10mm² (×4) with matched torque values. AWG wiring options and corresponding torque ratings are also provided.
Applications
The UKK 400A power distribution block is widely used for power distribution, branching, and connection in industrial electrical enclosures, automation control panels, power distribution cabinets, and heavy‑duty electrical equipment.
| Model | UKK 400A |
| Certification | CE |
| IP Rating | IP20 |
| Order Number | 5012.010 |
| Rated Current (IEC/UL) | I=400A IEC 60947-7-1, I=335A UL/CSA |
| Impulse withstand voltage (Ui) | 690V IEC |
| Insulation voltage (Vin UL) | 600V UL |
| Rated short-time withstand current (Icw kA rms 1s) | 24.5 |
| Rated peak withstand current (IPk kA) | 51 |
| Installation Hole | 85×29mm |
| Special Feature | Allows versatile building of power blocks (single pole, two pole, three pole or four pole) |
