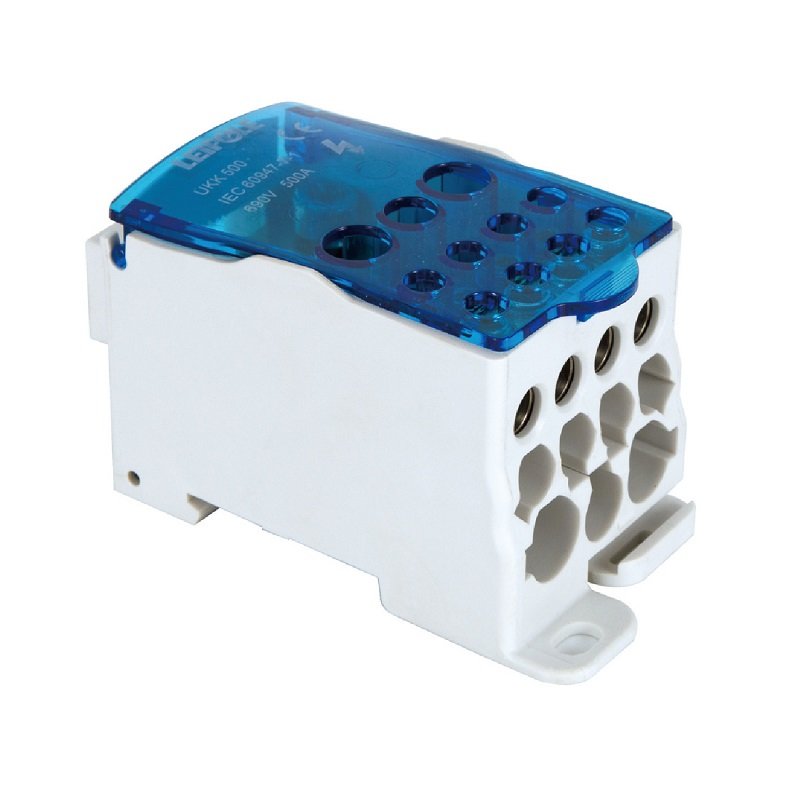

LEIPOLE UKK 500A power distribution block for industrial electrical cabinets and control panels

LEIPOLE UKK 500A Power Distribution Block, Industrial Power Distribution, 500A

Request a quoteWhatsApp us

LEIPOLE UKK 500A power distribution block with CE certification and IP20 protection rating. It offers 500A rated current, supports multi‑pole combination, wide metric and AWG wiring ranges, jumper parallel connection, and 85×29mm installation hole for heavy‑duty industrial power distribution systems.

  • Part number: UKK 500A
  • Order code: 5012.011
Add to cart

Product Overview

The LEIPOLE UKK 500A is a high‑capacity power distribution block developed for stable power branching and connection in heavy‑duty industrial electrical systems. It conforms to IEC 60947‑7‑1 and UL/CSA standards, designed for high‑power industrial power distribution scenarios.

Key Features & Advantages



  • Compatible with both metric and AWG wiring standards for global industrial applications
  • Allows parallel connection using jumpers while retaining one input terminal
  • Accommodates multiple cable cross‑section ranges for diversified wiring needs
  • Durable structure for sustained and reliable operation in industrial environments

Installation & Wiring

This unit is equipped with an 85×29mm installation hole for firm and standardized installation. It supports metric wiring ranges including 6…35mm² & 6…25mm² (×2), 2.5…16mm² (×5), and 2.5…10mm² (×4) with specified torque values. AWG wiring options and matching torque ratings are also available for use.

Applications

The UKK 500A power distribution block is widely applied for power distribution, branching, and connection in industrial electrical enclosures, automation control panels, power distribution cabinets, and large‑scale electrical equipment.
Product Attribute Value
UKK 500A Parameters
Model UKK 500A
Certification CE
IP Rating IP20
Order Number 5012.011
Rated Current (IEC/UL) I=500A IEC 60947-7-1, I=520A UL/CSA
Impulse withstand voltage (Ui) 690 V IEC
Insulation voltage (Vin UL) 600 V UL
Rated short-time withstand current (Icw kA rms 1s) 24.5
Rated peak withstand current (IPk kA) 51
Installation Hole 85×29mm
Special Feature Can be connected in parallel using jumper, easily double the neutral
