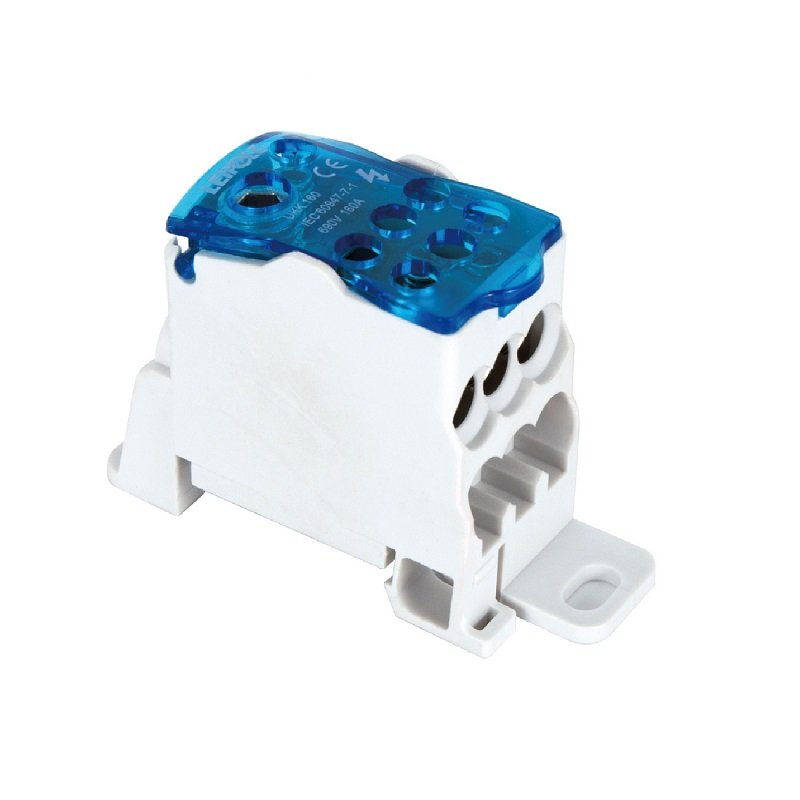

LEIPOLE UKK 160A power distribution block for industrial electrical cabinets and control panels

LEIPOLE UKK 160A Power Distribution Block, Industrial Power Connection, 160A

Name: LEIPOLE UKK 160A Power Distribution Block, Industrial Power Connection, 160A
Brand: LEIPOLE
Availability: InStock

Request a quote WhatsApp us

LEIPOLE UKK 160A power distribution block with CE certification and IP20 protection rating. It delivers 160A rated current, supports multiple metric and AWG wiring ranges, enables jumper parallel connection, and features a 64mm installation hole for stable use in industrial power distribution systems.

Add to cart

Product Overview

The LEIPOLE UKK 160A is a dedicated power distribution block engineered for safe and efficient power branching in industrial electrical systems. It meets IEC 60947-7-1 and UL/CSA standards, providing reliable performance for medium‑power distribution tasks.

Key Features & Advantages

Supports multiple metric wiring ranges with standard torque values
Works with AWG wiring specifications for North American market applications
Supports parallel connection via jumpers while keeping one input terminal
Enables neutral doubling for flexible circuit layout
Stable mechanical structure for long‑term industrial use

Installation & Wiring

The unit features a 64mm installation hole for standardized mounting. It supports metric wiring including 10…70mm² (×1), 6…16mm² (×1), and 2.5…16mm² (×6). AWG wiring ranges and corresponding torque values are also provided. Jumpers can be applied to connect blocks in parallel.

Applications

The UKK 160A power distribution block is applied in power branching and connection for industrial electrical enclosures, automation control panels, power distribution cabinets, and electrical equipment assemblies.

Product Attribute	Value
UKK 160A Parameters
Model	UKK 160A
Certification	CE
IP Rating	IP20
Order Number	5012.008
Rated Current (IEC/UL)	I=160A IEC 60947-7-1, I=200A UL/CSA
Impulse withstand voltage (Ui)	690V IEC
Insulation voltage (Vin UL)	600V UL
Rated short-time withstand current (Icw kA rms 1s)	11.8
Rated peak withstand current (IPk kA)	30
Installation Hole	64mm
Special Feature	Blocks can be connected in parallel using jumper, easily double the neutral
