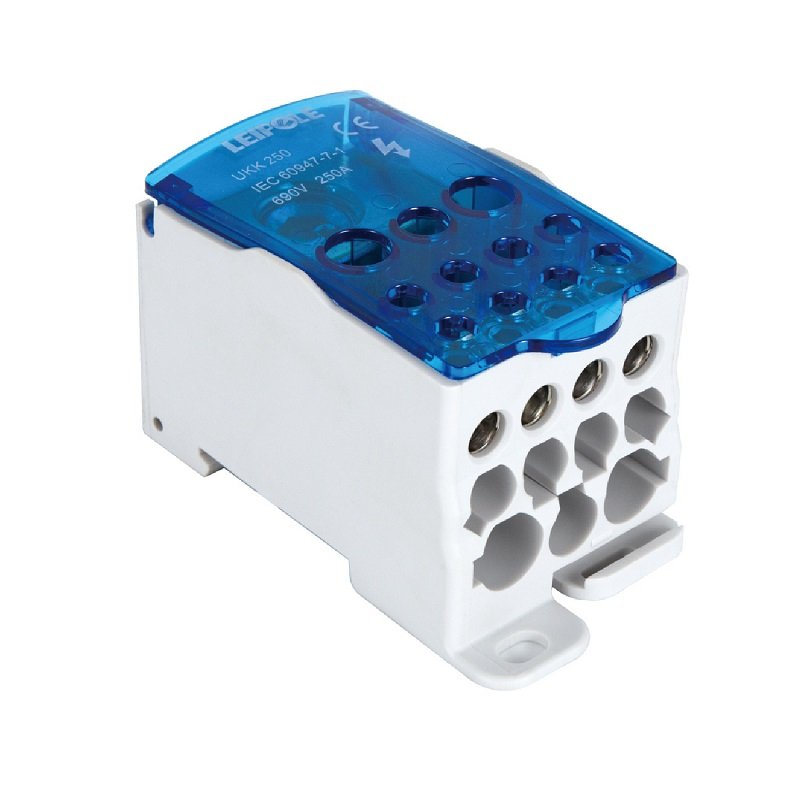

LEIPOLE UKK 250A Power Distribution Block, Industrial Power Distribution, 250A
LEIPOLE UKK 250A power distribution block with CE certification and IP20 protection rating. It provides 250A rated current, supports multi‑pole configuration, wide metric and AWG wiring ranges, parallel connection, and 85×29mm installation hole for heavy‑duty industrial power systems.
- Part number: UKK 250A
- Order code: 5012.009
Product Overview
The LEIPOLE UKK 250A is a high‑capacity power distribution block designed for stable power branching and connection in industrial electrical systems. It complies with IEC 60947‑7‑1 and UL/CSA standards, suitable for medium‑to‑high power distribution requirements.
Key Features & Advantages
- Supports versatile single‑pole, 2‑pole, 3‑pole, and 4‑pole power block assembly
- Works with both metric and AWG wiring specifications for global applications
- Supports parallel connection with one input retained for expanded capacity
- Compatible with multi‑size cable cross‑sections for flexible wiring
- Robust construction for continuous industrial operation
Installation & Wiring
This unit uses an 85×29mm installation hole for secure mounting. It supports metric wiring ranges including 35…120mm² (×1), 6…35mm² & 6…25mm² (×2), 2.5…16mm² (×5), and 2.5…10mm² (×4) with standard torque values. AWG wiring options and matching torque ratings are also provided.
Applications
The UKK 250A power distribution block is widely used for power distribution, branching, and connection in industrial electrical enclosures, automation control panels, power distribution cabinets, and high‑power electrical equipment.
| Model | UKK 250A |
| Certification | CE |
| IP Rating | IP20 |
| Order Number | 5012.009 |
| Rated Current (IEC/UL) | I=250A IEC 60947-7-1, I=255A UL/CSA |
| Impulse withstand voltage (Ui) | 690V IEC |
| Insulation voltage (Vin UL) | 600V UL |
| Rated short-time withstand current (Icw kA rms 1s) | 24.5 |
| Rated peak withstand current (IPk kA) | 51 |
| Installation Hole | 85×29mm |
| Special Feature | Allows versatile building of power blocks (single pole, two pole, three pole or four pole) |
