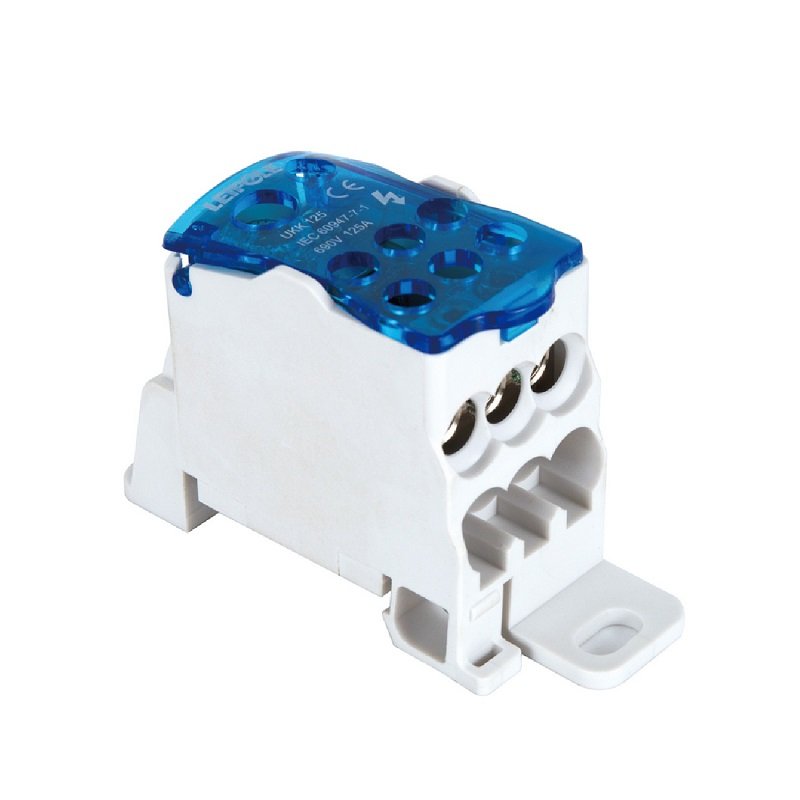

LEIPOLE UKK 125A power distribution block with CE certification, IP20 rating, 125A rated current, jumper parallel connection, and 64mm installation hole for industrial power distribution systems.
The LEIPOLE UKK 125A is a heavy‑duty power distribution block built for stable power branching and connection in industrial electrical systems. It complies with IEC 60947‑7‑1 and UL/CSA requirements, delivering consistent performance for industrial panel and enclosure applications.
Key Specifications
This unit is CE certified with an IP20 ingress protection rating. It provides a rated current of 125A (IEC 60947‑7‑1) and 150A (UL/CSA). Icw KA rms 1s is 4.2kA, IPk KA is 30kA. Rated insulation voltage Ui is 690V (IEC), rated operational voltage Vin is 600V (UL). Installation hole dimension is 64mm.
Key Features & Advantages
Supports multiple metric wiring ranges with defined torque settings
Compatible with AWG wiring standards for North American usage
Enables parallel connection via jumper wires with one input retained
Allows neutral doubling or tripling for flexible circuit arrangement
Stable structure for secure long‑term power distribution
Installation & Wiring
The product uses a 64mm installation hole for reliable mounting. It supports metric wiring ranges including 10…35mm² (×1), 6…16mm² (×1), and 2.5…16mm² (×6). AWG wiring options and matching torque values are also available. Jumper wires allow parallel configuration to expand wiring capacity.
Applications
The UKK 125A power distribution block is used for power distribution and branching in industrial electrical enclosures, automation control panels, power distribution cabinets, and electrical equipment.
Product Attribute
Value
UKK 125A Parameters
Model
UKK 125A
Certification
CE
IP Rating
IP20
Order Number
5012.007
Rated Current (IEC/UL)
I=125A IEC 60947-7-1, I=150A UL/CSA
Impulse withstand voltage (Ui)
690V IEC
Insulation voltage (Vin UL)
600V UL
Rated short-time withstand current (Icw kA rms 1s)
4.2
Rated peak withstand current (IPk kA)
30
Installation Hole
64mm
Special Feature
Blocks can be connected in parallel using jumper, easily double or triple the neutral
