Screw Terminal Blocks

Innovative Technical Solutions

 Enhancing Reliability & Efficiency with Advanced Thermal Management and Electrical Solutions

Contact Us for Technical Support

Download Brochure

Catalogs

Product Overview

Our IEC screw terminal blocks comply with recognized international IEC standards. Our finger-proof terminals are designed for DIN rail mounting.

  • Screw-fixed design: Ensures secure wiring to prevent loosening or falling off.
  • Multiple specifications: Supports cables of different wire diameters and adapts to a variety of application scenarios.
  • High-temperature resistant materials: Adapt to high-temperature environments, improve safety and durability.
  • Clear identification: Equipped with terminal markings for easy wiring identification and maintenance.
  • Anti-vibration performance: Optimized structural design, suitable for high-vibration environments.

Key Advantages

  • Gas‑Tight Metal‑to‑Metal Connection – Screw clamping creates a gas‑tight joint that resists oxidation, ensuring long‑term conductivity even in harsh environments.

  • High Torque Retention – Engineered threads and captive screws maintain clamping force under vibration and thermal cycling, preventing loosening over time.

  • Wide Conductor Compatibility – Accepts solid, stranded, or ferruled wires without special preparation, supporting flexible installation.

  • Thermal & Electrical Robustness – Rated for high current and temperature endurance, suitable for industrial power distribution and control circuits.

  • Multiple Wire Entry Options – Dual or multi‑conductor terminals simplify parallel connections and reduce panel space usage.

Product Catagories

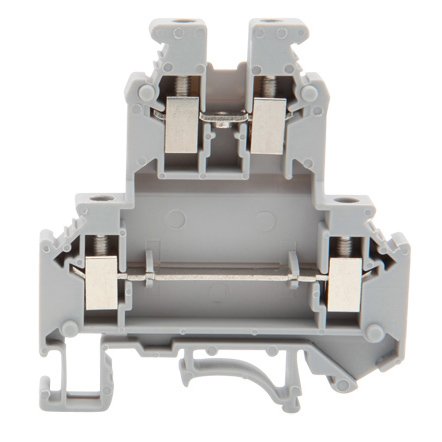

JUK Screw Terminal Blocks

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at model size rated current rated voltage solid cross section (min) solid cross section (max) stranded cross section(min) stranded cross section(max)
1 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 2.5B T6.2×H42×W42.5 32A 800V 0.2mm² 4mm² 0.2mm² 2.5mm²
2 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 2.5N T5.2×H42×W42.5 32A 800V 0.2mm² 4mm² 0.2mm² 2.5mm²
3 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 3N T5.2×H47×W42.5 32A 800V 0.2mm² 4mm² 0.2mm² 2.5mm²
4 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 5N T6.2×H47×W42.5 41A 800V 0.2mm² 6mm² 0.2mm² 4mm²
5 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 6N T8.2×H47×W42.5 57A 800V 0.2mm² 10mm² 0.2mm² 6mm²
6 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 10N T10.2×H47×W42.5 76A 800V 0.5mm² 16mm² 0.5mm² 10mm²
7 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 16N T12.2×H54×W42.5 100A 800V 2.5mm² 25mm² 4mm² 16mm²
8 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUK 35N T15.2×H62×W55 125A 800V 10mm² 35mm² 10mm² 35mm²
9 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUKH 50 T20×H83.5×W70.5 150A 1000V 16mm² 50mm² 25mm² 50mm²
10 Kiva 04/08/2025 05:36 AM Kiva 04/08/2025 05:36 AM JUKH 95 T25×H91×W83.9 232A 1000V 25mm² 95mm² 35mm² 95mm²

Applications

  • Industrial Control Panels – Securely connect power, control, and signal wiring for PLCs, relays, and automation components.

  • Power Distribution Boards – Distribute mains or low‑voltage power safely within machinery, switchgear, and electrical cabinets.

  • Building Electrical Systems – Provide durable wiring connections for lighting circuits, HVAC systems, and fire‑alarm panels.

  • Transportation & Rail Systems – Maintain vibration‑resistant electrical connections in rolling stock, signaling, and trackside control.

  • Energy & Utility Equipment – Connect metering devices, circuit breakers, and transformer secondary wiring in substations.

  • Marine & Offshore Installations – Resist corrosion and maintain conductivity in shipboard electrical systems and offshore platforms.

  • Renewable Energy Systems – Facilitate solar PV array wiring, wind turbine control systems, and battery‑storage interconnections.

  • Test & Measurement Racks – Enable quick wiring changes and secure connections for laboratory and field testing setups.

Basic Knowledge

1. Gas‑Tight Connections Extend Service Life

When correctly torqued, the screw compresses the conductor against a plated copper alloy contact, forming a gas‑tight metal‑to‑metal bond. This prevents micro‑oxidation at the contact surface—one of the leading causes of hidden electrical resistance over time.

2. Torque Accuracy is Critical

Over‑tightening can damage conductor strands or deform ferrules; under‑tightening leads to vibration‑induced loosening. Torque‑limiting screwdrivers are standard in high‑reliability sectors such as rail, aerospace, and energy distribution to ensure repeatable, optimal clamping force.

3. Vibration & Thermal Cycling Resistance

High‑quality screw terminal blocks use spring‑loaded pressure plates or anti‑vibration thread designs to maintain clamping force through thousands of thermal expansion/contraction cycles, preventing creep and loosening in high‑current or high‑temperature applications.

Why Choose Leipole?

As a professional buyer, do you face these challenges?

❌ Delivery delays – affecting project progress and production line stability

❌ Poor technical adaptability – standard products cannot meet complex working conditions

❌ High hidden costs – frequent maintenance, excessive energy consumption, slow after-sales response

❌ Compliance risks – lack of international certification leads to customs clearance and warranty disputes

Leipole is proud to offer one-stop solution:

💎 Global layout, zero delivery delays

  • R&D and sales headquarter led by the team in Singapore – cutting-edge cooling technology iteration to ensure product leadership
  • Manufacturing base in Shanghai, China – ISO 9001 & ISO14001 certified, cost optimization + high quality control standards
  • Localized warehousing in 24 countries – spot shipments from the EU, America, and Southeast Asia, urgent orders arrive within 3 days

🔧 Deep customization capabilities to solve complex needs

  • OEM/ODM full-case support – from cooling structure design to branding customization, 100+ successful cases (Industrial Automation/ New Energy Industry/Data Centers)
  • Working condition simulation test – Free simulation of air volume, high temperature, high humidity and vibration environment to ensure 100% adaptability of the solution

🌍 Worry-free compliance, global access

  • Authoritative certification – CE, UL, RoHS, REACH full coverage, hassel-free customs clearance in Europe, America and Southeast Asia

🚀 Cost optimization throughout the entire life cycle

  • Energy consumption reduced by 30% – patented airflow design, saving 30% in electricity bills per year compared to peer product
  • 1-year warranty – redundant design of key components, failure rate <0.2%
  • 7×24 localized service – 50+ national technical teams, 4-hour response, direct supply of spare parts.

Customization Process

Accurate Demand Analysis

Professional engineers deeply understand your equipment parameters, application environment, and special requirements.

Customized Technical Solutions

R&D teams develop optimal heat dissipation solutions based on your needs, including airflow calculations and installation planning.

 Sample Testing and Validation

Provide samples for real-environment testing, collect data feedback, and ensure solution effectiveness.

Mass Production

After confirming the solution, production follows strict ISO9001 quality management systems to ensure batch stability.

FAQ

🔹Why use screw terminal blocks in industrial control panels?

💡They provide secure, high‑current connections that withstand vibration, temperature cycling, and heavy‑duty industrial use.

🔹What makes a 100A screw terminal block suitable for high‑current applications?

💡It uses heavy‑gauge conductive elements and large clamping surfaces to ensure minimal voltage drop and safe current handling.

🔹When should I choose a PCB‑mount screw terminal block?

💡For direct integration into circuit boards, allowing secure wire‑to‑board connections without extra connectors or adapters.

🔹Why choose DIN‑rail screw terminal blocks?

💡They simplify installation, enable modular expansion, and meet standardized sizing for electrical panel systems.

🔹What are the benefits of multi‑level screw terminal blocks?

💡They allow multiple connection layers in the same footprint, saving space in dense control panel layouts.
