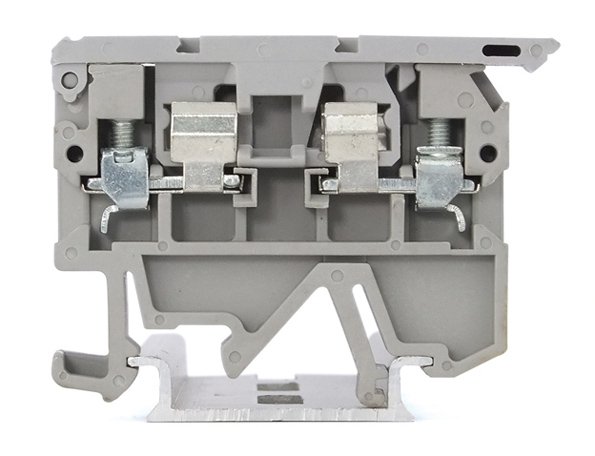

LEIPOLE JXB-RD fuse terminal block, DIN rail mount, 0.2–4mm² cross section, industrial fuse protection wiring component

LEIPOLE JXB-RD Fuse Terminal Block, Industrial Electrical Connection, 6.3A 750V

Request a quoteWhatsApp us

LEIPOLE JXB-RD fuse terminal block offers 6.3A/750V rated performance, 0.2–4mm² wire capacity, UL 94 V0 flame resistance and screw connection. It provides overcurrent protection and fits standard DIN rails for industrial electrical safety.

  • Part number: JXB-RD
  • Order code: 1011.081

Product Overview

LEIPOLE JXB-RD is a fuse-type industrial terminal block manufactured in compliance with IEC 60947-7-1 standards. It integrates fuse protection with screw connection, providing circuit overcurrent protection and stable wiring for industrial electrical systems.

Key Features & Advantages

  • Rated 6.3A/750V, supports wire cross-section range from 0.2mm² to 4mm²
  • UL 94 V0 inflammability class for safe operation in industrial environments
  • Built-in fuse design provides effective overcurrent and short-circuit protection
  • Standard screw connection ensures stable electrical contact and long service life
  • Compatible with NS 35/7.5, NS 35/15, NS 32 DIN rail types for flexible installation
  • Supports matching accessories including end covers, jumper bars, end clamps and marking labels

Typical Applications

  • Industrial electrical control circuit overcurrent protection
  • Automation equipment signal and low-power circuit protection
  • Small power distribution cabinet fuse wiring
  • Electrical control panel circuit safety protection
  • Industrial systems needing reliable fuse connection
Model JXB-RD
Product Type Fuse Terminal
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-1
Order Number 1011.081
Size T8×H45.5×W58
Rated Current/Rated Voltage 6.3A/750V
Cross Section 0.2~4mm²
Connection Type Screw Connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
