LEIPOLE JUSLKG 10 large-size green-yellow grounding terminal block, DIN rail mounted, for high-section wire safety earthing in industrial power distribution

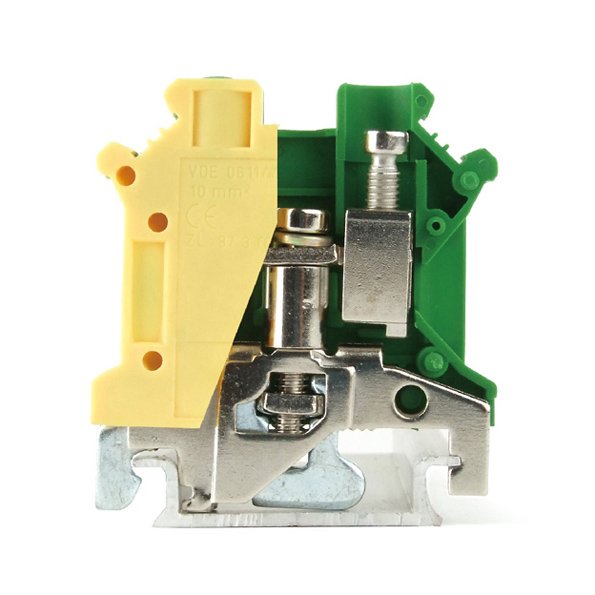

LEIPOLE JUSLKG 10 DIN Rail Heavy-Duty Grounding Terminal Block

Request a quoteWhatsApp us

LEIPOLE JUSLKG 10 is a heavy-duty DIN rail grounding terminal block for large cross-section wires and high-load industrial scenarios. It features reinforced screw clamping, high-efficiency conductive parts and standard flame-retardant green-yellow housing. Ensuring low-resistance stable earthing and strong environmental adaptability, it provides standardized, durable and safe protective grounding for heavy-duty power distribution and industrial electrical systems.

  • Part number: JUSLKG 10
  • Order code: 1010.032

Product Overview

LEIPOLE JUSLKG 10 is a heavy-duty DIN rail grounding terminal block designed for large cross-section wire protective earthing. Equipped with an enhanced screw clamp structure and high-conductivity conductive parts, it ensures low-resistance, stable grounding connection for heavy-duty circuits. The standard green-yellow insulating housing complies with international grounding safety standards, featuring excellent flame retardancy, high temperature resistance and mechanical impact resistance. Modular DIN rail mounting allows quick installation and flexible combination, ideal for heavy machinery, power distribution cabinets and high-power industrial electrical grounding systems.

Key Features & Advantages

  • Standard green-yellow color identification, in line with global electrical grounding specifications.
  • Reinforced screw clamping structure, firm fixation for large cables, anti-vibration and anti-loosening.
  • Industrial-grade flame-retardant material, superior insulation performance and aging resistance.
  • Universal DIN rail installation, easy modular assembly, combination and daily maintenance.
  • Enlarged conductive structure to adapt to high-load grounding requirements.
  • Reliable protective grounding design to ensure equipment and personal operation safety.

Technical Specifications

Made of high-strength flame-retardant engineering plastic and thickened high-conductivity copper components, with heavy-duty screw connection and standard DIN rail installation, meeting industrial high-current grounding application standards.

Typical Applications

  • Heavy-load equipment protective grounding in industrial power distribution cabinets
  • Safety earthing for large mechanical equipment and high-power electrical devices
  • Grounding protection for factory main circuits and low-voltage power distribution systems
  • Standardized green-yellow color-coded grounding wiring for industrial engineering projects
  • Complete sets of high-power electrical equipment grounding system layout
  • Energy, chemical and heavy manufacturing industry electrical safety grounding connection
Model JUSLKG 10
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-2
Zack Strip ZB10
Order Number 1010.032
Size T10.2×H47×W42.5
Rated Current 76A
Cross Section 0.5~16mm²
Connection Type screw connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
