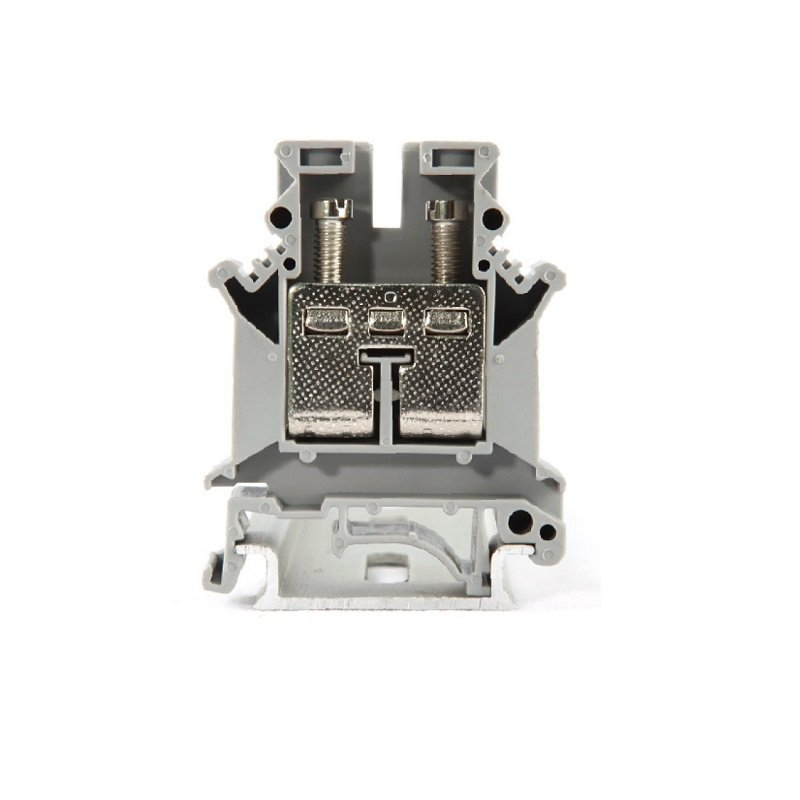

LEIPOLE JUK 16N / JUK 16N-BU DIN Rail Screw Terminal Block, High Current Wiring Connector
LEIPOLE JUK 16N / JUK 16N-BU DIN rail screw terminal blocks adopt reinforced structure and flame-retardant housing, providing stable high-current connection for industrial power distribution systems.
- Part number: JUK 16N / JUK 16N-BU
- Order code: 1010.009/1010.023
Product Overview
LEIPOLE JUK 16N and JUK 16N-BU are high-current modular screw terminal blocks for industrial low-voltage power distribution. Featuring reinforced screw clamp connection structure, they stably fasten large cross-section wires and ensure continuous and safe electrical conduction. The high flame-retardant insulated housing delivers superior insulation and heat resistance. Grey and blue color options realize standardized color-coded wiring, ideal for control cabinets, distribution boxes and heavy machinery electrical systems.
Key Features & Advantages
- Reinforced screw clamp design, suitable for large-size wire connection, anti-loosening and vibration resistance.
- Industrial-grade flame-retardant material, high dielectric strength and temperature resistance.
- Standard DIN rail mounting, convenient modular assembly, combination and maintenance.
- Optimized internal structure for good heat dissipation, adapting to long-term high-current operation.
- Dual color selection for circuit classification, simplifying daily inspection and wiring management.
- Full compatibility with matched accessories such as end covers and jumpers.
Technical Specifications
Made of high-strength flame-retardant engineering plastic, equipped with reinforced screw fastening connection, standard DIN rail mounting, stable mechanical performance and electrical safety, complying with industrial high-current wiring specifications.
Typical Applications
- High-current power wiring and distribution in industrial control cabinets
- Main circuit connection for mechanical equipment, inverters and power units
- Low-voltage power distribution for factory workshops and engineering projects
- Neutral line and power circuit color distinction wiring
- Complete electrical equipment assembly and heavy-load connection
- Energy industry, automation and heavy machinery internal wiring
| Model | JUK 16N/JUK 16N-BU |
| Certification | CE, CQC |
| Flammability Class | UL 94 V0 |
| Connection Standard | IEC 60947-7-1 |
| Zack Strip | ZB10 |
| Order Number | 1010.009/1010.023 |
| Size | T12.2×H54×W42.5 |
| Rated Current/Rated Voltage | 100A/800V |
| Cross Section | 2.5~25mm² |
| Connection Type | screw connection |
