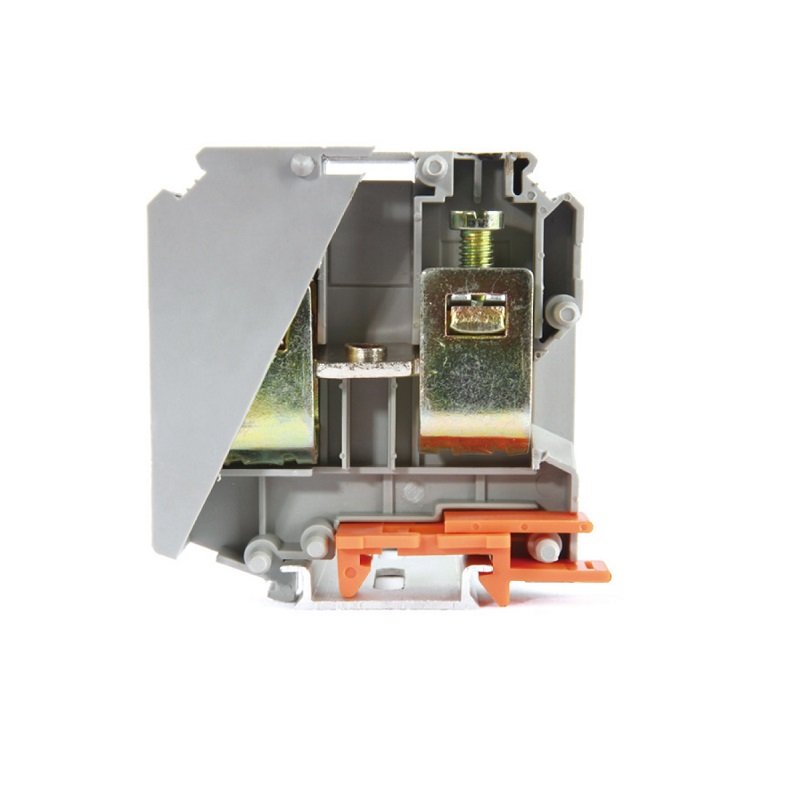

LEIPOLE JUKH 50 / JUKH 50-BU DIN Rail High Current Screw Terminal Block
LEIPOLE JUKH 50 and JUKH 50-BU are heavy-duty DIN rail terminal blocks for large cables and high-current scenarios. With reinforced clamping structure, high-quality conductive parts and flame-retardant housing, they ensure stable transmission, excellent heat resistance and vibration resistance. Color-coded designs achieve classified wiring, delivering long-lasting safety and reliability for industrial heavy-load power distribution.
- Part number: JUKH 50 / JUKH 50-BU
- Order code: 1010.011/1010.025
Product Overview
LEIPOLE JUKH 50 and JUKH 50-BU are heavy-duty high-current terminal blocks developed for large cross-section wire connection. Equipped with thickened high-conductivity metal parts and reinforced screw clamp structure, they support stable heavy-load operation with low heat generation. The high-grade flame-retardant insulation housing provides superior dielectric strength and aging resistance. Grey and blue color options facilitate clear circuit division, perfectly suited for heavy machinery, power distribution and industrial control systems.
Key Features & Advantages
- Reinforced screw clamping design, firm connection for large gauge cables, anti-vibration and anti-loosening.
- Premium flame-retardant engineering plastic, high temperature resistance and electrical insulation safety.
- Standard DIN rail installation, modular combination, easy mounting and later maintenance.
- Optimized internal heat dissipation structure, stable performance under long-term high current load.
- Dual color layout for standardized wiring identification, improving on-site management efficiency.
- Wide compatibility with jumpers, end covers and other series supporting accessories.
Technical Specifications
Adopt high-strength flame-retardant shell and high-purity conductive materials, heavy-duty screw connection method, standard DIN rail installation, meeting international low-voltage high-current industrial wiring standards.
Typical Applications
- High-current main circuit wiring in industrial power distribution cabinets
- Heavy equipment, mechanical engineering and power unit connection
- Large-scale factory low-voltage power distribution and electrical engineering
- Color-coded wiring for power lines and neutral lines
- Complete electrical equipment heavy-load assembly and connection
- Metallurgy, energy and automation industry internal power wiring
| Model | JUKH 50/JUKH 50-BU |
| Certification | CE, CQC |
| Flammability Class | UL 94 V0 |
| Connection Standard | IEC 60947-7-1 |
| Zack Strip | ZB10 |
| Order Number | 1010.011/1010.025 |
| Size | T20×H83.5×W70.5 |
| Rated Current/Rated Voltage | 150A/1000V |
| Cross Section | 16~50mm² |
| Connection Type | screw connection |
