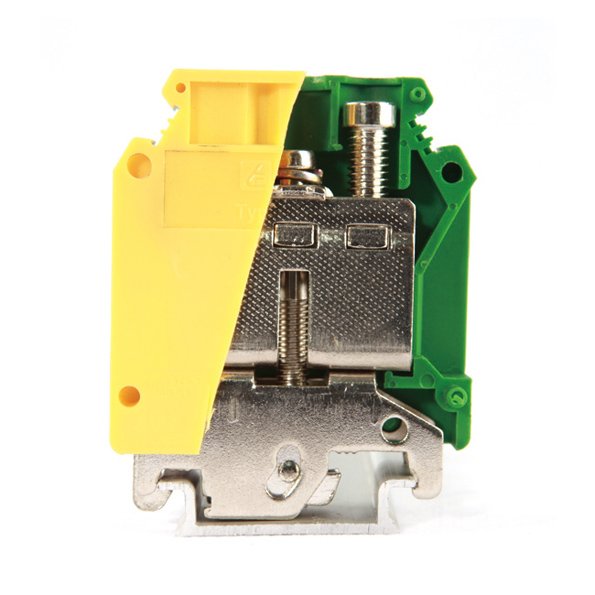

LEIPOLE JUSLKG 35 ground terminal block screw connection DIN rail mount industrial earthing unit

LEIPOLE JUSLKG 35 Ground Terminal Block Industrial Earthing 125A 10-35mm²

Request a quoteWhatsApp us

LEIPOLE JUSLKG 35 is a DIN rail-mounted ground terminal block featuring screw connection, 125A rated current, and 10-35mm² wire capacity. It adopts UL 94 V0 flame-retardant material, complies with IEC 60947-7-2 standards, and supports multiple DIN rails for stable industrial protective earthing.

  • Part number: JUSLKG 35
  • Order code: 1010.034

Product Overview

LEIPOLE JUSLKG 35 is a DIN rail mounted ground terminal block designed for industrial power distribution and protective earthing systems. It conforms to IEC 60947-7-2 connection standards and utilizes screw connection to provide stable and low-resistance earthing performance. The product holds UL 94 V0 flammability class, making it suitable for long-term reliable operation in industrial electrical cabinets and high-current grounding setups.

Key Features & Advantages

  • Complies with IEC 60947-7-2 international industrial connection standards
  • UL 94 V0 flame retardant housing ensures electrical safety
  • Screw connection structure for stable wire clamping and conduction
  • Equipped with ZB10 Zack strip for standardized wiring installation
  • Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types
  • Provides reliable protective earthing for medium to high current industrial circuits

Typical Applications

  • Protective earthing in industrial power distribution cabinets
  • High-current equipment grounding in automation production lines
  • Earthing connection for factory electrical control systems
  • Grounding circuit configuration for low-voltage power distribution devices
  • Industrial earthing wiring for electrical machinery and equipment
  • Power distribution earthing applications in manufacturing and automation fields
Model JUSLKG 35
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-2
Zack Strip ZB10
Order Number 1010.034
Size T15.2×H62×W50
Rated Current 125A
Cross Section 10~35mm²
Connection Type screw connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
