LEIPOLE JUSLKG 5 green-yellow grounding terminal block, DIN rail mounted, for industrial electrical equipment safety earthing and grounding wiring

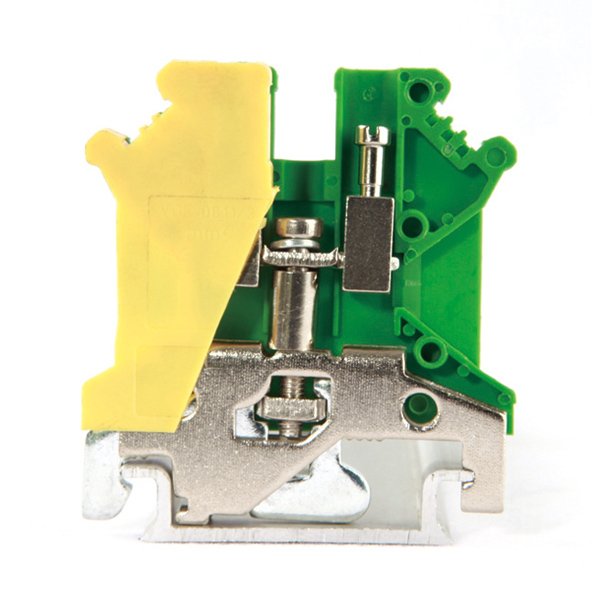

LEIPOLE JUSLKG 5 DIN Rail Protective Grounding Terminal Block

Name: LEIPOLE JUSLKG 5 DIN Rail Protective Grounding Terminal Block
Brand: LEIPOLE
SKU: JUSLKG 5

LEIPOLE JUSLKG 5 is a heavy-duty DIN rail grounding terminal block designed for reliable equipment earthing. Featuring sturdy screw clamping, high-conductivity internal parts and flame-retardant green-yellow housing, it delivers stable low-resistance grounding. Compact and easy to install, it meets global industrial safety standards for long-term protective wiring in various electrical systems.

Product Overview

LEIPOLE JUSLKG 5 is a heavy-duty DIN rail grounding terminal block engineered for equipment protective earthing. It adopts robust screw clamp connection to ensure low-resistance grounding contact and stable wire fixation against vibration and shock. The standard green-yellow housing complies with international grounding color norms, featuring excellent flame retardancy, dielectric strength and mechanical durability. Modular and space-saving, it supports flexible DIN rail installation and combination, ideal for standardized safety grounding in distribution cabinets, automation devices and industrial machinery.

Key Features & Advantages

Standard green-yellow appearance for clear grounding identification and electrical safety compliance.
Reinforced screw clamp structure for firm cable connection and long-term stable grounding performance.
High-grade flame-retardant insulation material with high temperature and insulation resistance.
Universal DIN rail mounting for quick assembly, disassembly and modular wiring expansion.
Optimized structural design for dense cabinet wiring and space-efficient layout.
Professional protective grounding design to secure electrical equipment and personnel safety.

Technical Specifications

Made of high-strength flame-retardant plastic and high-conductivity conductive components, with screw fastening connection and standard DIN rail installation, fully adapted to industrial low-voltage safety grounding requirements.

Typical Applications

Safety protective grounding for industrial control and power distribution cabinets
Equipment earthing connection for mechanical equipment and automated production lines
Grounding protection for electrical components, control units and power systems
Standardized green-yellow color-coded grounding wiring in industrial projects
Overall grounding system assembly for complete electrical equipment
New energy, HVAC and general industrial electrical safety grounding scenarios

Model	JUSLKG 5
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-2
Zack Strip	ZB6
Order Number	1010.030
Size	T6.2×H47×W42.5
Rated Current	34A
Cross Section	0.2~4mm²
Connection Type	screw connection
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
