Leipole Electric

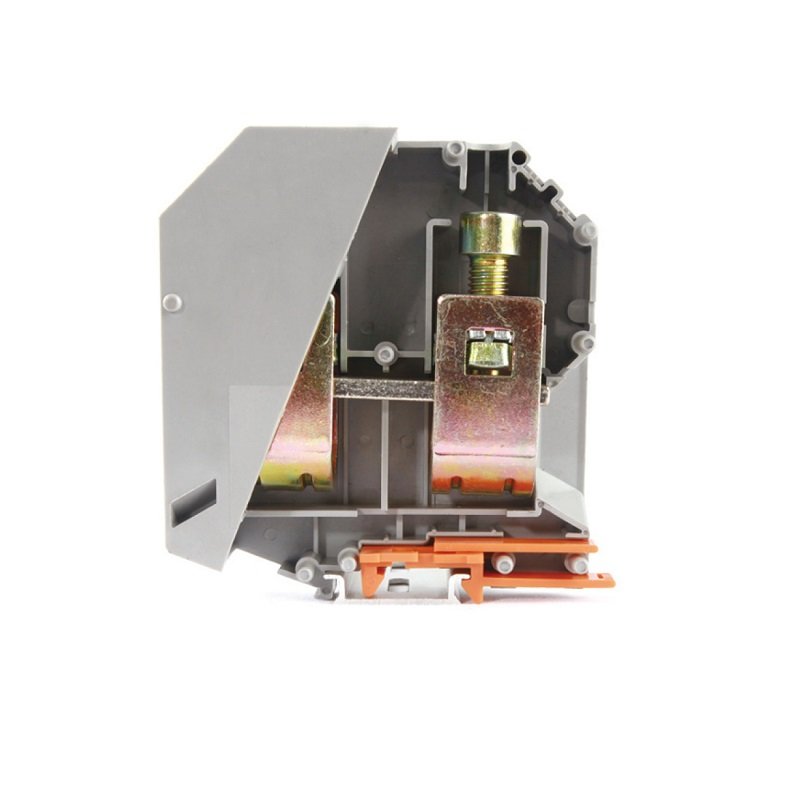

LEIPOLE JUKH 150 and JUKH 150-BU heavy-duty large cross-section terminal block, DIN rail mounted, for industrial high-power distribution cabinet wiring

LEIPOLE JUKH 150 / JUKH 150-BU DIN Rail Extra Large Current Screw Terminal Block

Request a quoteWhatsApp us

LEIPOLE JUKH 150 and JUKH 150-BU are extra large current DIN rail terminal blocks designed for ultra-heavy industrial loads and large cables. Built with thickened high-efficiency conductors, reinforced screw clamping and high-grade flame-retardant housing, they ensure low-resistance transmission, reliable heat dissipation and robust durability. Color-coded styles support orderly classified wiring, delivering supreme safety and stability for high-power industrial distribution.

  • Part number: JUKH 150 / JUKH 150-BU
  • Order code: 1010.013/1010.027

Product Overview

LEIPOLE JUKH 150 and JUKH 150-BU are extra large cross-section heavy-duty terminal blocks, customized for extreme high-current and heavy-load industrial conditions. Equipped with super thick high-conductivity copper conductors and enhanced screw clamp structure, they securely fasten large cables with low energy loss and stable current transmission. The high-performance flame-retardant insulated housing delivers superior high-temperature resistance, insulation protection and mechanical toughness. Grey and blue color variants realize clear circuit classification, perfectly applicable for large power distribution stations, heavy industry and high-power equipment systems.

Key Features & Advantages

  • Ultra-heavy reinforced screw clamping structure, applicable for 150mm² large cross-section wire connection.
  • Premium industrial flame-retardant material, excellent dielectric strength and long-term aging resistance.
  • Standard DIN rail mounting, modular design for flexible combination and easy on-site installation.
  • Expanded conductive structure and optimized heat dissipation design for stable heavy-load operation.
  • Color-coded configuration for power and neutral circuit differentiation, convenient for inspection and maintenance.
  • High mechanical strength and vibration resistance, adaptable to harsh industrial working environments.

Technical Specifications

Adopts high-strength flame-retardant plastic housing and high-purity thickened conductive materials, heavy-duty screw connection method, standard DIN rail installation, complying with international low-voltage high-current safety standards.

Typical Applications

  • Main high-power circuit connection for large industrial power distribution cabinets
  • Heavy industry, new energy and large mechanical equipment power wiring
  • Factory overall low-voltage heavy-current power distribution engineering
  • High-load equipment connection and neutral line standardized wiring
  • Complete electrical equipment ultra-heavy load assembly and connection
  • Metallurgical, mining and large automation power supply systems
Model JUKH 150/JUKH 150-BU
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-1
Zack Strip ZB10
Order Number 1010.013/1010.027
Size T31.5×H111.2×W100.1
Rated Current/Rated Voltage 309A/1000V
Cross Section 35~150mm²
Connection Type screw connection
