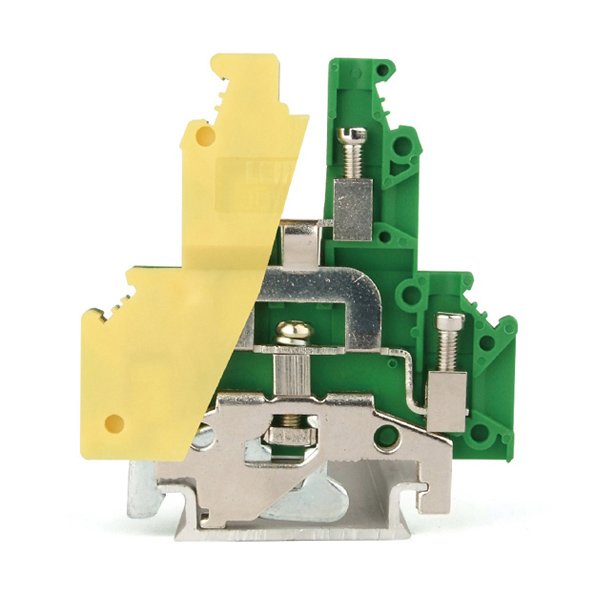

LEIPOLE JUKK5-PE ground terminal block screw connection DIN rail mount industrial earthing component

LEIPOLE JUKK5-PE Ground Terminal Block Industrial Earthing 34A 0.2-4mm²

Name: LEIPOLE JUKK5-PE Ground Terminal Block Industrial Earthing 34A 0.2-4mm²
Brand: LEIPOLE
SKU: JUKK5-PE

LEIPOLE JUKK5-PE is a DIN rail ground terminal block with screw connection, 34A rated current, 0.2-4mm² wire range, UL 94 V0 flammability class and IEC 60947-7-2 compliance for stable industrial earthing.

Product Overview

LEIPOLE JUKK5-PE is a DIN rail mounted ground terminal block developed for industrial power distribution and protective earthing. It complies with IEC 60947-7-2 connection standards and adopts screw connection structure to ensure stable and reliable earthing connection. The product possesses UL 94 V0 flammability class, suitable for long-term operation in industrial electrical enclosures and control systems.

Key Features & Advantages

Complies with IEC 60947-7-2 international industrial connection standards
UL 94 V0 flame retardant material for safe industrial use
Screw connection type provides stable wire fixation and conduction
Equipped with ZB6 Zack strip for standardized wiring
Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rails
Designed for protective earthing in small-scale industrial electrical systems

Typical Applications

Protective earthing in compact industrial control cabinets
Equipment earthing connection in light automation systems
Grounding circuit setup in small factory electrical installations
Earthing wiring for low-current control equipment
Industrial control system protective earthing
Power distribution earthing in light industrial and automation sectors

Model	JUKK5-PE
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-2
Zack Strip	ZB6
Order Number	1010.042
Size	T6.2×H63×W57
Rated Current	34A
Cross Section	0.2~4mm²
Connection Type	screw connection
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
