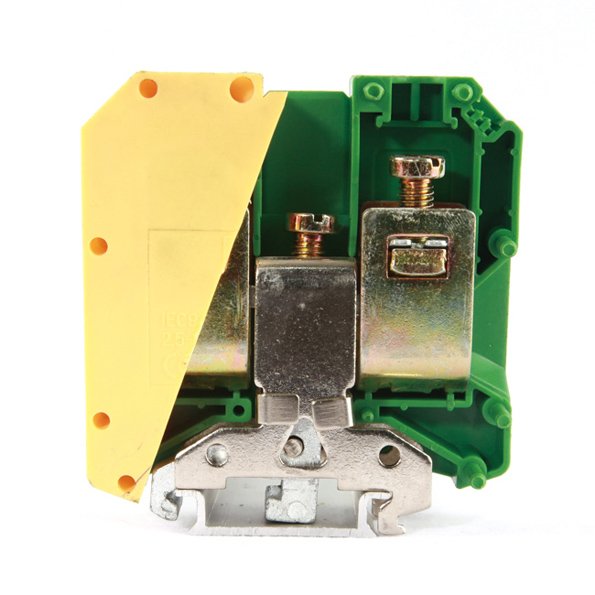

LEIPOLE JUSLKG 50 ground terminal block screw connection DIN rail mount industrial earthing part

LEIPOLE JUSLKG 50 Ground Terminal Block Industrial Earthing 150A 16-50mm²

Request a quoteWhatsApp us

LEIPOLE JUSLKG 50 is a DIN rail-mounted ground terminal block with screw connection, 150A rated current, and 16-50mm² wire range. It features UL 94 V0 flame-retardant material, complies with IEC 60947-7-2 standards, and supports multiple DIN rails for stable industrial earthing.

  • Part number: JUSLKG 50
  • Order code: 1010.035

Product Overview

LEIPOLE JUSLKG 50 is a DIN rail mounted ground terminal block built for industrial power distribution and protective earthing. It meets IEC 60947-7-2 connection standards and uses a screw connection structure to ensure stable and secure grounding performance. The product features UL 94 V0 flammability class, suitable for long-term use in industrial electrical enclosures and high-current earthing systems.

Key Features & Advantages

  • Complies with IEC 60947-7-2 international industrial connection standards
  • UL 94 V0 flame-retardant material for safe and stable operation
  • Screw connection design ensures reliable wire clamping and electrical conduction
  • Equipped with ZB10 Zack strip for standardized wiring connection
  • Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types
  • Designed for high-current protective earthing in industrial power applications

Typical Applications

  • Protective earthing in heavy-duty industrial power distribution cabinets
  • High-power equipment grounding in automated manufacturing systems
  • Earthing connection for large-scale electrical control panels
  • Grounding circuit construction for low-voltage power distribution units
  • Industrial earthing wiring for power equipment and machinery
  • Power distribution earthing in manufacturing and automation industries
Model JUSLKG 50
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-2
Zack Strip ZB10
Order Number 1010.035
Size T20×H83.5×W71
Rated Current 150A
Cross Section 16~50mm²
Connection Type screw connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
