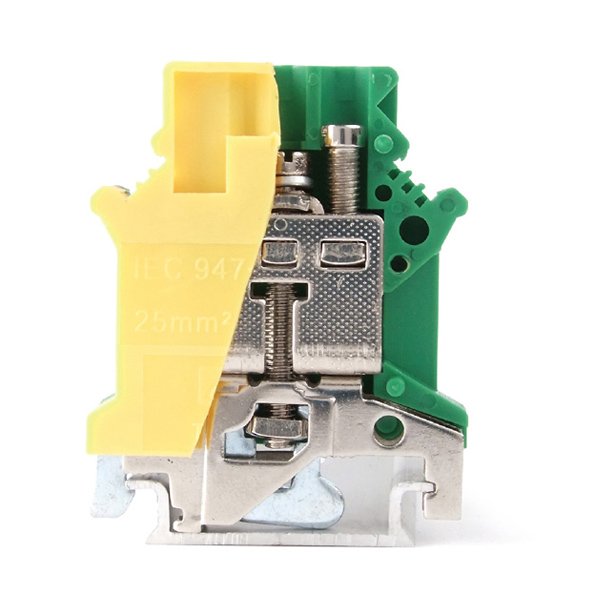

LEIPOLE JUISLKG 16 Ground Terminal Block Industrial Earthing 101A 2.5-25mm²
LEIPOLE JUISLKG 16 is a DIN rail-mounted ground terminal block with screw connection, 101A rated current, 2.5-25mm² wire range, UL 94 V0 flammability class and IEC 60947-7-2 compliance for reliable industrial earthing.
- Part number: JUISLKG 16
- Order code: 1010.036
Product Overview
LEIPOLE JUISLKG 16 is a DIN rail mounted ground terminal block built for industrial power distribution and protective earthing. It conforms to IEC 60947-7-2 connection standards and uses a screw connection structure to ensure stable and secure earthing performance. The product carries UL 94 V0 flammability class, suitable for consistent operation in industrial electrical enclosures and distribution systems.
Key Features & Advantages
- Complies with IEC 60947-7-2 international industrial connection standards
- UL 94 V0 flame-retardant material supports safe long-term use
- Screw connection design delivers reliable wire clamping and electrical conduction
- Equipped with ZB10 Zack strip for standardized and stable wiring
- Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types
- Designed for protective earthing in medium-current industrial electrical setups
Typical Applications
- Protective earthing in industrial power distribution cabinets
- Equipment grounding in automated production systems
- Earthing connection for electrical control panels and units
- Grounding circuit setup in factory electrical installations
- Industrial electrical system protective earthing
- Power distribution earthing in manufacturing and automation industries
| Model | JUISLKG 16 |
| Certification | CE, CQC |
| Flammability Class | UL 94 V0 |
| Connection Standard | IEC 60947-7-2 |
| Zack Strip | ZB10 |
| Order Number | 1010.036 |
| Size | T12.2×H47×W42.5 |
| Rated Current | 101A |
| Cross Section | 2.5~25mm² |
| Connection Type | screw connection |
| Din Rail Type | NS 35/7.5, NS 35/15, NS 32 |
