LEIPOLE JXB-16/35/JXB-16/35-BU Terminal Blocks, Industrial Electrical Connection, 76A 750V
LEIPOLE JXB-16/35/JXB-16/35-BU terminal blocks provide stable industrial electrical connections with 76A/750V ratings, 0.5–16mm² wire capacity, UL 94 V0 flame resistance and secure screw connections. They fit standard DIN rails and are widely used in manufacturing, automation and power distribution systems.
- Part number: JXB-16/35/JXB-16/35-BU
- Order code: 1011.072/1011.079
Product Overview

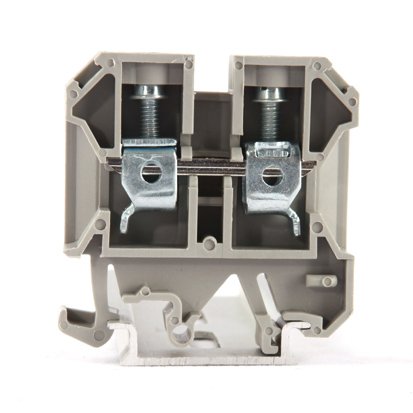

LEIPOLE JXB-16/35/JXB-16/35-BU terminal blocks are industrial electrical connection components manufactured to meet IEC 60947-7-1 standards. They feature a durable screw connection design and standardized dimensions for stable power transmission and orderly wiring in industrial electrical systems.
Key Features & Advantages
- Rated 76A/750V, supports wire cross-section range of 0.5mm² to 16mm²
- UL 94 V0 inflammability class for reliable operational safety
- Standard screw connection ensures secure contact and long-term stability
- Compatible with NS 35/7.5, NS 35/15, NS 32 DIN rail types for flexible installation
- Supports matching accessories including end covers, jumper bars, end clamps and marking labels
Typical Applications
- High-power manufacturing machinery electrical systems
- Industrial automation drive and control cabinets
- Medium-to-high power distribution cabinets and enclosures
- Electrical control panels for heavy-duty equipment
- General industrial power wiring and circuit management
| Model | JXB-16/35 / JXB-16/35-BU |
| Certification | CE, CQC |
| Flammability Class | UL 94 V0 |
| Connection Standard | IEC 60947-7-1 |
| Order Number | 1011.072 / 1011.079 |
| Size | T12×H53.5×W51 |
| Rated Current/Rated Voltage | 76A / 750V |
| Cross Section | 0.5~16mm² |
| Connection Type | Screw Connection |
| Din Rail Type | NS 35/7.5, NS 35/15, NS 32 |
