LEIPOLE JUSLKG 16 ground terminal block screw connection DIN rail mount industrial earthing component

LEIPOLE JUSLKG 16 Ground Terminal Block Industrial Power Distribution 101A 2.4-25mm²

Name: LEIPOLE JUSLKG 16 Ground Terminal Block Industrial Power Distribution 101A 2.4-25mm²
Brand: LEIPOLE
Availability: InStock

Request a quote WhatsApp us

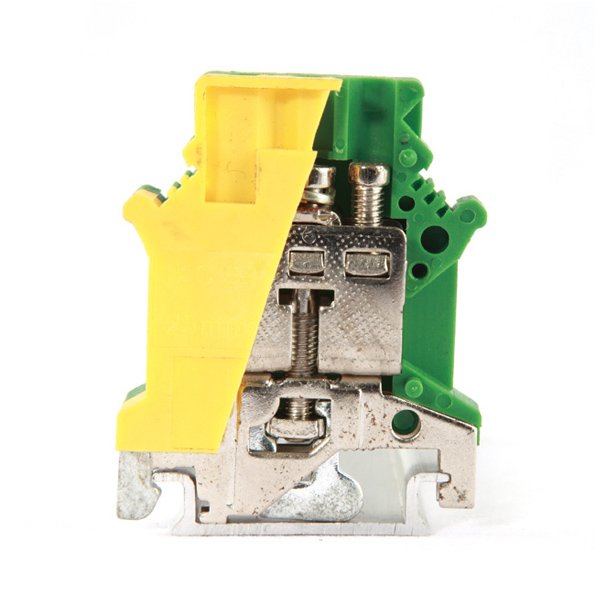

LEIPOLE JUSLKG 16 is a DIN rail‑mounted ground terminal block designed for industrial power distribution and protective earthing. It uses a secure screw connection, supports 2.4–25 mm² wires, and delivers a 101A rated current. Built with UL 94 V0 flame‑retardant materials and compliant with IEC 60947‑7‑2 standards, it ensures stable, safe earthing performance in automation, manufacturing, and low‑voltage electrical systems.

Add to cart

Product Overview

LEIPOLE JUSLKG 16 is a DIN rail mounted ground terminal block developed for industrial power distribution and protective earthing. It complies with IEC 60947-7-2 connection standards and adopts screw connection structure to ensure stable and reliable earthing connection. The product possesses UL 94 V0 flammability class, suitable for long-term operation in industrial electrical enclosures and power distribution systems.

Key Features & Advantages

Complies with IEC 60947-7-2 international industrial connection standards
UL 94 V0 flame retardant material for safe industrial use
Screw connection type provides stable wire fixation and conduction
Equipped with ZB10 Zack strip for standardized wiring
Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rails
Designed for protective earthing in industrial power distribution scenarios

Typical Applications

Protective earthing in industrial power distribution cabinets
Equipment earthing connection in automation systems
Grounding circuit setup in factory electrical installations
Earthing wiring for low-voltage power distribution equipment
Industrial electrical system protective earthing
Power distribution earthing in manufacturing and automation industries

Product Attribute	Value
JUSLKG 16 Parameters
Model	JUSLKG 16
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-2
Zack Strip	ZB10
Order Number	1010.033
Size	T12.2×H47×W43
Rated Current	101A
Cross Section	2.4~25mm²
Connection Type	screw connection
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
