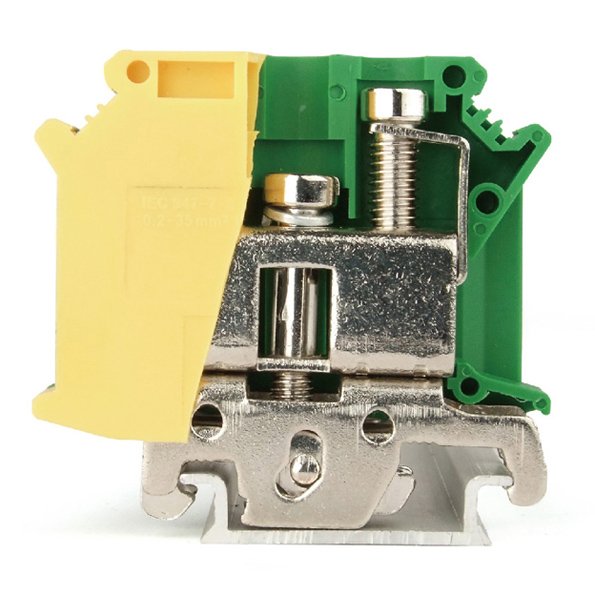

LEIPOLE JUISLKG 35 ground terminal block screw connection DIN rail mount industrial earthing component

LEIPOLE JUISLKG 35 Ground Terminal Block Industrial Earthing 125A 10-35mm²

Name: LEIPOLE JUISLKG 35 Ground Terminal Block Industrial Earthing 125A 10-35mm²
Brand: LEIPOLE
SKU: JUISLKG 35

Request a quote WhatsApp us

LEIPOLE JUISLKG 35 is a DIN rail-mounted ground terminal block with screw connection, 125A rated current, 10-35mm² wire range, UL 94 V0 flammability class and IEC 60947-7-2 compliance for safe and stable industrial earthing.

Product Overview

LEIPOLE JUISLKG 35 is a DIN rail mounted ground terminal block designed for industrial power distribution and protective earthing. It complies with IEC 60947-7-2 connection standards and features screw connection for stable and consistent earthing performance. The unit carries UL 94 V0 flammability class and is built for reliable operation in industrial electrical environments.

Key Features & Advantages

Complies with IEC 60947-7-2 international industrial connection standards
UL 94 V0 flame retardant material ensures safe operation
Screw connection structure provides firm wire clamping and stable conduction
Equipped with ZB10 Zack strip for standardized wiring
Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types
Delivers reliable protective earthing for medium to high current industrial circuits

Typical Applications

Protective earthing in industrial power distribution cabinets
Equipment grounding in automation and manufacturing systems
Earthing connection for electrical control panels
Grounding circuit installation in factory electrical systems
Industrial electrical system protective earthing
Power distribution earthing in automation and manufacturing sectors

Model	JUISLKG 35
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-2
Zack Strip	ZB10
Order Number	1010.037
Size	T15.2×H51×W55
Rated Current	125A
Cross Section	10~35mm²
Connection Type	screw connection
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
