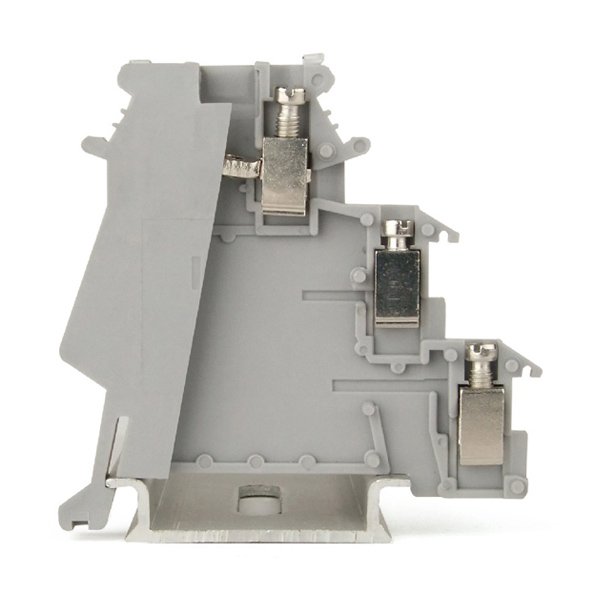

LEIPOLE JDIK 1.5 Feed-through Terminal Block
LEIPOLE JDIK 1.5 is a standard DIN rail feed-through terminal block with classic screw connection design. It is widely used in industrial control and low-voltage distribution circuits, featuring stable connection, qualified flame retardant performance and compact size, to meet daily industrial wiring and circuit connection demands.
- Part number: JDIK 1.5
- Order code: 1010.059
Product Overview
LEIPOLE JDIK 1.5 is a standard feed-through terminal block with screw connection, designed for DIN rail mounting. It is applied to industrial control and low-voltage power distribution circuits, with qualified insulating housing and conductive parts to ensure stable electrical connection in regular industrial environments.
Key Features & Advantages
- Adopts standard screw clamping connection for reliable wire fixing
- Made of flame retardant insulating material for daily electrical safety
- Standard DIN rail installation, easy for assembly and combination
- Compact structure, suitable for dense cabinet wiring layout
- Stable conductive performance, suitable for long-term continuous operation
Typical Applications
- Industrial control cabinet internal wiring and circuit transition
- Low voltage control circuit connection for automation equipment
- Electrical panel and distribution box conventional wiring
- Mechanical equipment internal circuit connection and arrangement
- General industrial low current wiring occasions
| Model | JDIK 1.5 |
| Certification | CE, CQC |
| Flammability Class | UL 94 V0 |
| Connection Standard | IEC 60947-7-1 |
| Zack Strip | ZB5 |
| Order Number | 1010.059 |
| Size | T6.2×H55.5×W56 |
| Rated Current/Rated Voltage | 26A/250V |
| Cross Section | 0.2~4mm² |
| Connection Type | screw connection |
