JUSLKG 3 ground terminal block, UL94 V0, screw connection, 34A rated current, 0.2-4mm² wire range

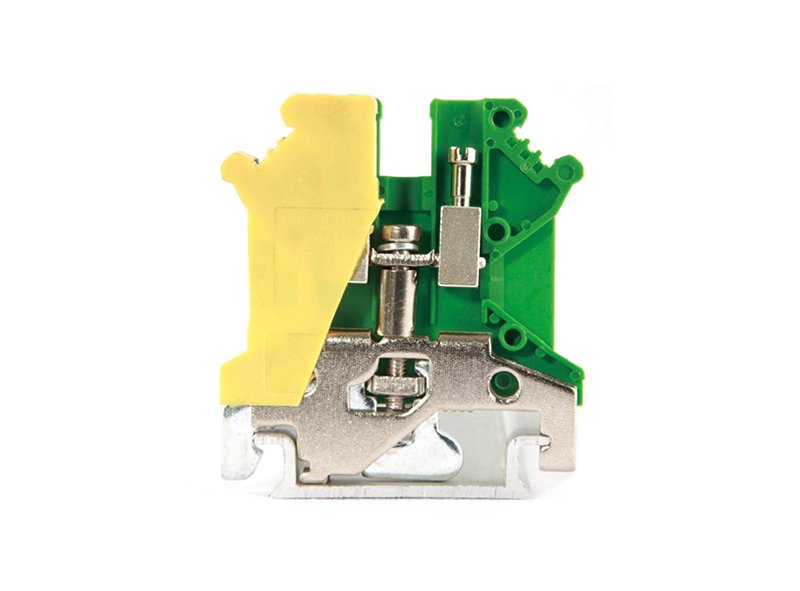

LEIPOLE JUSLKG 3 DIN Rail Protective Grounding Terminal Block

Request a quoteWhatsApp us

LEIPOLE JUSLKG 3 is a professional DIN rail mounting grounding terminal block in standard green-yellow color. It adopts durable screw clamp connection and high-quality flame-retardant material to provide low-resistance and stable earthing. Compact and easy to install, it meets industrial safety standards, delivering effective protective grounding for various electrical control and distribution systems.

  • Part number: JUSLKG 3
  • Order code: 1010.029

Product Overview

LEIPOLE JUSLKG 3 is a dedicated DIN rail grounding terminal block for equipment protective earthing and safety grounding circuits. Adopting sturdy screw clamp connection, it ensures low-resistance, stable grounding contact and prevents loosening under industrial vibration. The standard green-yellow insulating shell conforms to international grounding color regulations, with superior flame retardancy, insulation strength and mechanical toughness. Compact modular design supports quick DIN rail mounting and flexible combination, suitable for standardized grounding wiring in control cabinets, distribution boxes and automation facilities.

Key Features & Advantages

  • Standard green-yellow color marking for obvious grounding identification and safety regulation compliance.
  • Reliable screw clamping structure, firmly fixes wires for stable long-term grounding performance.
  • High-quality flame-retardant engineering plastic, high temperature resistance and electrical safety.
  • Universal standard DIN rail mounting, easy assembly, disassembly and modular expansion.
  • Space-saving compact structure, suitable for dense cabinet wiring arrangement.
  • Professional grounding design to effectively protect electrical equipment and operators.

Technical Specifications

Constructed with flame-retardant insulating material and high-conductivity metal parts, equipped with screw fastening connection and standard DIN rail structure, tailored for industrial low-voltage safety grounding scenarios.

Typical Applications

  • Protective grounding of industrial control cabinets and power distribution enclosures
  • Equipment earthing for mechanical manufacturing and automated production facilities
  • Safety grounding connection for electrical components and power control units
  • Standardized color-coded grounding wiring for electrical engineering projects
  • Complete electrical equipment grounding system layout and assembly
  • HVAC, environmental protection and general industrial electrical grounding occasions
Model JUSLKG 3
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-2
Zack Strip ZB5
Order Number 1010.029
Size T5.2×H47×W42.5
Rated Current 34A
Cross Section 0.2~4mm²
Connection Type screw connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
