LEIPOLE air filtration fan FKL5525-150
LEIPOLE 120mm fan filter small mini size FKL55
LEIPOLE purifying fan FKL55-1 YELLOW

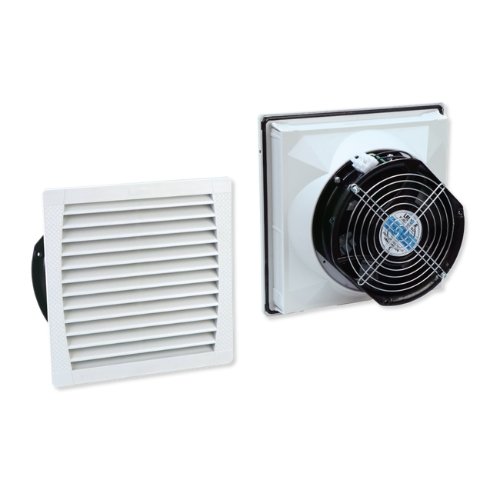

Slim Design Filter Fan 370m³/h (218CFM) Enclosure | FKL5525-150.230

Designed for superior cooling efficiency, LEIPOLE’s FKL55 series features a slim, sleek housing that can be seamlessly integrated into a variety of chassis settings. Combining advanced airflow technology with energy-saving design, this series is ideal for chassis thermal management systems, providing powerful cooling performance while minimizing energy consumption.
  • Part number: FKL5525-150.230
  • Order code: 2025.009/2025.033
  • Color code: RAL7035/RAL7032
Add to cart
Comprehensive Fan Filter for Precision Ventilation and Filtration Applications

  • Advanced FFU (Fan Filter Unit) systems combining motor, blower, and multi-stage filtration for optimal air purification ventilation
  • Professional DC 12V/24V/48V and AC 115V/230V ventilation fans designed for control panels and electrical enclosures with efficient cooling performance
  • Specialized box fan filter assemblies for industrial and agricultural air filtration needs
  • Complete ventilation solutions for sensitive equipment including medical devices, OEM machinery, and laboratory environments
  • Customizable control panel ventilation fans with various mounting options and airflow configurations
  • Available airflow ranges from 20 CFM to 500 CFM to meet diverse application requirements
  • Easy-to-install designs with tool-free mounting options for quick maintenance
  • Pre-configured FFU packages with optimized filter media for specific contamination control needs
  • Temperature and airflow monitoring options available for critical applications



wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Product Attribute Value
1 Part Number FKL5525-150.230
2 Color RAL7035/RAL7032
3 Order Code 2025.009/2025.033
4 Fan Model F2E-150S-230
5 Rate Voltage 230V AC
6 Air Flow 230/200 m³/h (IP54)
7 Rated Current 0.29/0.27 A
8 Power 43/40 W
9 Motor Type Shaded-Pole Motor
10 Noise Level 58 dB
11 Exit Filter FKL5525.300
12 Dimension 250x250mm
13 Cut-out Size 224mmx224mm
