LEIPOLE ffu fan FKL5526-D
LEIPOLE 120mm fan filter small mini size FKL55

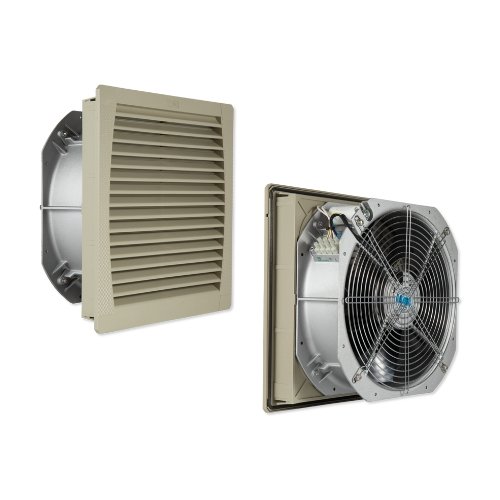

LEIPOLE air purifier fan Slim Filter Fan FKL5526-D-1

Low Profile High Flow Fan 1800m³/h (1060CFM) IP54/55 | FKL5526.230-D

Designed for superior cooling efficiency, LEIPOLE’s FKL55 series features a slim, sleek housing that can be seamlessly integrated into a variety of chassis settings. Combining advanced airflow technology with energy-saving design, this series is ideal for chassis thermal management systems, providing powerful cooling performance while minimizing energy consumption.
  • Part number: FKL5526.230-D
  • Order code: 2025.018/2025.042
  • Color code: RAL7035/RAL7032
Add to cart
Comprehensive Fan Filter for Precision Ventilation and Filtration Applications

  • Advanced FFU (Fan Filter Unit) systems combining motor, blower, and multi-stage filtration for optimal air purification ventilation
  • Professional DC 12V/24V/48V and AC 115V/230V ventilation fans designed for control panels and electrical enclosures with efficient cooling performance
  • Specialized box fan filter assemblies for industrial and agricultural air filtration needs
  • Complete ventilation solutions for sensitive equipment including medical devices, OEM machinery, and laboratory environments
  • Customizable control panel ventilation fans with various mounting options and airflow configurations
  • Available airflow ranges from 20 CFM to 500 CFM to meet diverse application requirements
  • Easy-to-install designs with tool-free mounting options for quick maintenance
  • Pre-configured FFU packages with optimized filter media for specific contamination control needs
  • Temperature and airflow monitoring options available for critical applications



wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Product Attribute Value
1 FKL5526.230-D FK9922.230
2 RAL7035/RAL7032 RAL7035
3 2025.018/2025.042 2023.001
4 F2E-3208-230 F2E-120S-230
5 230V AC 230V AC
6 1038/1056 m³/h (IP54) 72/75 m³/h (IP54)
7 0.50/0.70 A 0.12/0.10A
8 119/153 W 20W
9 Shaded-Pole Motor Shaded-pole motor
10 68/70 dB 50/52dB
11 FKL5526.300 FK9922.300
12 320x320mm 148.5*148.5mm
13 292mm x 292mm 124*124mm
