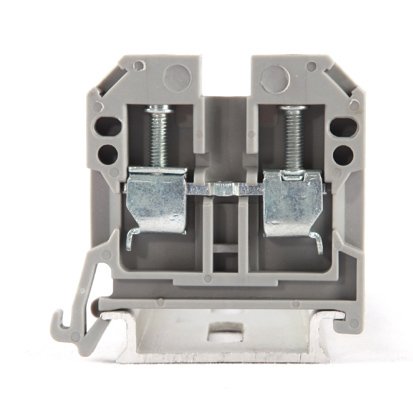

LEIPOLE JXB-4/35/JXB-4/35-BU screw connection terminal block, DIN rail mount, 0.2-4mm² cross section, industrial electrical wiring component

LEIPOLE JXB-4/35/JXB-4/35-BU Terminal Blocks, Industrial Electrical Connection, 34A 750V

Request a quoteWhatsApp us

LEIPOLE JXB-4/35/JXB-4/35-BU terminal blocks provide stable industrial electrical connections with 34A/750V ratings, 0.2–4mm² wire capacity, UL 94 V0 flame resistance and secure screw connections. They are compatible with standard DIN rails and widely used in manufacturing, automation and power distribution systems.

  • Part number: JXB-4/35/JXB-4/35-BU
  • Order code: 1011.069/1011.076

Product Overview

LEIPOLE JXB-4/35/JXB-4/35-BU terminal blocks are industrial-grade electrical connection components manufactured in compliance with IEC 60947-7-1 standards. They adopt a reliable screw connection structure, with a compact dimension of T6.5×H45×W45mm, providing stable and secure wiring solutions for various electrical control applications.

Key Features & Advantages

  • Rated at 34A current and 750V voltage, supporting wire cross‑section range from 0.2mm² to 4mm²
  • UL 94 V0 inflammability class effectively improves operational safety in industrial environments
  • Standard screw connection design maintains stable electrical contact and extends service life
  • Fully compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types for flexible installation
  • Supports matching accessories including end covers, centre type jumper bars, end clamps and continuous printing numbers

Typical Applications

  • Manufacturing equipment electrical wiring and connection
  • Industrial automation control systems
  • Power distribution cabinets and boxes
  • Electrical control panels and enclosures
  • General industrial electrical connection and management
Model JXB-4/35 / JXB-4/35-BU
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-1
Order Number 1011.069 / 1011.076
Size T6.5×H45×W45
Rated Current/Rated Voltage 34A / 750V
Cross Section 0.2~4mm²
Connection Type Screw Connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
