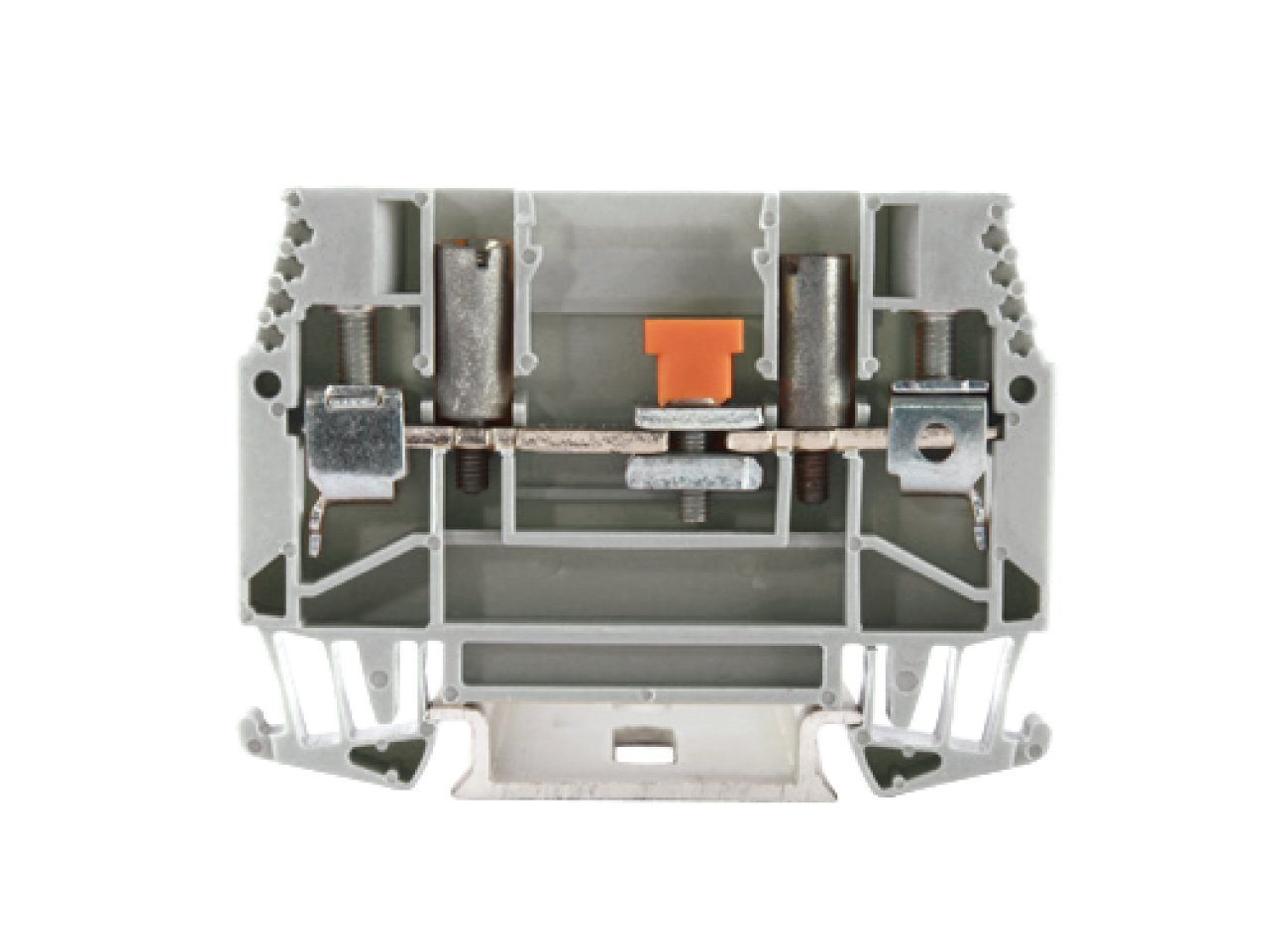

LEIPOLE JWTL 6/1 testing disconnect terminal block, DIN rail mount, 0.75–6mm² cross section, industrial wiring component

LEIPOLE JWTL 6/1 Terminal Block, Industrial Testing Connection, 41A 400V

Name: LEIPOLE JWTL 6/1 Terminal Block, Industrial Testing Connection, 41A 400V
Brand: LEIPOLE
Availability: InStock

Request a quote WhatsApp us

LEIPOLE JWTL 6/1 testing disconnect terminal block provides 41A/400V rated performance, 0.75–6mm² wire capacity, UL 94 V0 flame resistance and screw connection. It supports circuit testing and fits standard DIN rails for industrial electrical maintenance.

Add to cart

Product Overview

LEIPOLE JWTL 6/1 is a testing disconnect terminal block designed for industrial electrical systems. It is produced in compliance with IEC 60947-7-1 standards and uses screw connection to provide stable and testable wiring for equipment maintenance and detection.

Key Features & Advantages

Rated 41A/400V, supports wire cross-section range from 0.75mm² to 6mm²
UL 94 V0 inflammability class for safe operation in industrial environments
Testing disconnect design for convenient circuit detection and maintenance
Standard screw connection ensures stable electrical contact and long service life
Compatible with NS 35/7.5, NS 35/15, NS 32 DIN rail types for flexible installation
Supports matching accessories including end covers, jumper bars, end clamps and marking labels

Typical Applications

Industrial electrical control system circuit testing
Manufacturing equipment maintenance and debugging terminals
Automation cabinet circuit detection and inspection
Power distribution box testing and wiring management
Electrical systems requiring regular line detection

Product Attribute	Value
JWTL 6/1 Parameters
Model	JWTL 6/1
Product Type	Testing End
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-1
Order Number	1011.084
Size	T7.9×H48×W56
Rated Current/Rated Voltage	41A/400V
Cross Section	0.75~6mm²
Connection Type	Screw Connection
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
