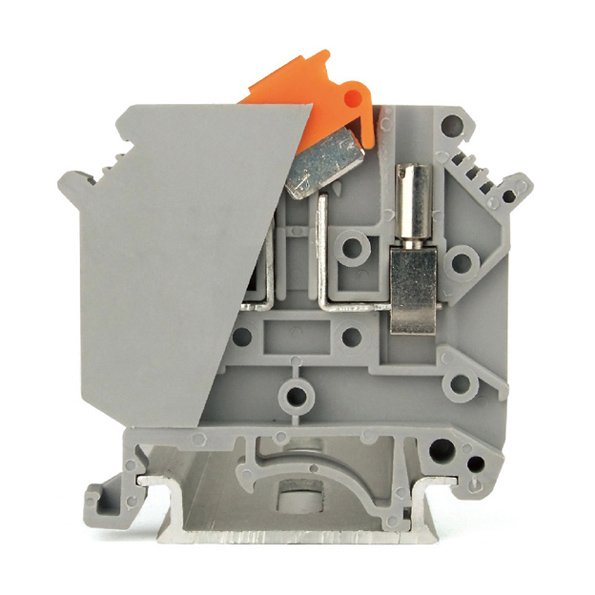

LEIPOLE JUK 5-MTK-P/P Test Disconnect Terminal Block Industrial Wiring 16A 0.2-4mm²
LEIPOLE JUK 5-MTK-P/P is a DIN rail-mounted test disconnect terminal block with screw connection, 16A rated current, 0.2-4mm² wire range, UL 94 V0 flammability class and IEC 60947-7-1 compliance for industrial circuit testing.
- Part number: JUK 5-MTK-P/P
- Order code: 1010.062
Product Overview
LEIPOLE JUK 5-MTK-P/P is a test disconnect terminal block designed for industrial electrical control and power distribution systems. It complies with IEC 60947-7-1 connection standards and uses screw connection to deliver stable wiring and reliable circuit test and disconnection functions. The product features UL 94 V0 flammability class for safe operation in electrical enclosures and control panels.
Key Features & Advantages
- Complies with IEC 60947-7-1 international industrial connection standards
- UL 94 V0 flame-retardant material ensures electrical safety
- Screw connection structure provides firm wire clamping and stable conductivity
- Equipped with ZB6 Zack strip for standardized and convenient wiring
- Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types
- Supports circuit testing, disconnection and maintenance in industrial control systems
Typical Applications
- Test and disconnection in industrial control cabinets
- Wiring and circuit maintenance for automation equipment
- Control circuit connection in factory electrical distribution systems
- Low-current circuit test and protection for electrical devices
- Industrial electrical system test and wiring management
- Control circuit applications in automation and manufacturing industries
| Model | JUK 5-MTK-P/P |
| Certification | CE, CQC |
| Flammability Class | UL 94 V0 |
| Connection Standard | IEC 60947-7-1 |
| Zack Strip | ZB6 |
| Order Number | 1010.062 |
| Size | T6.2×H62×W51 |
| Rated Current/Rated Voltage | 16A/800V |
| Cross Section | 0.2~4mm² |
| Connection Type | screw connection |
| Din Rail Type | NS 35/7.5, NS 35/15, NS 32 |
