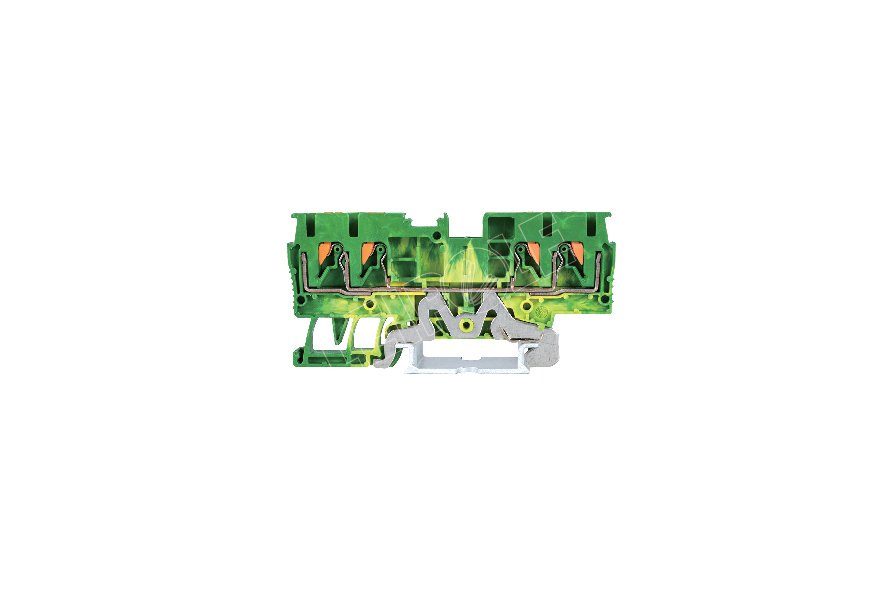

LEIPOLE JPT 2.5-QU-PE Ground Terminal Block DIN Rail Mount Industrial Earthing

LEIPOLE JPT 2.5-QU-PE grounding terminal block, screw connection design, standard DIN rail mounting for industrial earthing

LEIPOLE JPT 2.5-QU-PE Ground Terminal Block DIN Rail Mount Industrial Earthing

LEIPOLE JPT 2.5-QU-PE professional earthing terminal block adopts stable screw connection, with UL 94 V0 flame retardant grade and IEC 60947-7-2 certification. It supports 0.5–4mm² wire connection and is compatible with multiple specifications of DIN rails, perfectly meeting reliable protective earthing demands in industrial environments.

Add to cart

Product Overview

LEIPOLE JPT 2.5-QU-PE is a professional protective earthing terminal block adapted for standard DIN rail installation. Specially designed for industrial low-voltage electrical grounding requirements, it adopts high-performance screw connection structure to achieve firm and durable earthing connection. Qualified structural design and insulating materials guarantee safe and stable grounding performance in various industrial wiring scenarios.

Key Features & Advantages

Screw connection type for firm clamping and reliable earthing wiring

Flammability class UL 94 V0 for excellent fire resistance and safety

Fully compliant with IEC 60947-7-2 industrial grounding standard

Wide compatibility with NS 35/7.5, NS 35/15, NS 32 DIN rails

Applicable for 0.5–4mm² wire cross-section for diversified wiring needs

Typical Applications

Protective earthing connection inside industrial control cabinets

System earthing wiring for electrical panels and distribution boxes

Safety grounding connection of automation control equipment

Earthing configuration for low-voltage industrial electrical systems

Stable protective grounding for mechanical and industrial facilities

Product Attribute	Value
JPT 2.5-QU-PE Parameters
Model	JPT 2.5-QU-PE
Certification	CE
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-1
Zack Strip	ZB5
Order Number	1012.063
Size	T5.2×H78.7×W38
Cross Section	0.5~4mm²
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
