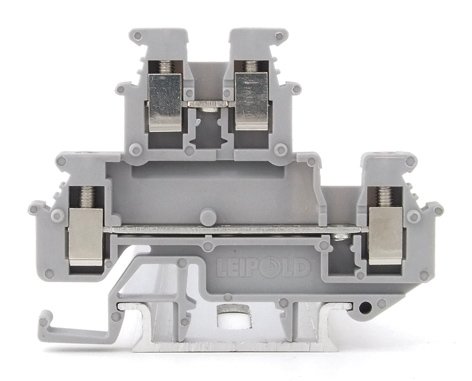

LEIPOLE JMBKKB 2.5 screw connection terminal block DIN rail mount industrial wiring component

LEIPOLE JMBKKB 2.5 Terminal Block Industrial Wiring 24A 0.2-4mm²

Name: LEIPOLE JMBKKB 2.5 Terminal Block Industrial Wiring 24A 0.2-4mm²
Brand: LEIPOLE
SKU: JMBKKB 2.5

LEIPOLE JMBKKB 2.5 is a DIN rail‑mounted terminal block with screw connection, 24A rated current, and 0.2–4 mm² wire range. It features UL 94 V0 flame‑retardant material, complies with IEC 60947‑7‑1 standards, and supports multiple DIN rails for stable industrial control and compact power distribution.

Product Overview

LEIPOLE JMBKKB 2.5 is a DIN rail‑mounted terminal block developed for industrial control and power distribution wiring. It complies with IEC 60947‑7‑1 connection standards and uses a stable screw connection structure. The product carries UL 94 V0 flammability class and is built for reliable performance in electrical enclosures, control panels, and light industrial equipment.

Key Features & Advantages

Complies with IEC 60947‑7‑1 international industrial connection standards
UL 94 V0 flame‑retardant material ensures safe long‑term operation
Screw connection provides secure wire clamping and consistent electrical conductivity
Equipped with ZB5 Zack strip for standardized and stable wiring setup
Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types
Suitable for low‑current control circuit connection and compact wiring systems

Typical Applications

Wiring connection in compact industrial control cabinets
Internal wiring for automation and electrical devices
Control circuit distribution for factory electrical panels
Low‑current wiring for light industrial equipment
Small‑scale electrical system connection and management
Control wiring for machinery and automation systems

Model	JMBKKB 2.5
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-1
Zack Strip	ZB5
Order Number	1010.052
Size	T5.2×H52×W62
Rated Current/Rated Voltage	24A/500V
Cross Section	0.2~4mm²
Connection Type	screw connection
