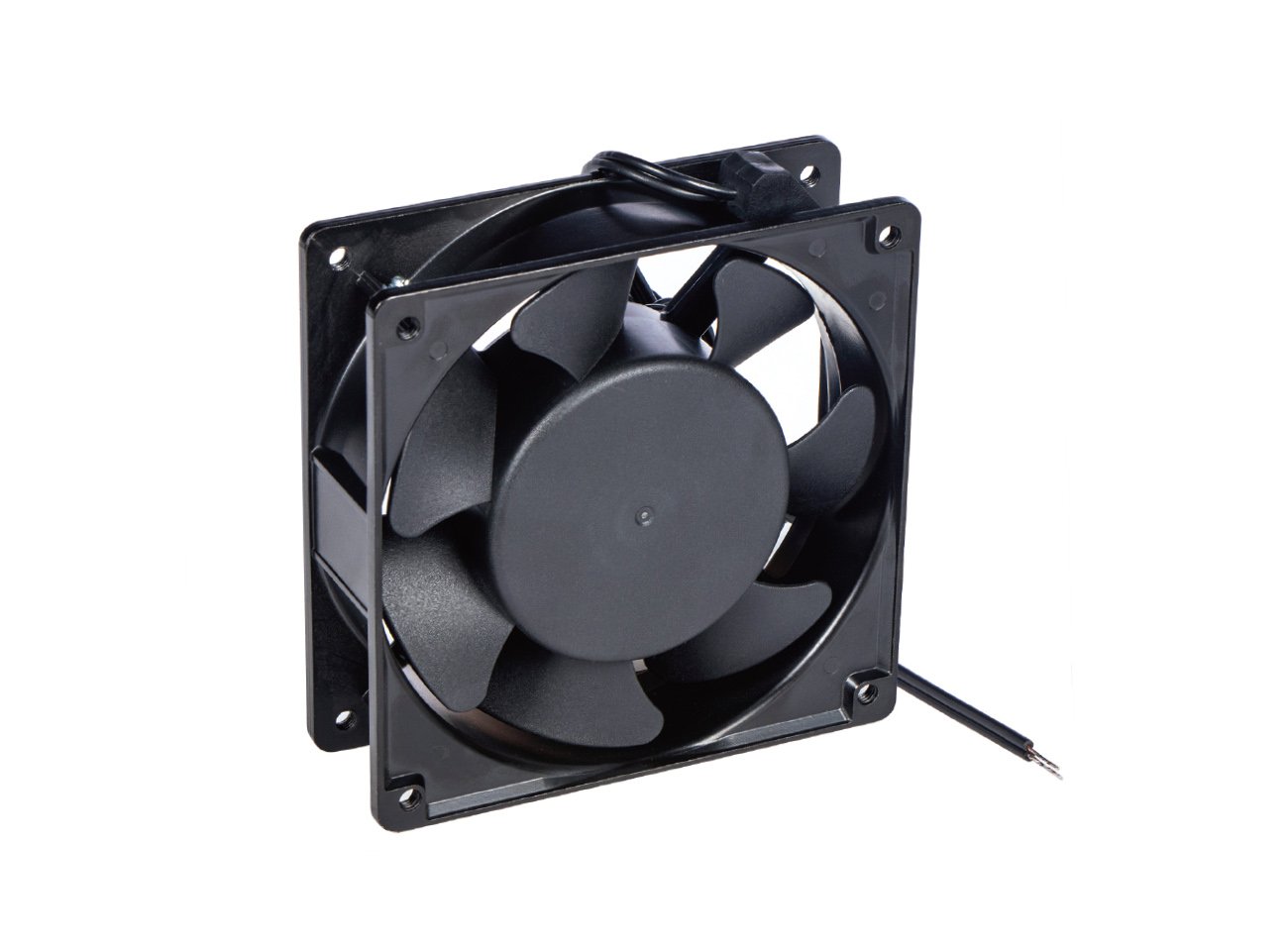

LEIPOLE F3E-12038S/B-230 119.5×119.5mm Series Axial Cooling Fan, 230V AC
119.5×119.5mm industrial axial cooling fan with sleeve/ball bearing, 230V AC power supply, 145-160m³/h airflow, IEC Grade B insulation rating, stable continuous operation for industrial cabinet and electronic device heat dissipation.
- Part number: F3E-12038S/B-230
- Order code: 2018.053 / 2018.055
Product Overview
LEIPOLE F3E-12038S/B-230 is a high-airflow square axial cooling fan from the 119.5×119.5mm series. It is designed for stable forced heat dissipation and internal airflow circulation for medium-sized industrial electrical enclosures, power equipment and electronic devices. Its optimized axial airflow structure efficiently expels accumulated internal heat, stabilizes component operating temperature and prolongs the service lifespan of enclosed electronic hardware.
Core Product Features
- Dual optional sleeve & ball bearing structure, supporting flexible selection of service life and operational wear performance
- Compliant with IEC61858 Grade B insulation standard, providing reliable electrical safety protection for industrial equipment operation
- Unified compact overall dimension of 119.5×119.5mm, universally adaptable to standard industrial cabinet and device internal mounting positions
- Optimized aerodynamic blade profile achieves balanced high airflow output and steady continuous running performance
- Qualified safety certification with robust structural durability, supporting 24/7 unattended continuous industrial operation duty
Electrical & Operational Attributes
- Rated power input: AC 230V, 50/60Hz
- Rated current: 0.12/0.10A, rated power consumption: 20/15W
- Rated rotational speed: 2500/2700 r/min, free-blowing airflow capacity: 145/160m³/h
- Operational noise level: 50/52dB, suitable for industrial workshop and equipment room ventilation deployment
- Reliable insulation performance adapting to diversified industrial electronic device thermal management scenarios
Applicable Industries
This axial cooling fan meets heat dissipation demands across extensive industrial application scenarios:
- Industrial control cabinet and low-voltage electrical enclosure internal cooling
- Power supply, inverter and industrial power electronic device thermal evacuation
- Automation machinery and production equipment internal component heat dissipation
- Communication server cabinet and power system auxiliary ventilation cooling
- Industrial electronic equipment cooling system retrofitting and original fan upgrading projects
| Model | F3E-12038S/B-230 |
| Order number | 2018.053/055 |
| Motor type | — |
| Bearing | Sleeve/Ball |
| Voltage (V) | AC 230 |
| Frequency (Hz) | 50/60 |
| Current (A) | 0.12/0.10 |
| Power (W) | 20/15 |
| Speed (r/min) | 2500/2700 |
| Air Flow (m³/h) | 145/160 |
| Noise (dB) | 50/52 |
| Certification | CCC |
| Weight (g) | 550 |
