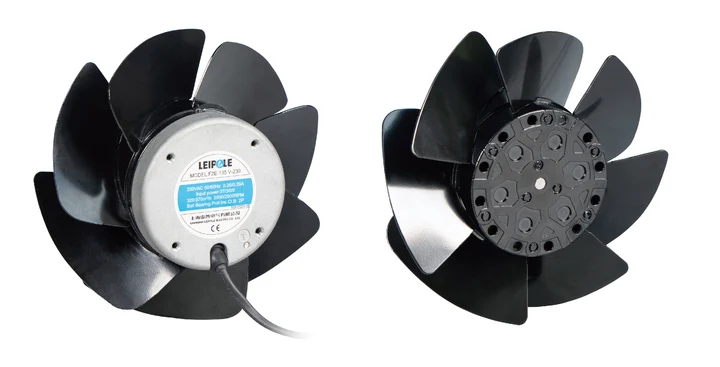

LEIPOLE F2E-135.V 135x55mm Series High Airflow Axial Cooling Fan, 230V AC
Ø135x55mm high-airflow industrial axial fan with ball bearing, 230V AC input, 320-370m³/h airflow, anti-corrosion die-cast aluminum frame, IEC Grade B insulation, stable continuous operation for heavy-load industrial heat dissipation.
- Part number: F2E-135.V
- Order code: 2018.074
Product Overview
LEIPOLE F2E-135.V is a high-airflow industrial axial cooling fan from the Ø135x55mm series. It is engineered for intensive forced heat dissipation and stable airflow circulation for large industrial electrical enclosures, power equipment and heavy-duty electronic devices. Its robust structure and high-capacity airflow design efficiently expels accumulated internal heat and maintains stable operating conditions for enclosed industrial components.
Core Product Features
- Die-cast aluminum alloy frame with black anti-corrosion surface treatment, delivering excellent structural durability and environmental corrosion resistance
- Premium ball bearing structure, ensuring low operational wear, long service life and stable continuous running performance
- Compliant with IEC61858 Grade B insulation standard, providing reliable electrical safety protection for industrial equipment operation
- Dedicated high-airflow blade design for heavy heat-load industrial thermal management scenarios
- Full qualified safety certifications with robust mechanical performance supporting long-term unattended 24/7 industrial continuous operation
Electrical & Operational Attributes
- Rated power input: AC 230V, 50/60Hz
- Matched motor model: M2E07201-AB
- Rated current: 0.26/0.20A, rated power consumption: 37/36W
- Rotational speed: 2600/2900 r/min, free-blowing airflow capacity: 320/370m³/h
- Operational noise level: 48/52dB
- Net weight of the unit: 940g
Applicable Industries
This high-airflow axial fan meets intensive thermal management demands across wide industrial application scenarios:
- Large industrial control cabinet and heavy-duty electrical enclosure internal cooling
- High-power inverter, power supply and industrial power equipment heat evacuation
- Heavy automation machinery and production line device internal heat dissipation
- Industrial frequency converter and energy storage equipment ventilation cooling
- Industrial thermal system retrofitting and high-load cooling system upgrading projects
| Model | F2E-135.V |
| Order number | 2018.074 |
| Motor type | M2E07201-AB |
| Bearing | Ball |
| Voltage (V) | AC 230 |
| Frequency (Hz) | 50/60 |
| Current (A) | 0.26/0.20 |
| Power (W) | 37/36 |
| Speed (r/min) | 2600/2900 |
| Air Flow (m³/h) | 320/370 |
| Noise (dB) | 48/52 |
| Certification | CCC, cURus |
| Weight (g) | 940 |
