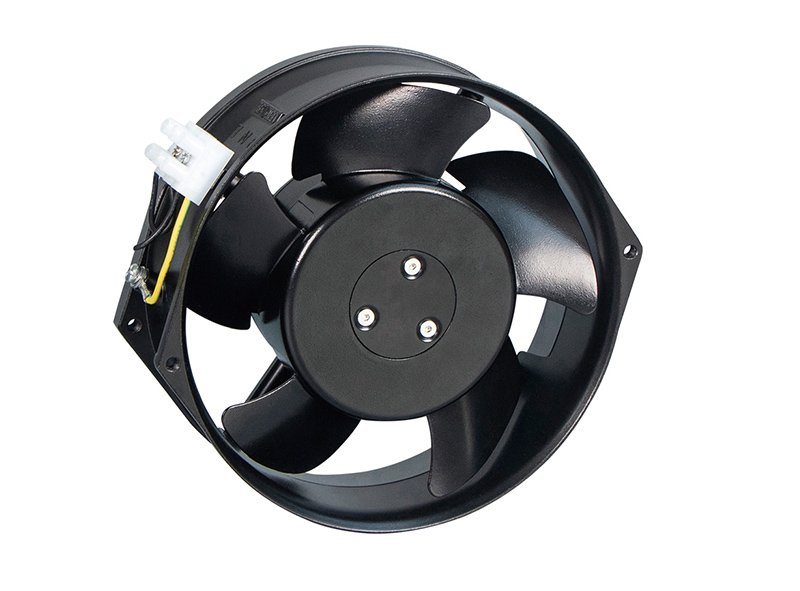

LEIPOLE F2E-160B-230 162x55mm Series High Airflow Axial Cooling Fan, 230V AC
162x55mm high-airflow industrial axial fan with ball bearing, 230V AC input, 370-375m³/h airflow, anti-corrosion die-cast aluminum frame, IEC Grade B insulation, stable continuous operation for heavy-load industrial heat dissipation.
- Part number: F2E-160B-230
- Order code: 2018.076
Product Overview
LEIPOLE F2E-160B-230 is a high-airflow industrial axial cooling fan from the 162x55mm series. It is engineered for intensive forced heat dissipation and stable airflow circulation for large industrial electrical enclosures, high-power equipment and heavy-duty electronic devices. Its robust structural design efficiently expels accumulated internal heat and maintains steady operating conditions for enclosed industrial components.
Core Product Features
- Die-cast aluminum alloy frame with black anti-corrosion surface treatment, providing excellent structural durability and environmental corrosion resistance
- Premium ball bearing structure, ensuring low operational wear, long service life and stable continuous running performance
- Compliant with IEC61858 Grade B insulation standard, providing reliable electrical safety protection for industrial equipment operation
- Matched dedicated motor model: M2E07202B-AB, optimized for heavy heat-load industrial thermal management scenarios
- Qualified safety certification with robust mechanical performance supporting long-term unattended 24/7 industrial continuous operation
Electrical & Operational Attributes
- Rated power input: AC 230V, 50/60Hz
- Rated current: 0.28/0.22A, rated power consumption: 40/33W
- Rotational speed: 2600/2800 r/min, free-blowing airflow capacity: 375/370m³/h
- Operational noise level: 56dB
- Unit net weight: 945g
Applicable Industries
This high-airflow axial fan meets intensive thermal management demands across wide industrial application scenarios:
- Large industrial control cabinet and heavy-duty electrical enclosure internal cooling
- High-power inverter, power supply and industrial power equipment heat evacuation
- Heavy automation machinery and production line device internal heat dissipation
- Industrial frequency converter and energy storage equipment ventilation cooling
- Industrial thermal system retrofitting and high-load cooling system upgrading projects
| Model | F2E-160B-230 |
| Order number | 2018.076 |
| Motor number | M2E07202B-AB |
| Bearing | Ball |
| Voltage (V) | AC 230 |
| Frequency (Hz) | 50/60 |
| Current (A) | 0.28/0.22 |
| Power (W) | 40/33 |
| Speed (r/min) | 2600/2800 |
| Air Flow (m³/h) | 375/370 |
| Noise (dB) | 56 |
| Certification | CCC |
| Weight (g) | 945 |
