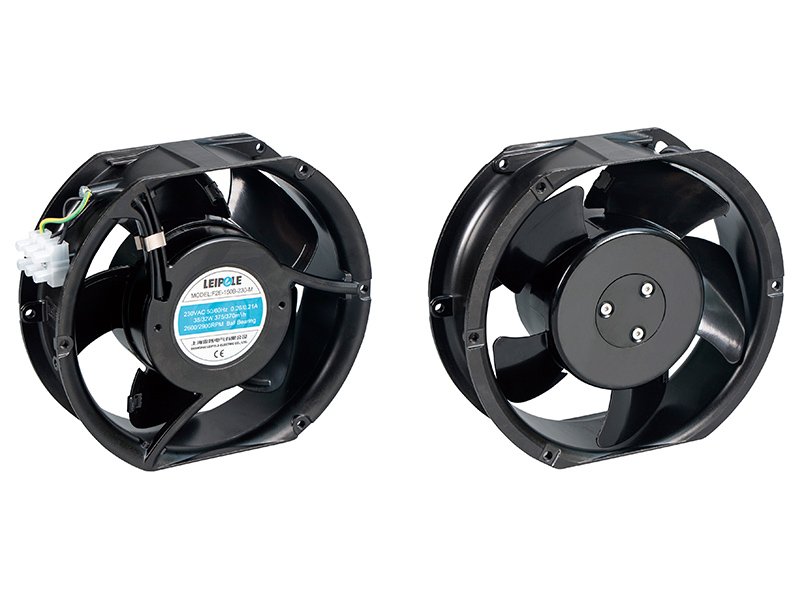

LEIPOLE F2E-150B-230-M 150x52mm Series High Airflow Axial Cooling Fan, 230V AC
150x52mm industrial high-airflow axial fan with ball bearing, 230V AC input, 370-375m³/h airflow, anti-corrosion die-cast aluminum frame, IEC Grade B insulation, stable continuous operation for heavy-load industrial heat dissipation.
- Part number: F2E-150B-230-M
- Order code: 2018.075
Product Overview
LEIPOLE F2E-150B-230-M is a high-airflow industrial axial cooling fan belonging to the 150x52mm series. It is engineered for intensive forced heat dissipation and stable airflow circulation for large industrial electrical enclosures, high-power equipment and heavy-duty electronic devices. Its robust structural design efficiently expels accumulated internal heat and maintains steady operating conditions for enclosed industrial components.
Core Product Features
- Die-cast aluminum alloy frame with black anti-corrosion surface treatment, providing outstanding structural durability and environmental corrosion resistance
- Premium ball bearing structure, ensuring low operational wear, extended service life and stable long-duration continuous running performance
- Compliant with IEC61858 Grade B insulation standard, delivering reliable electrical safety protection for industrial equipment operation
- Matched dedicated motor model: M2E07202B-AB, optimized for heavy heat-load industrial thermal management scenarios
- Qualified safety certification, with robust mechanical performance supporting unattended 24/7 continuous industrial operation duty
Electrical & Operational Attributes
- Rated power input: AC 230V, 50/60Hz
- Rated current: 0.26/0.21A, rated power consumption: 38/32W
- Rotational speed: 2600/2900 r/min, free-blowing airflow capacity: 375/370m³/h
- Operational noise level: 58dB
- Unit net weight: 946g
Applicable Industries
This high-airflow axial fan meets intensive thermal management demands across extensive industrial application scenarios:
- Large industrial control cabinet and heavy-duty electrical enclosure internal cooling
- High-power inverter, frequency converter and industrial power equipment heat evacuation
- Heavy automation machinery and large production device internal component heat dissipation
- Energy storage equipment and industrial power system auxiliary ventilation cooling
- Industrial thermal system retrofitting and high-load cooling system upgrading projects
| Model | F2E-150B-230-M |
| Order number | 2018.075 |
| Motor number/type | M2E07202B-AB |
| Bearing | Ball |
| Voltage (V) | AC 230 |
| Frequency (Hz) | 50/60 |
| Current (A) | 0.26/0.21 |
| Power (W) | 38/32 |
| Speed (r/min) | 2600/2900 |
| Air Flow (m³/h) | 375/370 |
| Noise (dB) | 58 |
| Certification | CCC |
| Weight (g) | 946 |
Other models in this series
- F2E-120S-115/F2E-120B-115
- F2E-120B-230-B
- F3E-12038S/B-230
- F2E-135.V
- F2E-150S-230/F2E-150B-230
- F2E-150S-115/F2E-150B-115
- F2E-160B-230
- F2E-162B-230
- F2E-162B-115
- F2E-170B-230
- F2E-170B-115
- F2E-200B-230
Compare all models in Axial fans
Related ranges: EC fans, DC fans, Fan Filters
