Power Distribution Systems in Industrial Environments: What You Need to Know?
Is unreliable power causing headaches in your facility?
Worried about downtime, equipment damage, or safety risks?
Let’s shed some light on this critical infrastructure.
An industrial power distribution system safely delivers electrical energy from a source to various loads. Key components include transformers, switchgear, busbars, and protective devices. It ensures reliable, efficient power for machinery and controls.
Choosing and implementing the right power distribution system (PDS) is crucial for any industrial operation. Frankly, it can seem daunting with all the options and technical jargon. We’ve spent over fifteen years working with these systems, designing them for various factories and facilities, troubleshooting issues, and seeing firsthand what works and what doesn’t. Getting the power distribution right is foundational to everything else. Stick around, and I’ll guide you through the essentials based on my real-world experience.
Architectural Foundations
Core Components of Industrial Power Distribution Systems
Understanding the core components is the first step. Think of it like the foundation of a building – everything else relies on it being strong and well-desgned. In our experience, a solid power distribution system starts with selecting the right building blocks. You can’t just pick parts randomly; they need to work together seamlessly. These typically include:
- Transformers: Absolutely essential for stepping voltage up or down. Power often arrives at your facility at a high voltage, which is efficient for transmission but way too high for most machinery and control systems. Transformers reduce it to usable levels. I remember a project where selecting the wrong transformer tap led to persistent under-voltage issues for sensitive controls. It highlighted the need for careful specification. Companies like LEIPOLE offer various control transformers, such as their JBK series, engineered specifically for stable voltage regulation in demanding industrial settings.

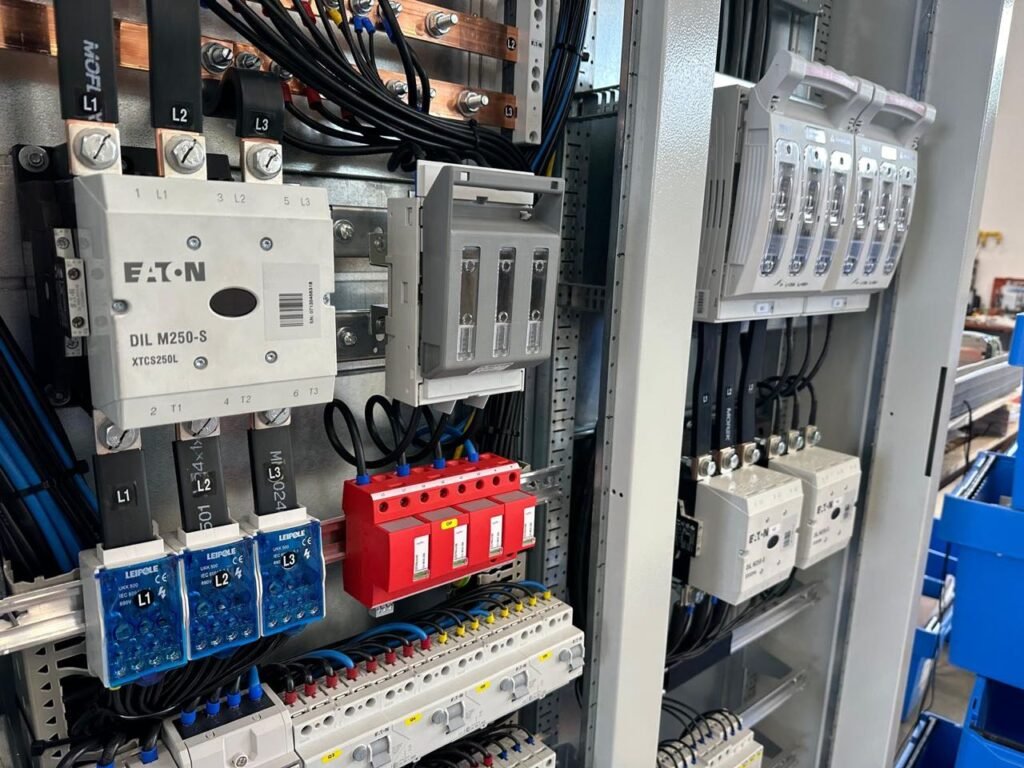

- Busbar Systems: Instead of running countless thick cables, busbars offer a much more efficient, organized, and compact way to distribute significant power, especially within control panels and switchgear assemblies. I’ve seen LEIPOLE’s busbar systems drastically simplify complex panel layouts. They emphasize features like high conductivity using quality materials to minimize power loss and space-saving designs.
- Power Distribution Blocks (PDBs): These components provide a safe and structured way to split a primary power source into multiple smaller branch circuits. It makes wiring much cleaner and easier to manage. Modular PDBs, like the UKK and JUKH series from LEIPOLE, are particularly useful because they allow for easy expansion or modification if your needs change. You can often stack them or connect them in parallel easily.
Selecting the right combination of these components depends heavily on factors like the total power required, the types of loads being served (motors have different needs than computers), the physical environment, and mandatory safety standards like UL or IEC.
Component | Function | Key Considerations | LEIPOLE Example/Relevance |
Transformers | Step voltage up or down. | Capacity (kVA), Voltage Ratings, Efficiency, Cooling Method | JBK Series Control Transformers |
Busbar Systems | Conduct and distribute power within enclosures/switchboards. | Current Rating, Material (Copper/Aluminum), Configuration, IP Rating | High Conductivity, Compact Design Busbars |
Power Distribution Blocks | Split main power feed into multiple circuits safely. | Current Rating, Number of Poles, Wire Size Range, Modularity | UKK, JUKH, UK Series PDBs |
Vertical Market Analysis
Tailored Power Solutions Across Industries
Power distribution isn’t a one-size-fits-all puzzle. Different industries have vastly different operational demands and environmental conditions, which directly impact their power system needs. I’ve worked across various sectors, and the specific challenges are always unique:
- Manufacturing & Automation: Factories are the classic example. They depend on absolutely consistent power for assembly lines, robotic arms, CNC machines, and sophisticated control systems. Any unexpected downtime translates directly into lost production and revenue. So, reliability, robustness against electrical noise, and the ability to quickly isolate faults are paramount. LEIPOLE actively supports this sector, providing reliable components like busbars, transformers, and PDBs designed for low-voltage systems and control cabinets commonly found here.
- Data Centers: These facilities are power hogs. They consume enormous amounts of electricity and demand near-perfect reliability – think 99.999% uptime, often achieved through multiple redundant power feeds and Uninterruptible Power Supplies (UPS). Efficient power distribution is also critical here to manage operational costs and the significant heat generated by densely packed servers.
- Renewable Energy (Wind/Solar): Generating power from wind or sun involves collecting energy from variable sources and converting it (often from DC to AC) for grid connection or storage. The power distribution system must handle these fluctuations, often operate outdoors in harsh conditions, and meet specific grid interface requirements. Electrical cabinets in wind turbines, for instance, collect, distribute, and control the generated power.
- Energy Storage Systems: Battery storage, whether grid-scale or smaller, needs a robust power distribution system capable of handling very high charge and discharge currents safely and efficiently. Managing the power flow without excessive losses is vital for the system’s overall performance and the lifespan of the expensive batteries. Thermal management is also closely linked, as power components generate heat during high current flow. [^1]
- Telecommunications: This industry relies on highly dependable DC power systems, almost always backed up by batteries, to ensure phone lines, cell towers, and internet infrastructure remain operational during grid outages.
Tailoring the PDS means choosing components specifically rated for the application’s environment (temperature extremes, dust, moisture, corrosive elements) and the electrical characteristics of the loads (e.g., high inrush currents from motors versus sensitive electronics).
Industry | Key Power Challenge | Tailored Solution Approach | Example Components/Considerations |
Manufacturing | High reliability, motor loads, complex controls | Robust circuit protection, organized panel distribution, noise filtering | Heavy-duty breakers, Busbars, PDBs, Transformers |
Data Centers | Extreme reliability (uptime), high density, efficiency | Redundant A/B feeds, UPS, high-efficiency busways, remote monitoring | UPS, High-Ampacity Busbars, Smart PDBs, Cooling |
Renewable Energy | Variable sources, grid integration, outdoor env. | Specialized switchgear, step-up transformers, DC combiners, weatherproofing | Inverters, DC Combiner Boxes, Grid-Tie Breakers |
Energy Storage | High charge/discharge currents, safety, efficiency | DC contactors, heavy-duty busbars, precise monitoring, fusing | High-Current Fuses/Breakers, DC Busbars, BMS |
Telecommunications | High reliability (DC power), battery backup | Rectifiers, dedicated DC distribution panels, battery monitoring | DC Breakers, DC PDBs, Rectifiers, Batteries |
Technology Evolution
Emerging Trends in Power Distribution Infrastructure
The world of power distribution isn’t standing still. It’s constantly evolving, driven by demands for greater efficiency, reliability, safety, and integration with new technologies. Staying aware of these trends is important for making future-proof decisions. Based on what I’m seeing in the field and at industry events, here are some key trends shaping the future:
- Smart Power Distribution: This is a big one. We’re seeing more integration of sensors and communication capabilities directly into PDS components. This allows for real-time monitoring of energy consumption, voltage stability, current loads, and even temperature at critical points. This wealth of data enables predictive maintenance (fixing issues before they cause failure), smarter load management to avoid overloads, and much faster diagnosis when faults do occur.
- Increased Efficiency: Energy costs are always a concern. Manufacturers are responding with new materials and optimized designs to reduce energy losses within the distribution system itself. For example, using high-conductivity copper alloys in busbars, a focus for companies like LEIPOLE, minimizes resistive losses (I²R losses), meaning less wasted energy and less heat generated. [^4] More efficient transformer designs also play a significant role.
- Modularity and Flexibility: Industrial needs change. Facilities expand, production lines get reconfigured. Modern PDS designs are embracing modularity to cope with this. Think of plug-and-play busbar systems or stackable PDBs (like LEIPOLE’s UKK series [^2]) that allow you to easily add circuits or change configurations without major rewiring or downtime. I recall a food processing plant expansion where a modular busbar system saved weeks of installation time compared to traditional cabling.
- Enhanced Safety: Protecting personnel from electrical hazards, particularly arc flash incidents, is receiving much greater attention. Technologies like faster-acting circuit breakers, arc-resistant switchgear construction, remote racking mechanisms, and better monitoring systems all contribute to reducing risks during operation and maintenance.
- Integration with Renewables and Storage: As more facilities install solar panels or battery storage, the PDS needs to intelligently manage these distributed energy resources (DERs). This involves bidirectional power flow capabilities, specialized protection schemes, and controls to enable microgrids or optimize energy use based on grid prices or generation availability.
These advancements aren’t just buzzwords; they offer real, tangible benefits in terms of operational reliability, lower long-term costs, and improved safety standards in today’s demanding industrial facilities.
Trend | Description | Benefit | Relevance to Industry |
Smart PDS / IoT | Real-time monitoring (V, I, T, P) via embedded sensors & communication. | Predictive maintenance, energy optimization, faster fault ID | All industries benefit from improved uptime & efficiency. |
Increased Efficiency | Use of better materials (e.g., high-conductivity busbars [^4]), optimized designs. | Lower operating costs (less wasted energy), reduced heat generation | Energy-intensive industries (Data Centers, Mfg). |
Modularity / Flexibility | Components designed for easy addition, removal, or reconfiguration (e.g., PDBs [^2]). | Scalability, faster deployment, easier maintenance/upgrades | Industries with dynamic layouts or capacity needs. |
Enhanced Safety | Technologies to mitigate hazards like arc flash (faster breakers, design). | Improved personnel safety, reduced equipment damage risk | All industries, especially high-energy applications. |
DER Integration | Accommodating & managing distributed energy (solar, storage, generators). | Increased resilience, grid flexibility, potential cost savings | Facilities implementing renewables or microgrids. |
Conclusion
Choosing the right power distribution system is fundamental for industrial success. Understanding components, tailoring solutions to your specific industry needs, and keeping an eye on emerging technologies ensures safe, reliable, and efficient operations for years to come.
