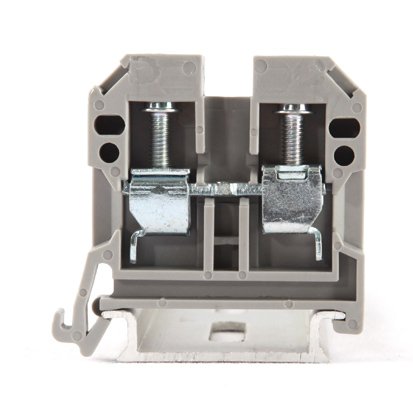

LEIPOLE JXB-6/35/JXB-6/35-BU screw connection terminal block, DIN rail mount, 0.2–6mm² cross section, industrial wiring component

LEIPOLE JXB-6/35/JXB-6/35-BU Terminal Blocks, Industrial Electrical Connection, 44A 750V

Request a quoteWhatsApp us

LEIPOLE JXB-6/35/JXB-6/35-BU terminal blocks offer stable industrial electrical connections with 44A/750V ratings, 0.2–6mm² wire capacity, UL 94 V0 flame resistance and dependable screw connections. They fit standard DIN rails and are widely used in manufacturing, automation and power distribution setups.

  • Part number: JXB-6/35/JXB-6/35-BU
  • Order code: 1011.070/1011.077

Product Overview

LEIPOLE JXB-6/35/JXB-6/35-BU terminal blocks are industrial electrical connection components built to IEC 60947-7-1 standards. They use a stable screw connection design with a compact form factor, delivering consistent performance for power and signal wiring in industrial electrical systems.

Key Features & Advantages

  • Rated 44A/750V, supports wire cross-section range of 0.2mm² to 6mm²
  • UL 94 V0 inflammability class for reliable operational safety
  • Standard screw connection ensures secure contact and long-term stability
  • Compatible with NS 35/7.5, NS 35/15, NS 32 DIN rail types for flexible installation
  • Supports matching accessories including end covers, jumper bars, end clamps and marking labels

Typical Applications

  • Manufacturing machinery electrical connection systems
  • Industrial automation control cabinets
  • Power distribution units and electrical enclosures
  • Electrical control panels for industrial equipment
  • General industrial wiring and circuit management
Model JXB-6/35 / JXB-6/35-BU
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-1
Order Number 1011.070 / 1011.077
Size T8×H45×W45
Rated Current/Rated Voltage 44A / 750V
Cross Section 0.2~6mm²
Connection Type Screw Connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
