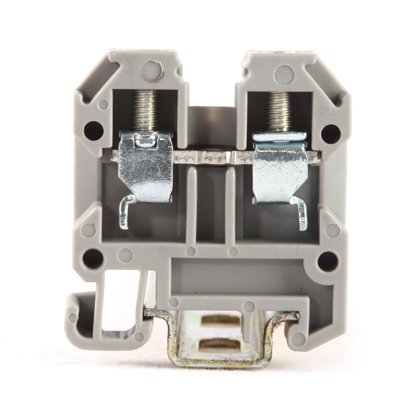

LEIPOLE JXB-4/15 small screw connection terminal block, DIN rail mount, 0.2–4mm² cross section, compact industrial wiring component

LEIPOLE JXB-4/15 Mini Terminal Block, Industrial Electrical Connection, 10A 380V

LEIPOLE JXB-4/15 mini terminal block provides stable compact industrial connections with 10A/380V ratings, 0.2–4mm² wire capacity, UL 94 V0 flame resistance and reliable screw connection. It fits NS 35/15 DIN rails for small-space electrical wiring.

  • Part number: JXB-4/15
  • Order code: 1011.087
Add to cart

Product Overview

LEIPOLE JXB-4/15 is a mini-sized industrial electrical terminal block built to IEC 60947-7-1 standards. It uses a stable screw connection structure and compact dimensions, providing reliable wiring for small-scale industrial electrical control systems.

Key Features & Advantages

  • Rated 10A/380V, supports wire cross-section range from 0.2mm² to 4mm²
  • UL 94 V0 inflammability class for safe operation in industrial environments
  • Compact mini design saves installation space in small enclosures
  • Standard screw connection ensures stable electrical contact and long service life
  • Compatible with NS 35/15 DIN rail type for targeted installation
  • Supports matching accessories including end covers, jumper bars, end clamps and marking labels

Typical Applications

  • Miniature industrial electrical control modules
  • Small automation equipment wiring systems
  • Compact power distribution terminal boxes
  • Light-duty electrical control panels
  • Space-restricted small industrial wiring projects
Product Attribute Value
JXB-4/15 Parameters
Model JXB-4/15
Product Type Small Terminal
Certification CE, CQC
Flammability Class UL 94 V0
Connection Standard IEC 60947-7-1
Order Number 1011.087
Size T6×H31×W28
Rated Current/Rated Voltage 10A/380V
Cross Section 0.2~4mm²
Connection Type Screw Connection
Din Rail Type NS 35/7.5, NS 35/15, NS 32
