LEIPOLE JUKH-125/250 modular power distribution block for industrial electrical panels

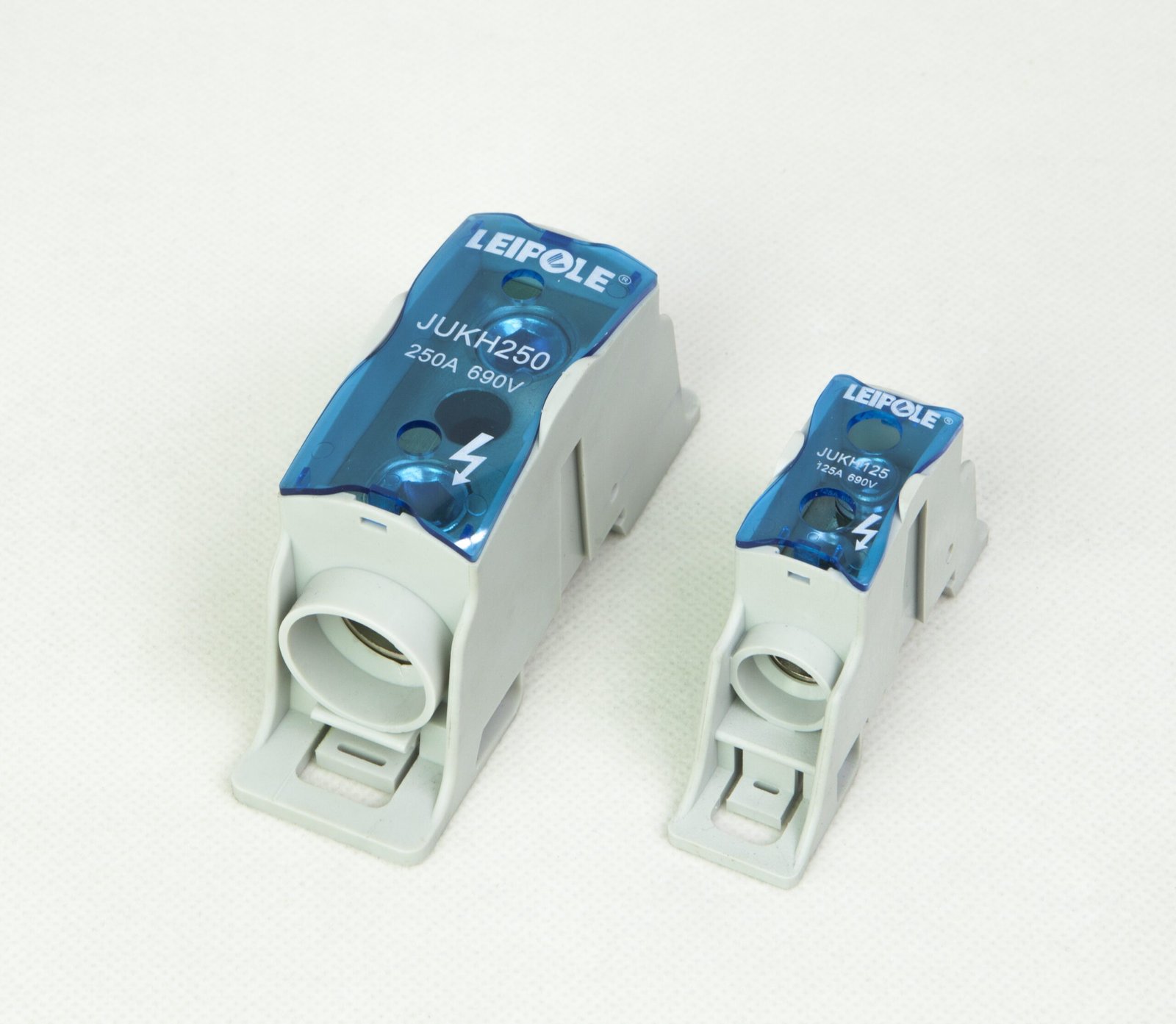

LEIPOLE JUKH-125/250 Power Distribution Block, Industrial Power Connection, 125A/250A

Name: LEIPOLE JUKH-125/250 Power Distribution Block, Industrial Power Connection, 125A/250A
Brand: LEIPOLE
Availability: InStock

Request a quote WhatsApp us

LEIPOLE JUKH-125/250 power distribution block with CE certification, IP20 rating, and 125A/250A rated current. It features stackable modular design, standard installation holes, and wide metric wiring ranges for industrial power distribution setups.

Add to cart

Key Specifications

This LEIPOLE JUKH-125/250 power distribution block carries CE certification and operates at IP20 protection class. It provides two rated current options: 125A under IEC standards and 150A under UL/CSA standards, as well as 250A under IEC standards and 255A under UL/CSA standards.

The Icw KA rms 1s value reaches 4.2 for JUKH-125 and 14.4 for JUKH-250. The IPk KA value is 25 for JUKH-125 and 42 for JUKH-250. It supports a rated impulse voltage Ui of 1000V AC/DC per IEC and a rated voltage Vin of 600V per UL.

Installation & Wiring

The product comes with fixed installation hole dimensions: 61.6mm for JUKH-125 and 82.9mm×7.4mm for JUKH-250.

It supports metric wiring ranges of 10…35mm² for JUKH-125 and 35…120mm² for JUKH-250. The modular structure allows single modules to be stacked and combined freely, supporting flexible configuration for multipole power distribution applications.

Applications

This power distribution block is designed for power distribution tasks in industrial electrical enclosures. It can be applied in automation equipment and various conventional power distribution systems, providing stable connection and shunting for electrical circuits.

</> </tbody>

Product Attribute	Value
JUKH-125/250 Parameters
Model	JUKH-125/250
Certification	CE
IP Rating	IP20
Order Number	5012.126 / 5012.127
Rated Current (IEC/UL) – 125A	I=125A IEC, I=150A UL/CSA
Rated Current (IEC/UL) – 250A	I=250A IEC, I=255A UL/CSA
Impulse withstand voltage (Ui)	1000V AC/DC IEC
Insulation voltage (Vin UL)	600V UL
Rated short-time withstand current (Icw kA rms 1s) – 125A	4.2
Rated short-time withstand current (Icw kA rms 1s) – 250A	14.4
Rated peak withstand current (IPk kA) – 125A	25
Rated peak withstand current (IPk kA) – 250A	42
Installation Hole – 125A	61.6mm (2.43″)
Installation Hole – 250A	82.9mm × 7.4mm (3.26″ × 0.29″)
Special Feature	Modular individual modules are stackable for multipole applications
