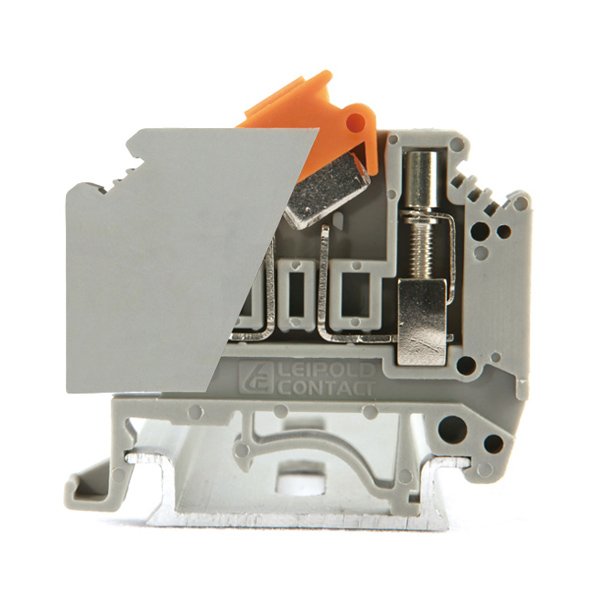

LEIPOLE JMTK-P/P disconnect terminal block screw connection DIN rail mount industrial wiring unit

LEIPOLE JMTK-P/P Disconnect Terminal Block Industrial Wiring 16A 0.2-4mm²

Name: LEIPOLE JMTK-P/P Disconnect Terminal Block Industrial Wiring 16A 0.2-4mm²
Brand: LEIPOLE
SKU: JMTK-P/P

Request a quote WhatsApp us

LEIPOLE JMTK-P/P is a DIN rail disconnect terminal block with screw connection, 16A rated current, 0.2-4mm² wire range, UL 94 V0 flammability class and IEC 60947-7-1 compliance for industrial control circuit use.

Product Overview

LEIPOLE JMTK-P/P is a disconnect terminal block developed for industrial control circuits and power distribution wiring. It complies with IEC 60947-7-1 connection standards and uses screw connection to ensure stable wiring and safe circuit disconnection functions. The product has UL 94 V0 flammability class, suitable for long-term use in electrical cabinets and control systems.

Key Features & Advantages

Complies with IEC 60947-7-1 international industrial connection standards
UL 94 V0 flame retardant material for safe industrial operation
Screw connection provides reliable wire fixation and stable conduction
Equipped with ZB5 Zack strip for standardized wiring installation
Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rail types
Designed for circuit disconnection, maintenance and wiring in light industrial control systems

Typical Applications

Circuit disconnection in small industrial control cabinets
Wiring connection for automation and control equipment
Maintenance circuit setup in factory electrical installations
Control circuit wiring for low-current electrical devices
Industrial control system disconnection and protection
Light industrial and automation equipment wiring systems

Model	JMTK-P/P
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-1
Zack Strip	ZB5
Order Number	1010.061
Size	T5.2×H52×W46
Rated Current/Rated Voltage	16A/800V
Cross Section	0.2~4mm²
Connection Type	screw connection
Din Rail Type	NS 35/7.5, NS 35/15, NS 32
