LEIPOLE JMBK 5/E-Z-PE DIN rail mount PE terminal block, screw connection for industrial grounding safety wiring

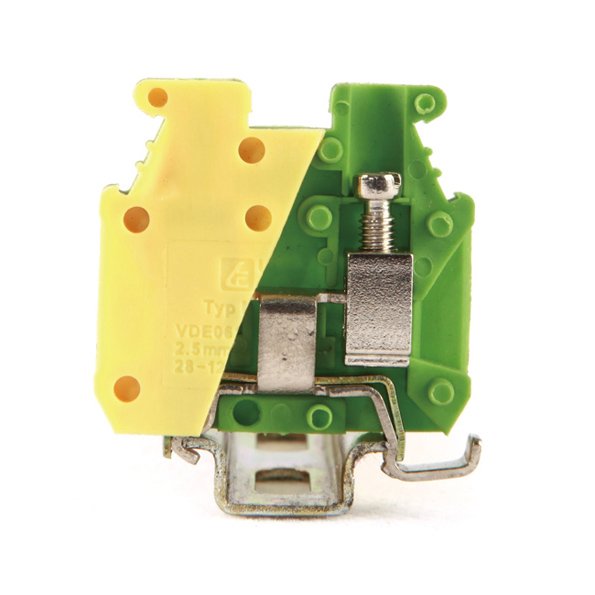

LEIPOLE JMBK 5/E-Z-PE PE Grounding Terminal Block

Name: LEIPOLE JMBK 5/E-Z-PE PE Grounding Terminal Block
Brand: LEIPOLE
Availability: InStock

LEIPOLE JMBK 5/E-Z-PE is a dedicated protective earth terminal block for industrial scenarios. Adopting screw connection and standard DIN rail design, it provides stable grounding protection, coordinates with conventional control and distribution circuits, and improves overall electrical safety of industrial equipment.

Add to cart

Product Overview

LEIPOLE JMBK 5/E-Z-PE is a dedicated protective earth terminal block with DIN rail installation and screw connection structure. It is specially used for equipment grounding and safety protection in industrial low‑voltage systems, providing reliable earthing connection to protect electrical equipment and operators.

Key Features & Advantages

Professional PE grounding structure for safe and stable earthing
Screw clamping design for firm wire connection
Flame retardant insulating material for industrial environment adaptability
Standard DIN rail mounting, compatible with cabinet modular wiring
Unified series design, matching with other JMBK series terminal blocks

Typical Applications

Industrial control cabinet protective grounding wiring
Automation machinery equipment safety earthing
Low‑voltage distribution panel grounding connection
Electrical enclosure and field device earthing layout
Supporting grounding configuration for industrial wiring systems

Product Attribute	Value
JMBK 5/E-Z-PE Parameters
Model	JMBK 5/E-Z-PE
Certification	CE, CQC
Flammability Class	UL 94 V0
Connection Standard	IEC 60947-7-1
Zack Strip	ZB6
Order Number	1010.073
Size	T6.2×H32×W28
Cross Section	0.2~6mm²
Connection Type	screw connection
