Industrial Ventilation Fan 195m³/h Panel Mount | FK9923.230

Request a quoteWhatsApp us

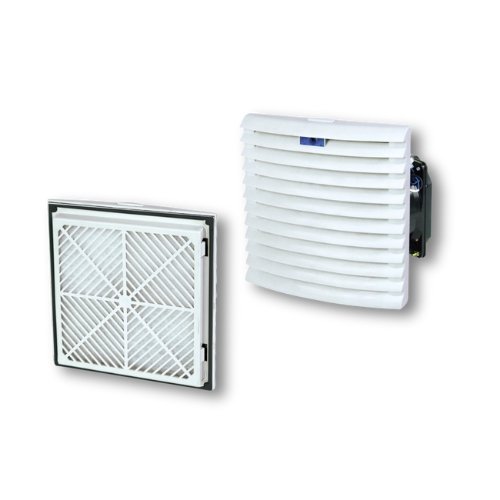

LEIPOLE’s FK99 series fan and filter solutions are a popular choice for electrical cabinet cooling, with a design focused on user experience and efficient performance. This series of products features an innovative front cover design that allows users to easily open the front cover to quickly replace the filter pad. This convenient maintenance method is particularly important for industrial environments where the filter pad needs to be cleaned or replaced regularly due to dust clogging.
  • Part number: FK9923.230
  • Order code: 2023.011
  • Color code: RAL7035

Model selection

Use the model-specific supply, airflow and filter data below. Confirm the fan operating point against enclosure and filter resistance, and use the matching filter media and mounting instructions. Contact technical support for application requirements and model-specific certification.

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Product Attribute Value
1 Part Number FK9923.230
2 Color RAL7035
3 Order Code 2023.011
4 Fan Model F2E-120S-230
5 Rate Voltage 230V AC
6 Air Flow 100/103 m³/h (IP54)
7 Rated Current 0.12/0.10 A
8 Power 20/15 W
9 Motor Type Shaded-pole motor
10 Noise Level 50/52 dB
11 Exit Filter FK9923.300
12 Dimension 204*204 mm
13 Cut-out Size 177x177mm
