LEIPOLE 220FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling

220FLW2HRP/HR centrifugal cooling fan, 230V input voltage, high static pressure, robust shell, used for heat dissipation and ventilation of electrical control cabinets

LEIPOLE 220FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling

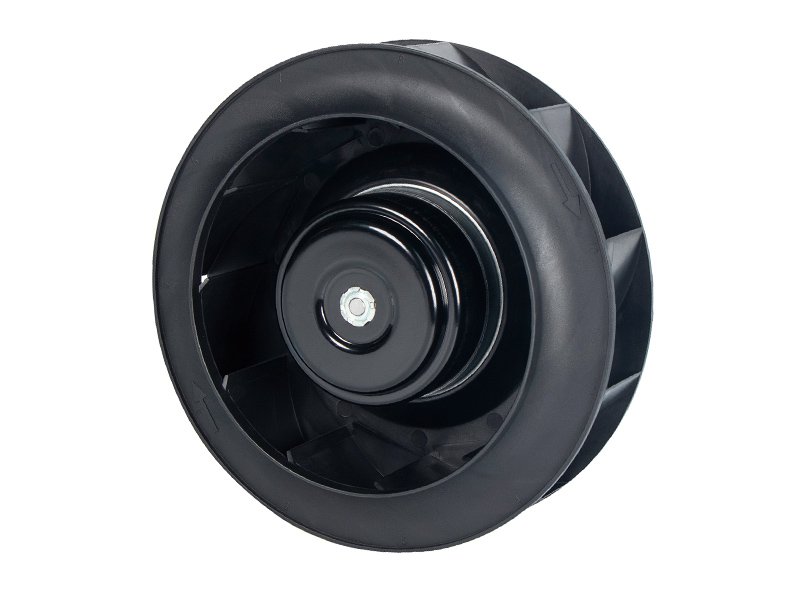

LEIPOLE 220FLW2HR is an EC centrifugal fan with Ø221.5x100mm size, ball bearing, IP44 rating, and Rotation Detection function. It runs on 230V AC with wide frequency range, designed for high-efficiency thermal management in large industrial electrical enclosures and heavy-duty equipment.

Add to cart

Product Overview

LEIPOLE 220FLW2HR is a heavy-duty centrifugal fan from the FLW series. It provides stable forced ventilation and efficient heat dissipation for large industrial electrical enclosures, medium-scale HVAC systems, and high-power electrical equipment. The integrated structure ensures consistent airflow and reliable long-hour operation in demanding industrial environments.

Core Product Features

Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety.

Ball bearing structure reduces operational wear and supports extended service life.

IP44 ingress protection rating, compatible with a wide temperature and humidity range.

Compliant with IEC61858 Grade F insulation standard with stable high withstand voltage performance.

Built-in Rotation Detection (RD) function for real-time operational status monitoring.

CE certified, with wide frequency adaptation for stable power input.

Electrical & Operational Attributes

This fan operates on a 230V AC power supply with wide frequency compatibility for stable performance across different power systems. It runs within a defined power range while delivering strong airflow volume for effective cooling. The unit maintains stable operational noise, with a robust physical profile and controlled weight for secure mounting and long-term integration. It includes reliable insulation and protection functions for safe continuous industrial use.

Applicable Industries

Suitable for internal cooling and ventilation of large industrial control cabinets and electrical enclosures.

Applied in medium‑scale HVAC systems and factory floor air circulation setups.

Used for heat dissipation in high‑power inverters, power supplies, and heavy‑duty industrial electrical equipment.

Provides auxiliary ventilation for data communication equipment and large‑scale cabinet electronic systems.

Ideal for industrial cooling system retrofits and reliable thermal management upgrades.

Widely implemented in manufacturing equipment, automation systems, power distribution, EV chargers, renewable energy facilities, data centers, and electrical thermal management projects.

Product Attribute	Value
220FLW2HR Parameters
Model	220FLW2HR
Order Code	2030.012
Dimensions (WxH)	Ø221.5x100mm
Motor	Capacitor Start Induction Motor
Bearing	Ball
Rated Voltage (V)	230
Frequency (Hz)	50~400
Input Power (W)	115.1 Max: 150
Speed (r/min)	3200
Air Flow (m³/h)	900
Noise (dB)	76
Weight (g)	1848
Function	RD
Operation temp & humidity range	-40℃~+80℃ (temperature) 0%~95% (humidity)
Protection	Motor Internal with automatic recovery thermal protection
Withstand Voltage	AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade	design according to IEC61858 Grade F
Certification	CE
IP rating	IP44
